Central Console Panels

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Central Console Panels

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023-14-6222-AC Hoop Sub-assy Enquire To Order
Photo Part No Description Price (each) Stock
12023-14-6162-AE Casting, Rear Enquire To Order
Photo Part No Description Price (each) Stock
12023-14-6133-AI Side Trim Sub-assy, RH Enquire To Order
Photo Part No Description Price (each) Stock
12023-14-6132-AI Side Trim Sub-assy, RH Enquire To Order
Photo Part No Description Price (each) Stock
12023-14-6025-AA Attachment Plate, cross car beam $167.12 To Order
Photo Part No Description Price (each) Stock
12023-14-6024-AD Attachment Plate, cross car beam $175.24 To Order
Photo Part No Description Price (each) Stock
12023-14-6086-AM Armature Weld Assy $2,085.31 To Order
Photo Part No Description Price (each) Stock
701157-PK Screw & Washer 4.2 x 16 (Pack of 10) $2.63 IN STOCK
Photo Part No Description Price (each) Stock
704764 Nut, Push-on, M4.2 x 1.41 $1.12 To Order
Photo Part No Description Price (each) Stock
703738 SCREW-M6x20 FLAT HD CSK TORX 8.8 FC T18 $1.36 To Order
Photo Part No Description Price (each) Stock
4G43-3L657-AA Screw, M5 x 20, Countersunk, Black $0.35 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.34 IN STOCK

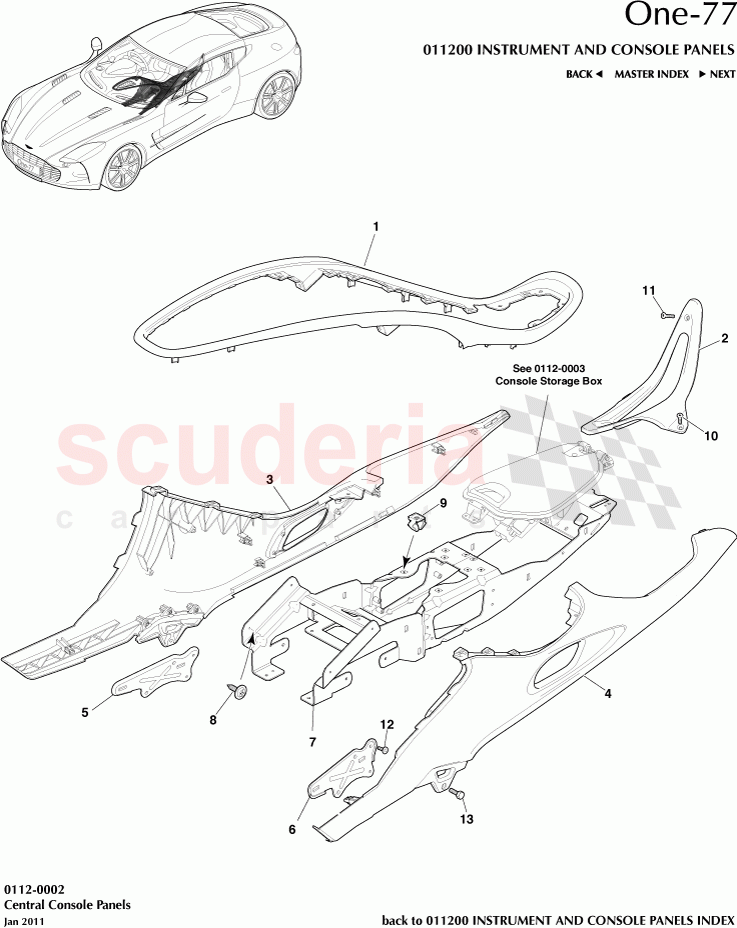

Central Console Panels of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 12023-14-6162-BE
Casting, Rear
Silver 		- 1
PE
 Enquire
- 12023-14-6162-CE
Casting, Rear
Black 		- 1
PE
 Enquire
- 12023-14-6162-DE
Casting, Rear
Blue 		- 1
PE
 Enquire
- 12023-14-6162-EE
Casting, Rear
Grey & Dark Ruthanium 		- 1
PE
 Enquire
- 12023-14-6162-FE
Casting, Rear
Silver & Dark Ruthanium 		- 1
PE
 Enquire
- 12023-14-6162-GE
Casting, Rear
Black & Dark Ruthanium 		- 1
PE
 Enquire
- 12023-14-6162-HE
Casting, Rear
Blue & Dark Ruthanium 		- 1
PE
 Enquire
- 12023-14-6162-JE
Casting, Rear
Grey and Rose Gold 		- 1
PE
 Enquire
- 12023-14-6162-KE
Casting, Rear
Silver and Rose Gold 		- 1
PE
 Enquire
- 12023-14-6162-LE
Casting, Rear
Black and Rose Gold 		- 1
PE
 Enquire
- 12023-14-6162-ME
Casting, Rear
Blue and Rose Gold 		- 1
PE
 Enquire
- 12023-14-6162-NE
Casting, Rear
Grey and High gloss 		- 1
PE
 Enquire
- 12023-14-6162-PE
Casting, Rear
Silver and High gloss 		- 1
PE
 Enquire
- 12023-14-6162-RE
Casting, Rear
Black and High gloss 		- 1
PE
 Enquire
- 12023-14-6162-SE
Casting, Rear
Blue and High gloss 		- 1
PE
 Enquire
1 12023-14-6222-AC
Hoop Sub-assy
Retainers included 		- 1
PE
 Enquire
2 12023-14-6162-AE
Casting, Rear
Grey 		- 1
PE
 Enquire
3 12023-14-6133-AI
Side Trim Sub-assy, RH
Retainers included 		- 1
PE
 Enquire
4 12023-14-6132-AI
Side Trim Sub-assy, RH
Retainers included 		- 1
PE
 Enquire
5 12023-14-6025-AA
Attachment Plate, cross car beam 		$167.12 1
TO
6 12023-14-6024-AD
Attachment Plate, cross car beam 		$175.24 1
TO
7 12023-14-6086-AM
Armature Weld Assy 		$2,085.31 1
TO
8 701157-PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.63 4
IN
9 704764
Nut, Push-on, M4.2 x 1.41 		$1.12 6
TO
10 703738
SCREW-M6x20 FLAT HD CSK TORX 8.8 FC T18 		$1.36 2
TO
12 4G43-3L657-AA
Screw, M5 x 20, Countersunk, Black 		$0.35 4
TO
13 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.34 2
IN
