Heatshield Subsystem Manual

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Heatshield Subsystem MANUAL

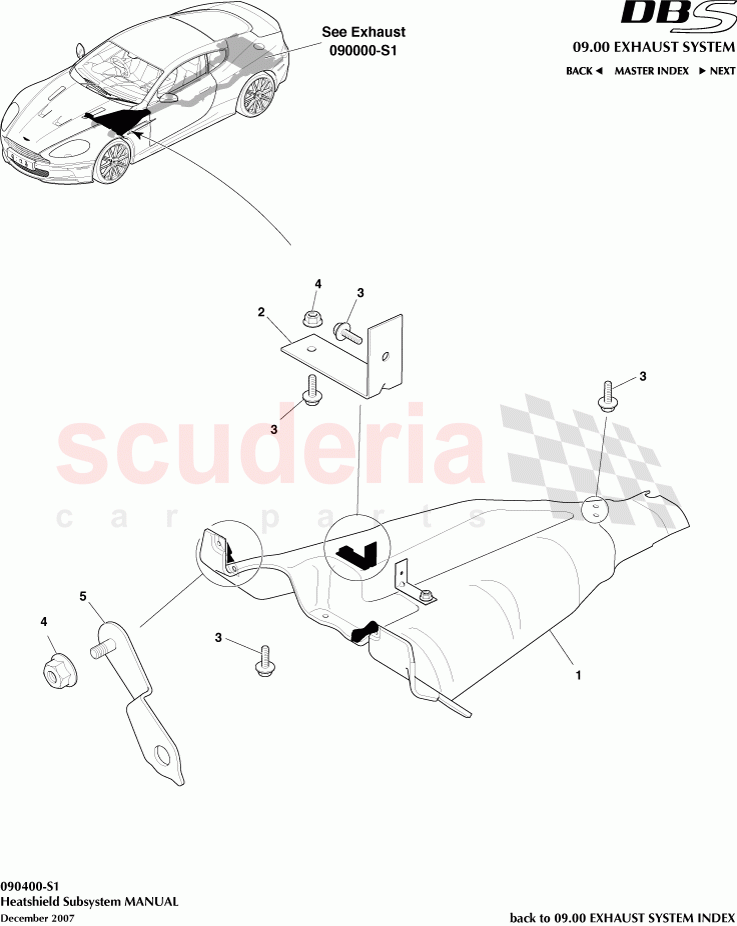

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G43-11398-AF HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT $166.96 To Order
Photo Part No Description Price (each) Stock
4G43-3962-CD HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET $11.90 To Order
Photo Part No Description Price (each) Stock
703752 Screw and Washer, M6 x 16 $1.37 To Order
Photo Part No Description Price (each) Stock
703612 Nut & Washer, M6, HVAC to XCB $0.47 IN STOCK
Photo Part No Description Price (each) Stock
4G43-C5K286-AC EXHAUST/STARTER MOTOR HEATSIELD $132.06 To Order
8G43-6K342-BB CRANK SENSOR HEATSHIELD $47.76 To Order
4G43-3962-ED Bracket, Support $24.63 To Order
...and 1 more part variants. See table on right for more details.
Heatshield Subsystem MANUAL of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G43-11398-AF
HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT 		$166.96 1
TO
2 4G43-3962-CD
HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET 		$11.90 2
TO
3 703752
Screw and Washer, M6 x 16 		$1.37 6
TO
4 703612
Nut & Washer, M6, HVAC to XCB
IN STOCK 		$0.47 4
IN
5 4G43-C5K286-AC
EXHAUST/STARTER MOTOR HEATSIELD 		$132.06 1
TO
5 8G43-6K342-BB
CRANK SENSOR HEATSHIELD 		$47.76 1
TO
5 4G43-3962-ED
Bracket, Support 		$24.63 2
TO
5 HY53-E804349-AA
M6 X 14 SCREW HEX HD
IN STOCK 		$0.71 4
IN
