Rear Brake Sub System

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Rear Brake Sub System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ED232810108 BR DISC &PADS SET-RR $12,646.66 To Order
Photo Part No Description Price (each) Stock
4G432N389AA Screw, M8 x 14, Flat Head Countersunk $0.27 IN STOCK
Photo Part No Description Price (each) Stock
8D332C465CA CAL ASSY RR LH BLK $901.93 To Order
8D332C464CB CAL ASSY RR RH BLK $1,449.10 To Order
Photo Part No Description Price (each) Stock
8D332C562BB BRAKE PAD KIT REAR $1,140.10 IN STOCK
Photo Part No Description Price (each) Stock
8D332C588BA KIT PAD SPRING AND PIN REAR (PER CALIPER) $81.33 To Order
Photo Part No Description Price (each) Stock
4G4332610AA Kit, Dust Boot, Rear Caliper $49.18 To Order
Photo Part No Description Price (each) Stock
4G4333693AA Cap, Bleed Screw $27.67 IN STOCK
4G432C563AA Kit, Bleed Screw $16.83 IN STOCK
Photo Part No Description Price (each) Stock
8D332C564AA Brake Bolt, M12 x 95, Caliper to Knuckle $10.52 To Order
Photo Part No Description Price (each) Stock
8D332B128AB Spacer, caliper to knuckle $201.05 IN STOCK
Photo Part No Description Price (each) Stock
6G332282AC Hose, Rear Wheel Brake $252.91 IN STOCK
Photo Part No Description Price (each) Stock
6G33JYC10088AB E Clip Bowed, Nom 16mm $1.44 IN STOCK
Photo Part No Description Price (each) Stock
6G332D009AB Pad Wear Lead, Rear $59.45 IN STOCK
Photo Part No Description Price (each) Stock
8D332C029AA SHIELD - REAR BRAKE DISC LH $58.79 To Order
8D332C028AA SHIELD - REAR BRAKE DISC RH $58.79 IN STOCK
Photo Part No Description Price (each) Stock
4G4313D026AA Screw, retaining disc shield $0.62 IN STOCK
Photo Part No Description Price (each) Stock
4G439010039 Sensor, Wheel Speed $162.05 IN STOCK
Photo Part No Description Price (each) Stock
4G4313D026BA Screw, wheel speed sensor $1.20 To Order
View All

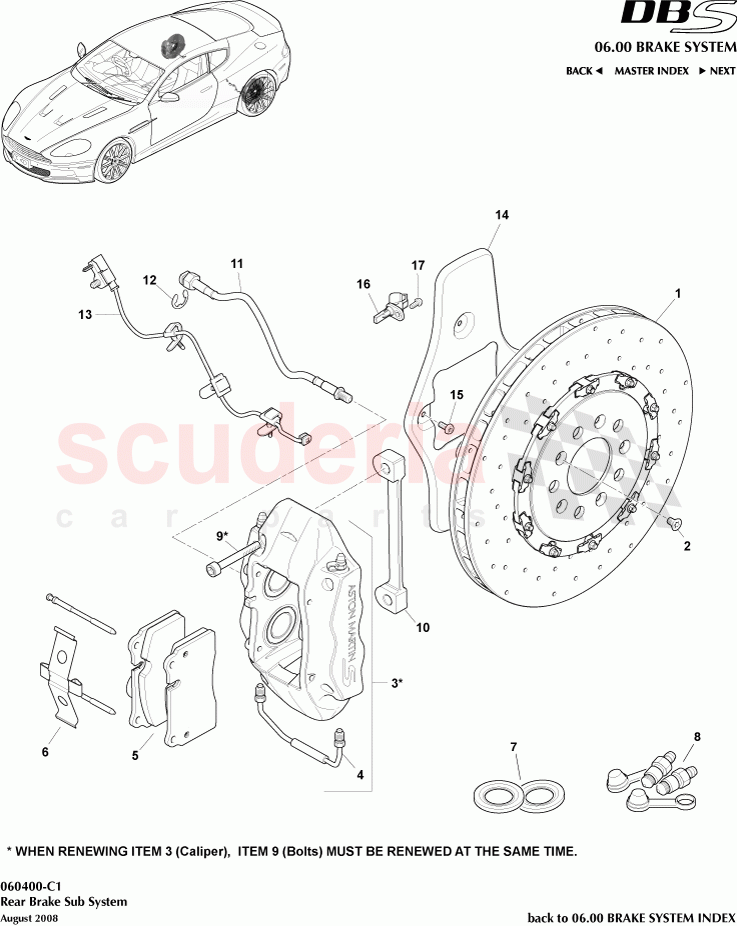

Rear Brake Sub System of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ED232810108
BR DISC &PADS SET-RR 		$12,646.66 2
2 4G432N389AA
Screw, M8 x 14, Flat Head Countersunk
IN STOCK 		$0.27 4
3 8D332C465CA
CAL ASSY RR LH BLK 		$901.93 1
3 8D332C464CB
CAL ASSY RR RH BLK 		$1,449.10 1
5 8D332C562BB
BRAKE PAD KIT REAR
Per axle set
IN STOCK 		$1,140.10 1
6 8D332C588BA
KIT PAD SPRING AND PIN REAR (PER CALIPER)
Per caliper 		$81.33 1
7 4G4332610AA
Kit, Dust Boot, Rear Caliper
Per caliper 		$49.18 2
8 4G4333693AA
Cap, Bleed Screw
Per caliper
IN STOCK 		$27.67 1
8 4G432C563AA
Kit, Bleed Screw
Per caliper
IN STOCK 		$16.83 2
9 8D332C564AA
Brake Bolt, M12 x 95, Caliper to Knuckle 		$10.52 4
10 8D332B128AB
Spacer, caliper to knuckle
IN STOCK 		$201.05 2
11 6G332282AC
Hose, Rear Wheel Brake
IN STOCK 		$252.91 2
12 6G33JYC10088AB
E Clip Bowed, Nom 16mm
IN STOCK 		$1.44 2
13 6G332D009AB
Pad Wear Lead, Rear
IN STOCK 		$59.45 2
14 8D332C029AA
SHIELD - REAR BRAKE DISC LH 		$58.79 1
14 8D332C028AA
SHIELD - REAR BRAKE DISC RH
IN STOCK 		$58.79 1
15 4G4313D026AA
Screw, retaining disc shield
IN STOCK 		$0.62 8
16 4G439010039
Sensor, Wheel Speed
IN STOCK 		$162.05 2
17 4G4313D026BA
Screw, wheel speed sensor 		$1.20 2
