Automatic Transaxle- Differential

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Automatic Transaxle- Differential

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG43-4200-AB DIFFERENTIAL AUTO $12,574.20 To Order
Photo Part No Description Price (each) Stock
4G43-27-10481 Cover, Output Shaft, Differential $277.06 To Order
Photo Part No Description Price (each) Stock
4G43-27-10482 O Ring, 2.62 x 75.87 $12.07 IN STOCK
Photo Part No Description Price (each) Stock
4G43-27-11055 O Ring, 2.62 x 94.92 $27.54 To Order
Photo Part No Description Price (each) Stock
4G43-27-10483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 $74.51 IN STOCK
Photo Part No Description Price (each) Stock
4G43-27-10494 Union, Oil Cooler $45.01 To Order
Photo Part No Description Price (each) Stock
4G43-27-10487 Gasket, Flat, 16 x 22 $0.83 To Order
Photo Part No Description Price (each) Stock
4G43-27-10488 Adaptor, Breather $93.85 To Order
Photo Part No Description Price (each) Stock
4G43-27-10489 PLUG - BREATHER $20.31 To Order
Photo Part No Description Price (each) Stock
4G43-27-10490 Filter, Oil $200.24 To Order
Photo Part No Description Price (each) Stock
4G43-27-10491-PK O RING 2.62 x 20.63 (PACK OF 10) $41.89 To Order
Photo Part No Description Price (each) Stock
4G43-27-10492 Screw, M5 x 12 $3.11 To Order
Photo Part No Description Price (each) Stock
705701 DRAIN PLUG WASHER M22 $79.27 IN STOCK
Photo Part No Description Price (each) Stock
4G43-27-10495 SPEED SENSOR $530.85 To Order
Photo Part No Description Price (each) Stock
4G43-27-10499 Screw, M8 x 25 $2.18 To Order
Photo Part No Description Price (each) Stock
4G43-27-10500 O Ring, 3.53 x 228.19 $81.46 To Order
Photo Part No Description Price (each) Stock
4G43-27-10501 DOWEL $6.06 To Order
Photo Part No Description Price (each) Stock
4G43-27-10502 O Ring, 2.69 x 9.92 $1.76 To Order
Photo Part No Description Price (each) Stock
4G43-27-11158 O Ring, Rear Cover, 3.53 x 123.42 $56.24 To Order

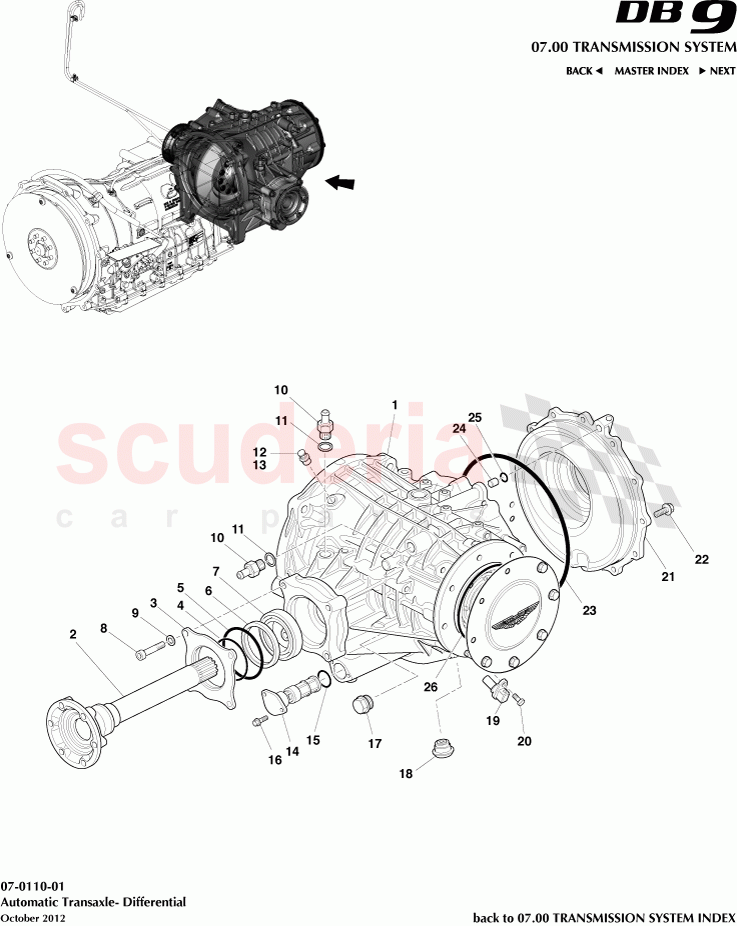

Automatic Transaxle- Differential of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G43-27-10604
Seal, Differential Output Shaft RH, 55 x 70 x 8
IN STOCK 		$73.76 1
IN
- 704349-PK
TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12
12 x 1 Litre 		$286.27 A/R
TO
1 DG43-4200-AB
DIFFERENTIAL AUTO 		$12,574.20 1
TO
3 4G43-27-10481
Cover, Output Shaft, Differential 		$277.06 1
TO
4 4G43-27-10482
O Ring, 2.62 x 75.87
IN STOCK 		$12.07 1
IN
5 4G43-27-11055
O Ring, 2.62 x 94.92 		$27.54 1
TO
6 4G43-27-10483
Seal, Differential Output Shaft, Left, 55 x 72 x 8
IN STOCK 		$74.51 1
IN
10 4G43-27-10494
Union, Oil Cooler 		$45.01 2
TO
11 4G43-27-10487
Gasket, Flat, 16 x 22 		$0.83 2
TO
12 4G43-27-10488
Adaptor, Breather 		$93.85 1
TO
13 4G43-27-10489
PLUG - BREATHER 		$20.31 1
TO
14 4G43-27-10490
Filter, Oil 		$200.24 1
TO
15 4G43-27-10491-PK
O RING 2.62 x 20.63 (PACK OF 10)
10 Per Pack 		$41.89 1
TO
16 4G43-27-10492
Screw, M5 x 12 		$3.11 2
TO
17 705701
DRAIN PLUG WASHER M22
IN STOCK 		$79.27 1
IN
19 4G43-27-10495
SPEED SENSOR 		$530.85 1
TO
22 4G43-27-10499
Screw, M8 x 25 		$2.18 12
TO
23 4G43-27-10500
O Ring, 3.53 x 228.19 		$81.46 1
TO
24 4G43-27-10501
DOWEL 		$6.06 1
TO
25 4G43-27-10502
O Ring, 2.69 x 9.92 		$1.76 1
TO
26 4G43-27-11158
O Ring, Rear Cover, 3.53 x 123.42 		$56.24 1
TO
