Front Suspension Assembly

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Front Suspension Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D33-3K185-AC Knuckle Assy, Front Wheel, LH $370.19 IN STOCK
Photo Part No Description Price (each) Stock
4G43-2B663-AD HUB & BEARING ASSEMBLY, FRONT $553.84 IN STOCK
Photo Part No Description Price (each) Stock
4G43-0783-AA-PK Hub Bolt M10 x 55 x 1.25 (Pack of 5) $25.71 IN STOCK
Photo Part No Description Price (each) Stock
DG43-3084-BA Front Suspension Arm Upper RH $432.54 IN STOCK
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.19 IN STOCK
Photo Part No Description Price (each) Stock
CG43-08024-AA BOLT M12 X 90 HEXAGON HEAD FLANGED $6.29 IN STOCK
Photo Part No Description Price (each) Stock
8G33-3A052-AC FRONT SUSPENSION LOWER ARM RH $862.23 IN STOCK
Photo Part No Description Price (each) Stock
4G43-3B236-BB Bolt M12 Eccentric Front $65.57 To Order
Photo Part No Description Price (each) Stock
4G43-3B237-BB Washer, M12, Eccentric $11.24 IN STOCK
Photo Part No Description Price (each) Stock
4G43-3B236-CB Bolt, M14, eccentric $27.52 To Order
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head $1.31 IN STOCK
Photo Part No Description Price (each) Stock
4G43-3B237-CA Washer, M14 eccentric $10.25 IN STOCK
Photo Part No Description Price (each) Stock
706933 Nut And Washer Set M12 $16.49 IN STOCK

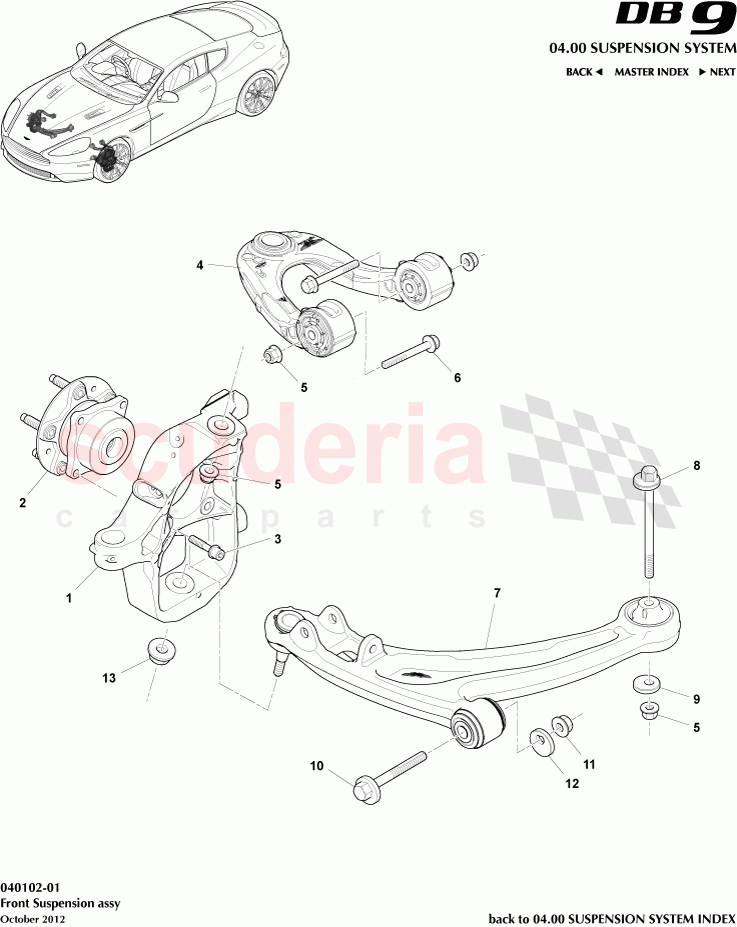

Front Suspension Assembly of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D33-3K186-AC
Knuckle Assy, Front Wheel, RH 		$1,851.62 1
TO
- DG43-3091-BA
Front Suspension Arm Upper LH
IN STOCK 		$432.54 1
IN
- 8G33-3A053-AB
FRONT SUSPENSION LOWER ARM LH 		$795.42 1
TO
1 8D33-3K185-AC
Knuckle Assy, Front Wheel, LH
IN STOCK 		$370.19 1
IN
2 4G43-2B663-AD
HUB & BEARING ASSEMBLY, FRONT
IN STOCK 		$553.84 2
IN
3 4G43-0783-AA-PK
Hub Bolt M10 x 55 x 1.25 (Pack of 5)
5 Per Pack
IN STOCK 		$25.71 8
IN
4 DG43-3084-BA
Front Suspension Arm Upper RH
IN STOCK 		$432.54 1
IN
5 703565
NUT-M12 HEX FLANGE
IN STOCK 		$1.19 8
IN
6 CG43-08024-AA
BOLT M12 X 90 HEXAGON HEAD FLANGED
IN STOCK 		$6.29 4
IN
7 8G33-3A052-AC
FRONT SUSPENSION LOWER ARM RH
IN STOCK 		$862.23 1
IN
8 4G43-3B236-BB
Bolt M12 Eccentric Front 		$65.57 2
TO
9 4G43-3B237-BB
Washer, M12, Eccentric
IN STOCK 		$11.24 2
IN
10 4G43-3B236-CB
Bolt, M14, eccentric 		$27.52 2
TO
11 704596
Nut, M14, Hex Flange Head
IN STOCK 		$1.31 2
IN
12 4G43-3B237-CA
Washer, M14 eccentric
IN STOCK 		$10.25 2
IN
13 706933
Nut And Washer Set M12
IN STOCK 		$16.49 2
IN
