Harness Assembly, Front End & Engine Bay

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Harness Assembly, Front End & Engine Bay

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG43-14290-BD Harness Assembly, Forward Engine Bay, RHD $1,585.25 To Order
Photo Part No Description Price (each) Stock
DG43-15K877-AA Harness Assembly, Front Bumper $186.44 To Order
Photo Part No Description Price (each) Stock
FD33-14290-CA PAS LINK HARNESS $103.23 To Order
Photo Part No Description Price (each) Stock
8G43-9137-AC Harness Assembly, Fan Pack Link $208.29 To Order
Photo Part No Description Price (each) Stock
CD33-14N003-AA Bracket, Inline Connection, RH $115.72 To Order
Photo Part No Description Price (each) Stock
CD33-14N003-BA Bracket, Inline Connection, LH $115.72 To Order
Photo Part No Description Price (each) Stock
702839-PK Screw & Washer M6 x 20 Hex Head (Pack of 20) $5.57 IN STOCK

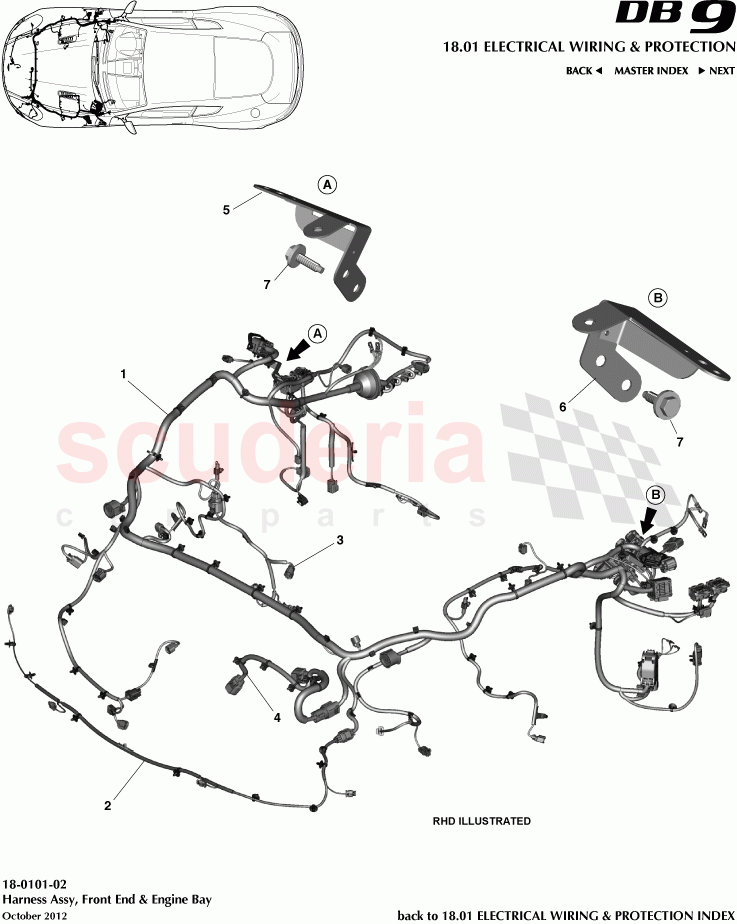

Harness Assembly, Front End & Engine Bay of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG43-14290-AD
Harness Assembly, Forward Engine Bay, LHD 		$1,616.35 1
TO
- FD33-14290-DA
PAS LINK HARNESS 		$26.91 1
TO
1 DG43-14290-BD
Harness Assembly, Forward Engine Bay, RHD 		$1,585.25 1
TO
2 DG43-15K877-AA
Harness Assembly, Front Bumper 		$186.44 1
TO
3 FD33-14290-CA
PAS LINK HARNESS 		$103.23 1
TO
4 8G43-9137-AC
Harness Assembly, Fan Pack Link 		$208.29 1
TO
5 CD33-14N003-AA
Bracket, Inline Connection, RH 		$115.72 1
TO
6 CD33-14N003-BA
Bracket, Inline Connection, LH 		$115.72 1
TO
7 702839-PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
IN STOCK 		$5.57 4
IN
