Front Brake Sub System

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Front Brake Sub System

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G43-28-10265 Front Brake Disc $308.49 IN STOCK
Photo Part No Description Price (each) Stock
4G43-2N389-AA Screw, M8 x 14, Flat Head Countersunk $0.27 IN STOCK
Photo Part No Description Price (each) Stock
4G43-2C463-FA CALIPER ASSY YELLOW FRONT WHEEL BRAKE LH NOT INC PADS $618.42 To Order
4G43-2C462-FA CALIPER ASSY YELLOW FRONT WHEEL BRAKE RH NOT INC PADS $618.42 To Order
4G43-2C463-EA CALIPER ASSY SILVER - FRONT WHEEL BRAKE LH - NOT INC PADS $517.73 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G43-2C564-AB Bolt M12 x 1.5 x 80 Brk CLPR to KNL $2.89 IN STOCK
Photo Part No Description Price (each) Stock
7G43-2D007-AA Front Brake Pad Kit $644.46 To Order

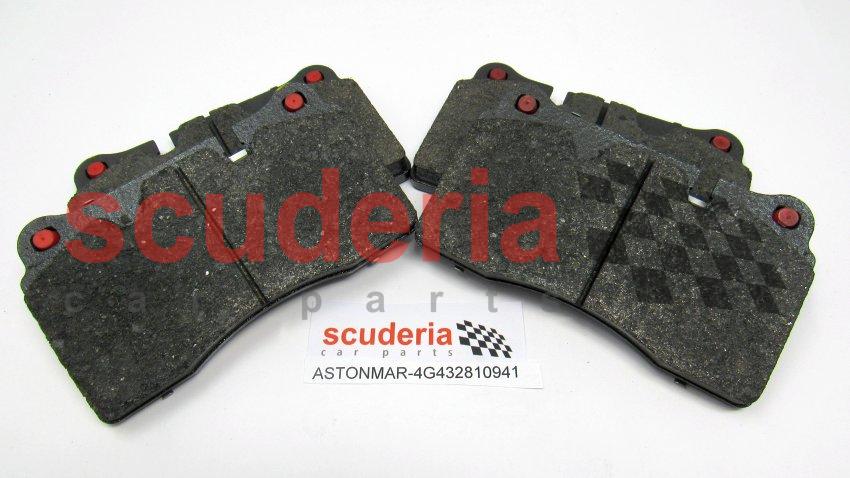

4G43-28-10941 FRONT BRAKE PADS & SHIM SET $650.21 IN STOCK
Photo Part No Description Price (each) Stock
4G43-2C588-AA PINS AND SPRING KIT FRONT CALIPER $74.52 IN STOCK
Photo Part No Description Price (each) Stock
4G43-32180-AA DUST BOOT KIT FRONT CALIPER $49.18 To Order
Photo Part No Description Price (each) Stock
4G43-2C563-AA Kit, Bleed Screw $16.83 IN STOCK
4G43-33693-AA Cap, Bleed Screw $27.67 IN STOCK
Photo Part No Description Price (each) Stock
4G43-2078-AD Hose Assembly, Front Wheel Brake, LH $415.92 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.34 IN STOCK
Photo Part No Description Price (each) Stock
AD43-2K005-AB SHIELD FRONT BRAKE DISC LH $50.21 IN STOCK
AD43-2K004-AB SHIELD - FRONT BRAKE DISC RH $68.65 To Order
Photo Part No Description Price (each) Stock
4G43-13D026-AA Screw, retaining disc shield $0.62 IN STOCK
Photo Part No Description Price (each) Stock
4G43-2L507-AB Pad wear Lead Front $52.76 IN STOCK
4G43-2L507-AB Pad wear Lead Front $52.76 IN STOCK
Photo Part No Description Price (each) Stock
4G43-65-10059-PK Firtree Clip, for pad wear lead (Pack of 100) $65.86 IN STOCK
Front Brake Sub System of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G43-28-10265
Front Brake Disc
IN STOCK 		$308.49 1
IN
2 4G43-2N389-AA
Screw, M8 x 14, Flat Head Countersunk
IN STOCK 		$0.27 4
IN
3 4G43-2C463-FA
CALIPER ASSY YELLOW FRONT WHEEL BRAKE LH NOT INC PADS
12MY 		$618.42 1
TO
3 4G43-2C462-FA
CALIPER ASSY YELLOW FRONT WHEEL BRAKE RH NOT INC PADS
12MY 		$618.42 1
TO
3 4G43-2C463-EA
CALIPER ASSY SILVER - FRONT WHEEL BRAKE LH - NOT INC PADS 		$517.73 1
TO
3 4G43-2C462-EA
CALIPER ASSY SILVER - FRONT WHEEL BRAKE RH - NOT INC PADS 		$517.73 1
TO
3 4G43-2C463-CA
CALIPER ASSY BLACK - FRONT WHEEL BRAKE LH NOT INC PADS 		$502.50 1
TO
3 4G43-2C462-CA
CALIPER ASSY BLACK - FRONT WHEEL BRAKE RH NOT INC PADS 		$502.50 1
TO
3 4G43-2C463-AA
CALIPER ASSY GREY - FRONT WHEEL BRAKE LH NOT INC PADS 		$517.73 1
TO
3 4G43-2C462-AA
CALIPER ASSY GREY - FRONT WHEEL BRAKE RH NOT INC PADS 		$517.73 1
TO
3 4G43-2C463-DA
CALIPER ASSY RED - FRONT WHEEL BRAKE LH NOT INC PADS 		$517.73 1
TO
3 4G43-2C462-DA
CALIPER ASSY RED - FRONT WHEEL BRAKE RH NOT INCL PADS 		$517.73 1
TO
4 4G43-2C564-AB
Bolt M12 x 1.5 x 80 Brk CLPR to KNL
- N.B. Do not reuse
IN STOCK 		$2.89 4
IN
5 7G43-2D007-AA
Front Brake Pad Kit
Per Axle Set 		$644.46 1
TO
5 4G43-28-10941
FRONT BRAKE PADS & SHIM SET
IN STOCK 		$650.21 1
IN
6 4G43-2C588-AA
PINS AND SPRING KIT FRONT CALIPER
Per Caliper
IN STOCK 		$74.52 1
IN
7 4G43-32180-AA
DUST BOOT KIT FRONT CALIPER
Per Caliper 		$49.18 1
TO
8 4G43-2C563-AA
Kit, Bleed Screw
Per Caliper
IN STOCK 		$16.83 1
IN
8 4G43-33693-AA
Cap, Bleed Screw
Per Caliper
IN STOCK 		$27.67 1
IN
9 4G43-2078-AD
Hose Assembly, Front Wheel Brake, LH 		$415.92 1
TO
10 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.34 2
IN
11 AD43-2K005-AB
SHIELD FRONT BRAKE DISC LH
IN STOCK 		$50.21 1
IN
11 AD43-2K004-AB
SHIELD - FRONT BRAKE DISC RH 		$68.65 1
TO
12 4G43-13D026-AA
Screw, retaining disc shield
IN STOCK 		$0.62 8
IN

4G43-2L507-AB

PAD WEAR LEAD FRONT

from $52.76

14 4G43-65-10059-PK
Firtree Clip, for pad wear lead (Pack of 100)
IN STOCK 		$65.86 6
IN
