Name: Door Glass and Frames
Rating: 5.0 (1 reviews)

Door Glass and Frames of Aston Martin Aston Martin DB7 (1995)

View All

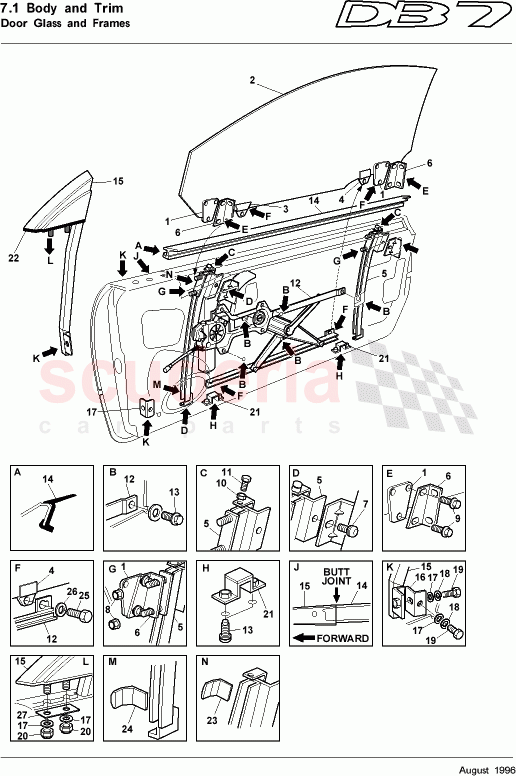

Aston Martin DB7 (1995) - Door Glass and Frames

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7682225	GLASS ASSY DOOR RH 500 x 980 x 3mm	$1,009.31	To Order
	7682226	GLASS ASSY DOOR LH 500 x 980 x 3mm	$1,009.31	To Order

Photo	Part No	Description	Price (each)	Stock
	6582230	Guide assy, door glass - RH	$117.78	To Order
	6582231	Guide assy, door glass - LH	$117.78	To Order
	63123448AA	GUIDE ASSY REAR DOOR GLASS RH	$73.80	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6582232	BRACKET ATTACH DOOR GLASS RH	$9.99	To Order
	6582233	BRACKET ATTACH DOOR GLASS LH	$13.91	To Order
	6582234	SHIM-DOOR GLASS ATTACH REAR	$6.50	To Order

Photo	Part No	Description	Price (each)	Stock
	91689	REGULATOR ASSY DR-RH	$866.17	To Order
	91690	REGULATOR ASSY DR-LH	$866.17	To Order

Photo	Part No	Description	Price (each)	Stock
	7782237	SEAL ASSY DOOR WAIST OUTER RH	$230.96	To Order
	7782238	SEAL ASSY DOOR WAIST OUTER LH	$230.96	To Order
	77124148BA	WAIST SEAL RH CONV	$752.46	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6583307	Cheater assy - RH	Enquire	To Order
	6583308	Cheater assy - LH	Enquire	To Order
	6584059	CHEATER COMP ASSY RH	$876.94	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7782244	SEAL ASSY CHEATER CHANNEL RH	$100.17	To Order
	7782245	SEAL ASSY CHEATER CHANNEL LH	$100.17	To Order
	8084065	FINISHER INNER CHEATER RH	$56.10	To Order

...and 13 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	697464	ADHESIVE-SIKAFLEX260	697464 ADHESIVE-SIKAFLEX260 Cheater inner to outer and seals to retainer	$376.03	-
-	693155	Primer, Sikaflex 205	693155 Primer, Sikaflex 205 Cheater inner to outer and seals to retainer	$95.64	-
-	697028	ALPHA SEAL 132	697028 ALPHA SEAL 132 Cheater inner to door inner	$49.74	-
-	6582250	BUSH FRICTION	6582250 BUSH FRICTION Inner finisher to cheater	$0.12	4
-	697726	SCREW No6 x 3/8 S.T.	697726 SCREW No6 x 3/8 S.T. Outer finisher to cheater	$0.03	6
-	698689	ALPHABOND 1004	698689 ALPHABOND 1004 Waist seal outer to door	$36.25	-
-	695326	LOCTITE 406 ADHESIVE	695326 LOCTITE 406 ADHESIVE Seal to cheater channel	$68.65	-
-	697462	JOINT SEALER (127)	697462 JOINT SEALER (127) Cheater base to door	$11.06	-
-	7682225	GLASS ASSY DOOR RH 500 x 980 x 3mm	7682225 GLASS ASSY DOOR RH 500 x 980 x 3mm	$1,009.31	1
-	7682226	GLASS ASSY DOOR LH 500 x 980 x 3mm	7682226 GLASS ASSY DOOR LH 500 x 980 x 3mm	$1,009.31	1
-	697459	Greasil 4000	697459 Greasil 4000	$39.73	-
2	7682225	GLASS ASSY DOOR RH 500 x 980 x 3mm	7682225 GLASS ASSY DOOR RH 500 x 980 x 3mm	$1,009.31	1
2	7682226	GLASS ASSY DOOR LH 500 x 980 x 3mm	7682226 GLASS ASSY DOOR LH 500 x 980 x 3mm	$1,009.31	1
5	6582230	Guide assy, door glass - RH	6582230 Guide assy, door glass - RH Front only from (V)100718	$117.78	2
5	6582231	Guide assy, door glass - LH	6582231 Guide assy, door glass - LH Front only from (V)100718	$117.78	2
5	63123448AA	GUIDE ASSY REAR DOOR GLASS RH	63123448AA GUIDE ASSY REAR DOOR GLASS RH From (V)100718	$73.80	1
5	63123449AA	GUIDE ASSY REAR DOOR GLASS LH	63123449AA GUIDE ASSY REAR DOOR GLASS LH From (V)100718	$100.61	1
6	6582232	BRACKET ATTACH DOOR GLASS RH	6582232 BRACKET ATTACH DOOR GLASS RH	$9.99	2
6	6582233	BRACKET ATTACH DOOR GLASS LH	6582233 BRACKET ATTACH DOOR GLASS LH	$13.91	2
6	6582234	SHIM-DOOR GLASS ATTACH REAR	6582234 SHIM-DOOR GLASS ATTACH REAR	$6.50	2
12	91689	REGULATOR ASSY DR-RH	91689 REGULATOR ASSY DR-RH	$866.17	1
12	91690	REGULATOR ASSY DR-LH	91690 REGULATOR ASSY DR-LH	$866.17	1
14	7782237	SEAL ASSY DOOR WAIST OUTER RH	7782237 SEAL ASSY DOOR WAIST OUTER RH Up to (V)100662	$230.96	1
14	7782238	SEAL ASSY DOOR WAIST OUTER LH	7782238 SEAL ASSY DOOR WAIST OUTER LH Up to (V)100662	$230.96	1
14	77124148BA	WAIST SEAL RH CONV	77124148BA WAIST SEAL RH CONV From (V)100663	$752.46	1
14	77124147BA	WAIST SEAL LH CONV	77124147BA WAIST SEAL LH CONV From (V)100663	$688.62	1
14	7790215PK	RIVET-W/RAIL OTR(20)	7790215PK RIVET-W/RAIL OTR(20) From (V)100663	$12.78	6
15	6583307	Cheater assy - RH	6583307 Cheater assy - RH Up to (V)100662	-	1	Enquire
15	6583308	Cheater assy - LH	6583308 Cheater assy - LH Up to (V)100662	-	1	Enquire
15	6584059	CHEATER COMP ASSY RH	6584059 CHEATER COMP ASSY RH From (V)100663	$876.94	1
15	6584060	CHEATER COMP ASSY LH	6584060 CHEATER COMP ASSY LH From (V)100663	$591.24	1
22	7782244	SEAL ASSY CHEATER CHANNEL RH	7782244 SEAL ASSY CHEATER CHANNEL RH Up to (V)100662	$100.17	1
22	7782245	SEAL ASSY CHEATER CHANNEL LH	7782245 SEAL ASSY CHEATER CHANNEL LH Up to (V)100662	$100.17	1
22	8084065	FINISHER INNER CHEATER RH	8084065 FINISHER INNER CHEATER RH Up to (V)100662	$56.10	1
22	8084066	FINISHER INNER CHEATER LH	8084066 FINISHER INNER CHEATER LH Up to (V)100662	$56.10	1
22	7884063	FINISHER OUTER CHEATER RH	7884063 FINISHER OUTER CHEATER RH Up to (V)100662	$281.63	1
22	7884064	FINISHER OUTER CHEATER LH	7884064 FINISHER OUTER CHEATER LH Up to (V)100662	$59.51	1
22	65121786AA	SEAL CHEATER BASE RH	65121786AA SEAL CHEATER BASE RH Up to (V)100662	$52.73	1
22	65121787AA	SEAL CHEATER BASE LH	65121787AA SEAL CHEATER BASE LH Up to (V)100662	$134.27	1
22	7784061	SEAL ASSY CHEATER CHANNEL RH	7784061 SEAL ASSY CHEATER CHANNEL RH From (V)100663	$290.24	1
22	7784062	SEAL ASSY CHEATER CHANNEL LH	7784062 SEAL ASSY CHEATER CHANNEL LH From (V)100663	$306.60	1
22	8084065	FINISHER INNER CHEATER RH	8084065 FINISHER INNER CHEATER RH From (V)100663	$56.10	1
22	8084066	FINISHER INNER CHEATER LH	8084066 FINISHER INNER CHEATER LH From (V)100663	$56.10	1
22	7884063	FINISHER OUTER CHEATER RH	7884063 FINISHER OUTER CHEATER RH From (V)100663	$281.63	1
22	7884064	FINISHER OUTER CHEATER LH	7884064 FINISHER OUTER CHEATER LH From (V)100663	$59.51	1
22	65121786AA	SEAL CHEATER BASE RH	65121786AA SEAL CHEATER BASE RH From (V)100663	$52.73	1
22	65121787AA	SEAL CHEATER BASE LH	65121787AA SEAL CHEATER BASE LH From (V)100663	$134.27	1

Door Glass And Frames

Aston Martin DB7 (1995)

Aston Martin DB7 (1995) - Door Glass and Frames
