Engine Oil Cooler Pipe

Rolls Royce Wraith RR5(2017-2023)

Find Your Part

Rolls Royce Wraith RR5(2017-2023) - Engine oil cooler pipe

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
17229468138 Oil cooling pipe inlet $4,845.76 IN STOCK
17 22 7598240 Oil cooling pipe inlet $1,155.79 IN STOCK
Photo Part No Description Price (each) Stock
17 22 7800958 O-ring $4.77 IN STOCK
Photo Part No Description Price (each) Stock
17 22 7604291 O-ring $5.07 IN STOCK
Photo Part No Description Price (each) Stock
17 22 7598241 Oil cooling pipe outlet $1,050.71 IN STOCK
Photo Part No Description Price (each) Stock
07 11 9904589 Hex Bolt with washer $1.24 To Order
Photo Part No Description Price (each) Stock
07 11 9904514 Hex Bolt with washer $1.85 To Order
Photo Part No Description Price (each) Stock
17 22 7586895 Bracket, oil cooler line $28.49 To Order
Photo Part No Description Price (each) Stock
31 14 6786689 Torx screw, self-tapping $1.62 To Order
Photo Part No Description Price (each) Stock
17 12 7588942 Pipe clip $10.09 To Order
Photo Part No Description Price (each) Stock
17 12 7588941 Pipe clip $4.01 To Order
Photo Part No Description Price (each) Stock
17 22 7604883 Fillister head screw $0.67 IN STOCK
Photo Part No Description Price (each) Stock
17 22 7594323 Clip, upper part $4.01 To Order
Photo Part No Description Price (each) Stock
17 21 7594324 Bracket, oil cooler line $35.63 To Order
Photo Part No Description Price (each) Stock
34 30 6771214 Screw, self tapping $4.70 To Order
Photo Part No Description Price (each) Stock
17 21 7575553 Bracket, oil cooler line $26.87 To Order
Photo Part No Description Price (each) Stock
07 11 9905952 Hex Bolt with washer $2.65 IN STOCK
Photo Part No Description Price (each) Stock
17 22 7594153 Spacer $6.52 To Order
Photo Part No Description Price (each) Stock
17 22 7594154 Clip $4.01 To Order
Photo Part No Description Price (each) Stock
07 11 9903994 Hex Bolt with washer $0.80 To Order
Photo Part No Description Price (each) Stock
17 22 7607829 Bracket, oil cooler line $35.28 To Order
Photo Part No Description Price (each) Stock
32 41 6769256 Rubber mounting $13.19 To Order
Photo Part No Description Price (each) Stock
07 12 9904553 Hex nut with plate $0.91 IN STOCK

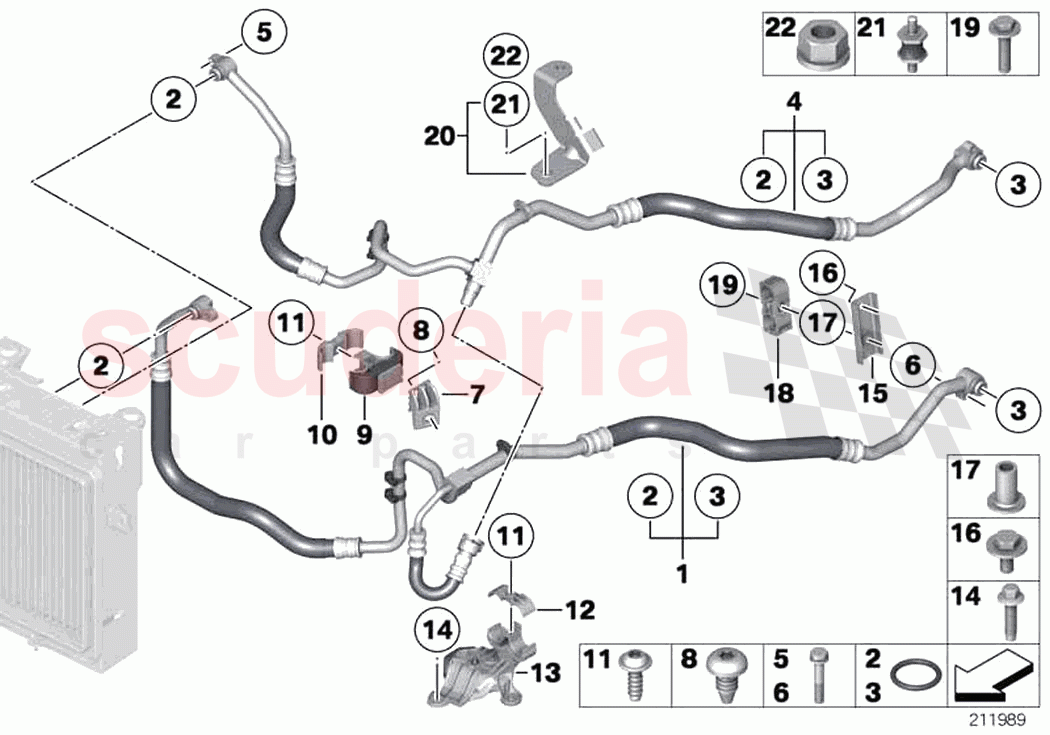

Engine oil cooler pipe of Rolls Royce Rolls Royce Wraith RR5(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 17228832774
Bracket, oil cooler line
from 08.2014
IN STOCK 		$164.98 1
IN
- 17229468139
Oil cooling pipe outlet
from 08.2014
IN STOCK 		$4,354.91 1
IN
1 17229468138
Oil cooling pipe inlet
from 08.2014
IN STOCK 		$4,845.76 1
IN
1 17 22 7598240
Oil cooling pipe inlet
to 08.2014
IN STOCK 		$1,155.79 1
IN
2 17 22 7800958
O-ring
13,65X2,62
IN STOCK 		$4.77 2
IN
3 17 22 7604291
O-ring
IN STOCK 		$5.07 2
IN
4 17 22 7598241
Oil cooling pipe outlet
to 08.2014
IN STOCK 		$1,050.71 1
IN
5 07 11 9904589
Hex Bolt with washer
M6X35-U1-8.8 		$1.24 1
TO
6 07 11 9904514
Hex Bolt with washer
M8X40-U1-8.8 		$1.85 1
TO
7 17 22 7586895
Bracket, oil cooler line 		$28.49 1
TO
8 31 14 6786689
Torx screw, self-tapping
M6X13-ZNNIVSI 		$1.62 1
TO
9 17 12 7588942
Pipe clip 		$10.09 1
TO
10 17 12 7588941
Pipe clip 		$4.01 1
TO
11 17 22 7604883
Fillister head screw
IN STOCK 		$0.67 2
IN
12 17 22 7594323
Clip, upper part 		$4.01 1
TO
13 17 21 7594324
Bracket, oil cooler line 		$35.63 1
TO
14 34 30 6771214
Screw, self tapping
M6X25- 10.9 ZNS 		$4.70 3
TO
15 17 21 7575553
Bracket, oil cooler line
to 04.2014 		$26.87 1
TO
16 07 11 9905952
Hex Bolt with washer
M6X14U2-ZNNIVSI
IN STOCK 		$2.65 1
IN
17 17 22 7594153
Spacer 		$6.52 1
TO
18 17 22 7594154
Clip 		$4.01 1
TO
19 07 11 9903994
Hex Bolt with washer
M6X30-U2-ZNS3 		$0.80 1
TO
20 17 22 7607829
Bracket, oil cooler line 		$35.28 1
TO
21 32 41 6769256
Rubber mounting
H=17 		$13.19 1
TO
22 07 12 9904553
Hex nut with plate
AM6-8-ZNNIV SI
IN STOCK 		$0.91 1
IN
