High Pressure Rail Injector Line

Rolls Royce Wraith RR5(2017-2023)

Find Your Part

Rolls Royce Wraith RR5(2017-2023) - High pressure rail injector line

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13538648630 Injection tube $535.24 To Order
Photo Part No Description Price (each) Stock
13 53 7537319 Sensor, high-pressure $122.44 To Order
13537620946 Sensor, high-pressure $122.44 To Order
Photo Part No Description Price (each) Stock
07 11 9905926 Hex Bolt with washer $1.94 To Order
Photo Part No Description Price (each) Stock
13 53 7560542 High pressure pipe $66.88 To Order
Photo Part No Description Price (each) Stock
13 53 7560543 High pressure pipe $89.16 To Order
Photo Part No Description Price (each) Stock
13 53 7560541 High pressure pipe $57.95 To Order
Photo Part No Description Price (each) Stock
13 53 7564506 High pressure pipe $105.26 To Order
Photo Part No Description Price (each) Stock
13 53 7584369 High pressure pipe $66.88 To Order
Photo Part No Description Price (each) Stock
13538616079 Injector $845.48 IN STOCK
Photo Part No Description Price (each) Stock
13 53 7584315 Gasket ring $3.81 IN STOCK
Photo Part No Description Price (each) Stock
13538651060 Decoupling element $14.25 To Order
Photo Part No Description Price (each) Stock
13 64 7598000 Bracket injector $27.86 To Order
Photo Part No Description Price (each) Stock
07 11 9906642 Hex Bolt with washer $1.59 To Order

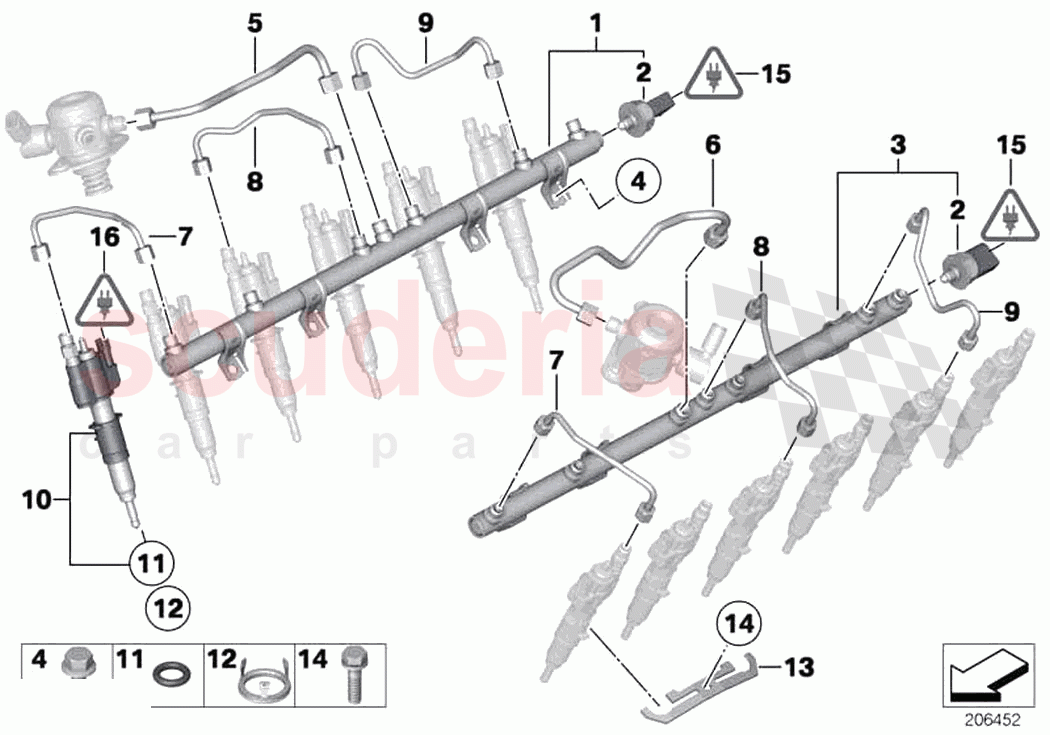

High pressure rail injector line of Rolls Royce Rolls Royce Wraith RR5(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 13538643665
Sensor, high-pressure
from 07.2015 		$122.44 1
TO
- 13 53 7560539
Injection tube
1-6 		- -
PE
 Enquire
- 13 53 7560540
Injection tube
7-12 		- -
PE
 Enquire
- 13 53 8625029
Injection tube
1-6 		- -
PE
 Enquire
- 13 53 8625030
Injection tube
7-12 		- -
PE
 Enquire
- 13538648631
Injection tube
7-12; to 07.2015 		$535.24 -
TO
- 13 53 7564751
Decoupling element
IN STOCK 		$15.10 12
IN
1 13538648630
Injection tube
1-6; from 07.2015 		$535.24 1
TO
2 13 53 7537319
Sensor, high-pressure
from 05.2014 		$122.44 2
TO
2 13537620946
Sensor, high-pressure
05.2014 - 07.2015 		$122.44 2
TO
4 07 11 9905926
Hex Bolt with washer
M7X16-U1 		$1.94 8
TO
5 13 53 7560542
High pressure pipe
1-6 		$66.88 1
TO
6 13 53 7560543
High pressure pipe
7-12 		$89.16 1
TO
7 13 53 7560541
High pressure pipe 		$57.95 8
TO
8 13 53 7564506
High pressure pipe
ZYL. 3+9 		$105.26 2
TO
9 13 53 7584369
High pressure pipe
ZYL. 5+11 		$66.88 2
TO
10 13538616079
Injector
IN STOCK 		$845.48 12
IN
11 13 53 7584315
Gasket ring
IN STOCK 		$3.81 12
IN
12 13538651060
Decoupling element
from 05.2020 		$14.25 12
TO
13 13 64 7598000
Bracket injector 		$27.86 6
TO
14 07 11 9906642
Hex Bolt with washer
M7X20-U1 		$1.59 6
TO
