Floorpan Assembly

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Floorpan assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
41 00 8494567 Frame side member, inner left Enquire To Order
41 00 8494568 Frame side member, inner right Enquire To Order
Photo Part No Description Price (each) Stock
41008494583 Floor panel, middle left $2,314.45 To Order
41008494584 Floor panel, middle right $2,314.45 To Order
Photo Part No Description Price (each) Stock
41008494563 Cover for frame side member, left $173.92 To Order
41008494564 Cover for frame side member, right $173.92 To Order
Photo Part No Description Price (each) Stock
41008494557 Support, engine carrier bottom left $897.70 To Order
41008494558 Support, engine carrier bottom right $897.70 To Order
Photo Part No Description Price (each) Stock
41008494565 B-pillar base, left $1,215.68 To Order
41 00 8494566 B-pillar base, right Enquire To Order
Photo Part No Description Price (each) Stock
41008494560 Lid side member rear $217.85 To Order
Photo Part No Description Price (each) Stock
41008494585 Support, seat console, left $257.11 To Order
41008494586 Support, seat console, right $257.11 To Order
Photo Part No Description Price (each) Stock
41008494587 Left reinforcement floor panel $187.02 To Order
41008494588 Right reinforcement floor panel $187.02 To Order
Photo Part No Description Price (each) Stock
41008494571 Seat support, outer front left $972.50 To Order
41008494572 Seat support, outer front right $972.50 To Order
Photo Part No Description Price (each) Stock
41008494573 Seat console, rear outer left $972.50 To Order
41008494574 Seat console, rear outer right $972.50 To Order
Photo Part No Description Price (each) Stock
41008494575 Seat console inner $1,005.21 To Order
Photo Part No Description Price (each) Stock
41008494569 Mounting for front seat $864.95 To Order
Photo Part No Description Price (each) Stock
41008494570 Mounting for rear seat $922.64 To Order
Photo Part No Description Price (each) Stock
51 71 8494577 Seat frame, left Enquire To Order
51 71 8494578 Seat frame, right Enquire To Order
Photo Part No Description Price (each) Stock
07119907536 Torx bolt $3.24 To Order

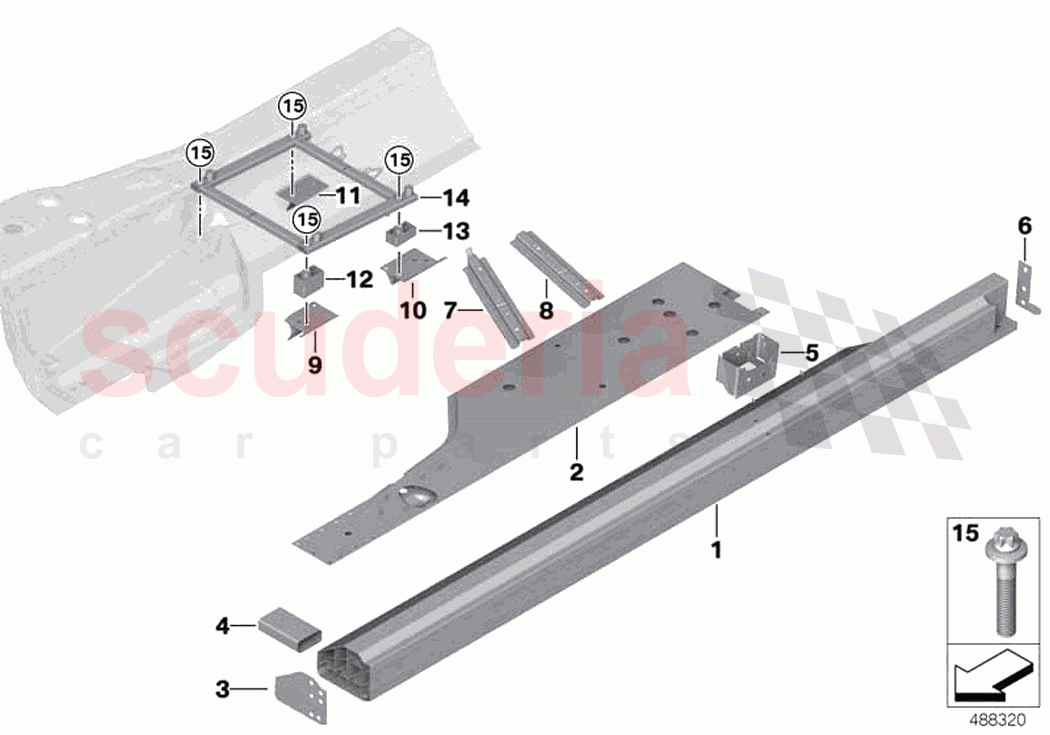

Floorpan assembly of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 41 00 8494567
Frame side member, inner left 		- 1
PE
 Enquire
1 41 00 8494568
Frame side member, inner right 		- 1
PE
 Enquire
2 41008494583
Floor panel, middle left 		$2,314.45 1
TO
2 41008494584
Floor panel, middle right 		$2,314.45 1
TO
3 41008494563
Cover for frame side member, left 		$173.92 1
TO
3 41008494564
Cover for frame side member, right 		$173.92 1
TO
4 41008494557
Support, engine carrier bottom left 		$897.70 1
TO
4 41008494558
Support, engine carrier bottom right 		$897.70 1
TO
5 41008494565
B-pillar base, left 		$1,215.68 1
TO
5 41 00 8494566
B-pillar base, right 		- 1
PE
 Enquire
6 41008494560
Lid side member rear 		$217.85 2
TO
7 41008494585
Support, seat console, left 		$257.11 1
TO
7 41008494586
Support, seat console, right 		$257.11 1
TO
8 41008494587
Left reinforcement floor panel 		$187.02 1
TO
8 41008494588
Right reinforcement floor panel 		$187.02 1
TO
9 41008494571
Seat support, outer front left 		$972.50 1
TO
9 41008494572
Seat support, outer front right 		$972.50 1
TO
10 41008494573
Seat console, rear outer left 		$972.50 1
TO
10 41008494574
Seat console, rear outer right 		$972.50 1
TO
11 41008494575
Seat console inner 		$1,005.21 4
TO
12 41008494569
Mounting for front seat 		$864.95 4
TO
13 41008494570
Mounting for rear seat 		$922.64 4
TO
14 51 71 8494577
Seat frame, left 		- 1
PE
 Enquire
14 51 71 8494578
Seat frame, right 		- 1
PE
 Enquire
15 07119907536
Torx bolt
ASA M10X50 10.9 		$3.24 8
TO
