Brake Pipe Rear

Rolls Royce Phantom RR11(2017-2023)

Find Your Part

Rolls Royce Phantom RR11(2017-2023) - Brake pipe rear

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
34326871269 Pipe -DSC hydraulic unit- $51.45 To Order
Photo Part No Description Price (each) Stock
34326871285 Pipe -connecting piece- $106.23 To Order
Photo Part No Description Price (each) Stock
34326871271 Pipe -DSC hydraulic unit- $53.10 To Order
Photo Part No Description Price (each) Stock
34326871287 Pipe -connecting piece- $158.05 To Order
Photo Part No Description Price (each) Stock
34326868934 Connection piece $11.16 To Order
Photo Part No Description Price (each) Stock
34326777692 Spacer, 4-part $4.22 To Order
Photo Part No Description Price (each) Stock
34326871117 Line clip, double $1.38 To Order
Photo Part No Description Price (each) Stock
34 32 1107991 Spacer holder $5.63 To Order
Photo Part No Description Price (each) Stock
34 30 6751993 Brake pipe bracket $10.32 To Order
Photo Part No Description Price (each) Stock
34326855500 Brake pipe bracket $1.38 To Order
Photo Part No Description Price (each) Stock
34206861806 Brake hose rear $59.72 To Order
Photo Part No Description Price (each) Stock
34306875170 Rubber grommet $3.65 To Order
Photo Part No Description Price (each) Stock
34 30 1163613 Washer $2.04 To Order
07119904119 Washer $1.48 To Order
Photo Part No Description Price (each) Stock
37 13 1114028 Washer $2.42 To Order
Photo Part No Description Price (each) Stock
34306875485 Holder, brake hose, rear left $40.80 To Order
Photo Part No Description Price (each) Stock
34306875486 Holder, brake hose, rear right $40.80 To Order
Photo Part No Description Price (each) Stock
07 13 1025735 Screw, self tapping $1.20 To Order

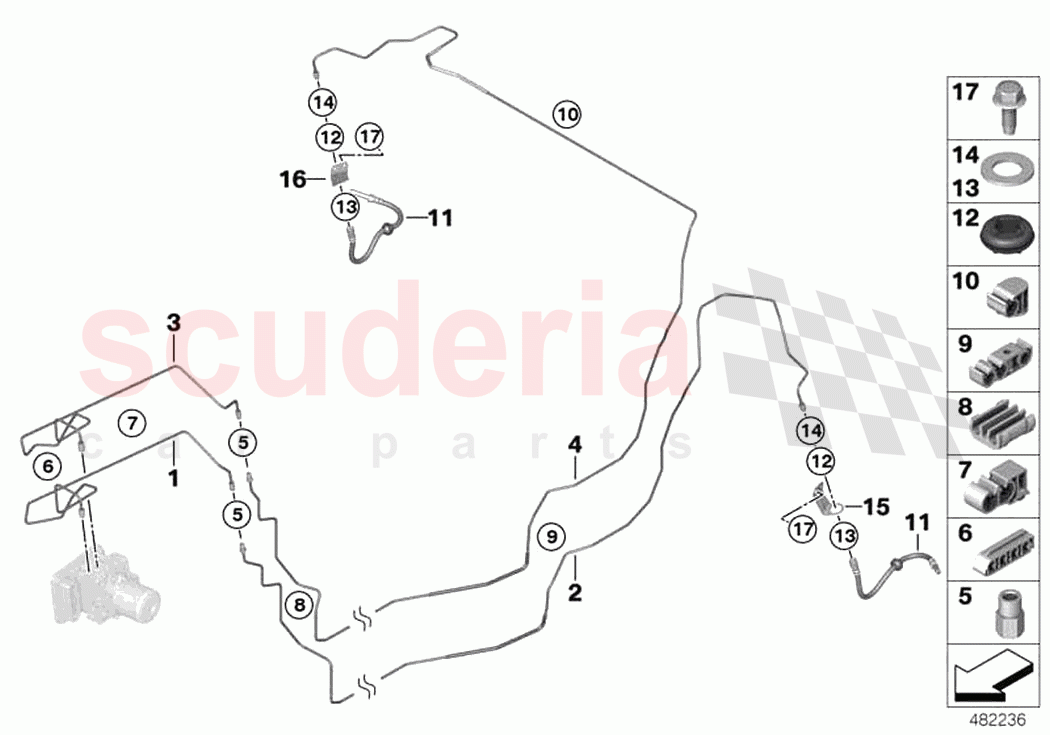

Brake pipe rear of Rolls Royce Rolls Royce Phantom RR11(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 34326871269
Pipe -DSC hydraulic unit-
M10/M10 		$51.45 1
TO
02 34326871285
Pipe -connecting piece-
M10/M10 		$106.23 1
TO
03 34326871271
Pipe -DSC hydraulic unit-
M12/M10 		$53.10 1
TO
04 34326871287
Pipe -connecting piece-
M10/M10 		$158.05 1
TO
05 34326868934
Connection piece
M10X1 		$11.16 2
TO
06 34326777692
Spacer, 4-part 		$4.22 1
TO
07 34326871117
Line clip, double 		$1.38 2
TO
08 34 32 1107991
Spacer holder 		$5.63 1
TO
09 34 30 6751993
Brake pipe bracket 		$10.32 2
TO
10 34326855500
Brake pipe bracket 		$1.38 2
TO
11 34206861806
Brake hose rear 		$59.72 2
TO
12 34306875170
Rubber grommet 		$3.65 2
TO
13 34 30 1163613
Washer
14X25X2-ZNS3; from 12.2020 		$2.04 2
TO
13 07119904119
Washer
12-300 HV-ZNS3; to 12.2020 		$1.48 2
TO
14 37 13 1114028
Washer
10X25X1,5-ZNS3 		$2.42 2
TO
15 34306875485
Holder, brake hose, rear left 		$40.80 1
TO
16 34306875486
Holder, brake hose, rear right 		$40.80 1
TO
17 07 13 1025735
Screw, self tapping
M6X16MM 		$1.20 4
TO
