Various Parts Wiring Harness Repair

Rolls Royce Phantom RR11(2017-2023)

Find Your Part

Rolls Royce Phantom RR11(2017-2023) - Various parts wiring harness repair

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
61 13 8353746 Cable connector $1.26 To Order
61 13 8353747 Cable connector $1.26 To Order
61 13 8353748 Cable connector $1.26 To Order
Photo Part No Description Price (each) Stock
61 13 1379833 Shrinking hose Enquire To Order
61135A4F528 Shrinking hose $2.24 To Order
Photo Part No Description Price (each) Stock
61131380991 Insulating tape, soft PVC $3.09 To Order
61136920760 Polyester fleece wrapping band $10.29 To Order
61136933055 Fabric-Tape $0.98 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
61138364566 Connector, double $2.50 To Order
61138364568 Connector, 5x $10.70 To Order
Photo Part No Description Price (each) Stock
61 13 6933299 Corrugated tubing, slotted Enquire To Order
61136933301 Corrugated tubing, slotted $12.06 To Order
61136933302 Corrugated tubing, slotted $11.63 To Order
Photo Part No Description Price (each) Stock
12517508831 Metal tube, corrugated $6.02 To Order
Photo Part No Description Price (each) Stock
61136988919 Solenoid $118.07 To Order
Photo Part No Description Price (each) Stock
61138373688 Connector, quadruple, black $13.74 To Order
Photo Part No Description Price (each) Stock
61139199974 Diode holder $38.82 To Order
Photo Part No Description Price (each) Stock
12501724014 Parallel connector $0.68 To Order
Photo Part No Description Price (each) Stock
61138383137 Insulating cap $1.15 To Order
61138383138 Insulating cap $1.09 To Order
61138383139 Insulating cap $2.89 To Order
...and 1 more part variants. See table on right for more details.

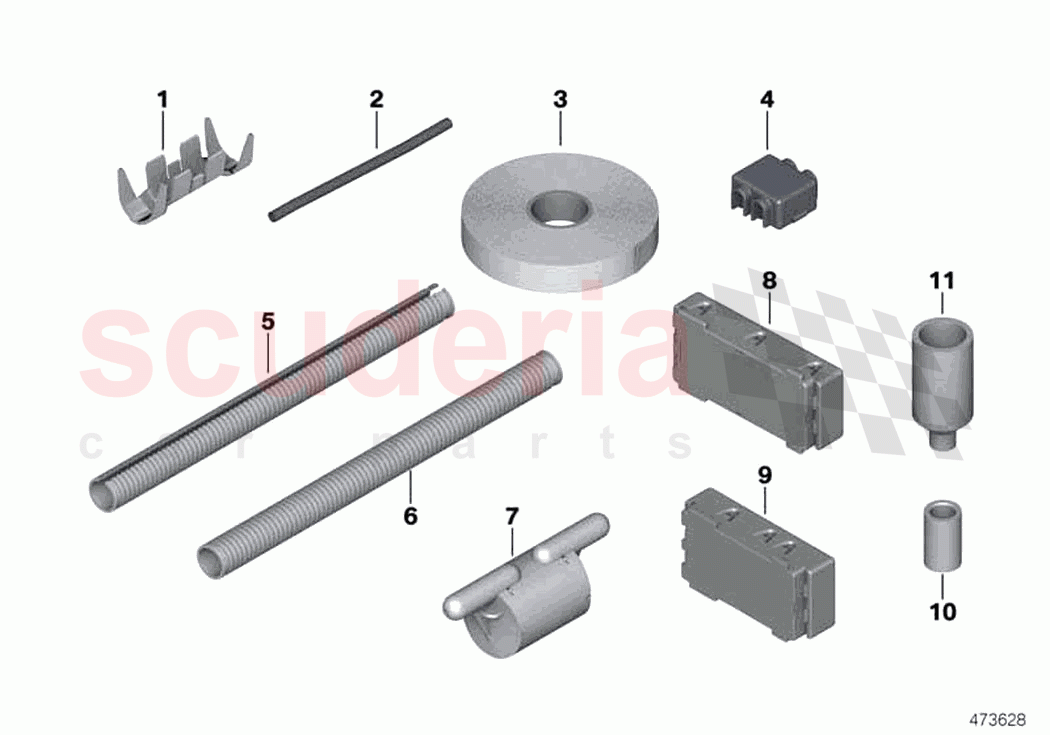

Various parts wiring harness repair of Rolls Royce Rolls Royce Phantom RR11(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 61 13 8353746
Cable connector
0.2-0.5 MM² 		$1.26 -
TO
1 61 13 8353747
Cable connector
1.0-0.75 MM² 		$1.26 -
TO
1 61 13 8353748
Cable connector
1.5-2.5 MM² 		$1.26 -
TO
2 61 13 1379833
Shrinking hose
6X45MM; from 09.1987 		- -
PE
 Enquire
2 61135A4F528
Shrinking hose
6X45MM 		$2.24 -
TO
3 61131380991
Insulating tape, soft PVC 		$3.09 -
TO
3 61136920760
Polyester fleece wrapping band
B=19MM/L=7,5M 		$10.29 -
TO
3 61136933055
Fabric-Tape
B=17MM 		$0.98 -
TO
3 61138351989
Fabric-Tape
L=50M, B=30MM 		$2.24 -
TO
3 61136925452
Fabric tape abrasion-resistant
25MM 		$2.24 -
TO
4 61138364566
Connector, double 		$2.50 -
TO
4 61138364568
Connector, 5x 		$10.70 -
TO
5 61 13 6933299
Corrugated tubing, slotted
Ø 5MM 		- -
PE
 Enquire
5 61136933301
Corrugated tubing, slotted
Ø 8,5MM 		$12.06 -
TO
5 61136933302
Corrugated tubing, slotted
Ø 13 MM 		$11.63 -
TO
6 12517508831
Metal tube, corrugated
Ø 4,5MM 		$6.02 -
TO
7 61136988919
Solenoid 		$118.07 -
TO
8 61138373688
Connector, quadruple, black
120OHM 		$13.74 -
TO
9 61139199974
Diode holder 		$38.82 1
TO
10 12501724014
Parallel connector
D= 3MM 		$0.68 1
TO
11 61138383137
Insulating cap
D= 6 MM 		$1.15 -
TO
11 61138383138
Insulating cap
D= 8 MM 		$1.09 -
TO
11 61138383139
Insulating cap
D= 11 MM 		$2.89 -
TO
11 61138383140
Insulating cap
D= 18 MM 		$4.01 -
TO
