Name: High pressure rail injector line
Rating: 4.7 (1 reviews)

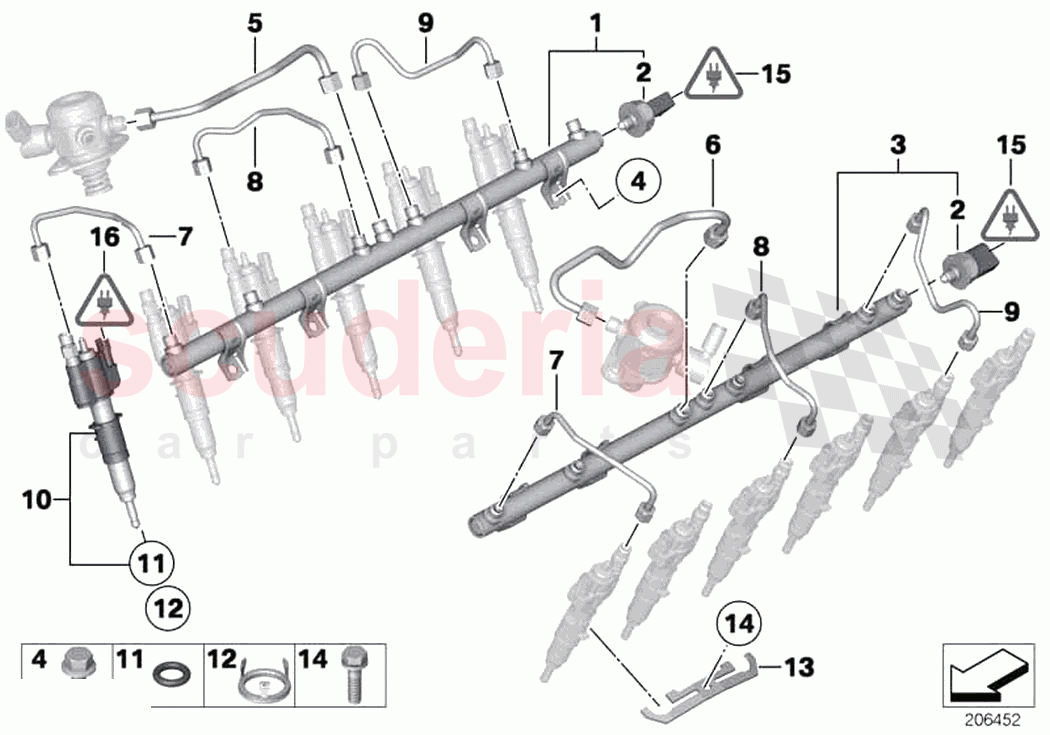

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13538648630	Injection tube	$535.24	To Order

Photo	Part No	Description	Price (each)	Stock
	13538643665	Sensor, high-pressure	$122.44	To Order

Photo	Part No	Description	Price (each)	Stock
	07 11 9905926	Hex Bolt with washer	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	13 53 7560542	High pressure pipe	$66.88	To Order

Photo	Part No	Description	Price (each)	Stock
	13 53 7560543	High pressure pipe	$89.16	To Order

Photo	Part No	Description	Price (each)	Stock
	13 53 7560541	High pressure pipe	$57.95	To Order

Photo	Part No	Description	Price (each)	Stock
	13 53 7564506	High pressure pipe	$105.26	To Order

Photo	Part No	Description	Price (each)	Stock
	13 53 7584369	High pressure pipe	$66.88	To Order

Photo	Part No	Description	Price (each)	Stock
	13538616079	Injector	$845.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13 53 7584315	Gasket ring	$3.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13538651060	Decoupling element	$14.25	To Order

Photo	Part No	Description	Price (each)	Stock
	13 64 7598000	Bracket injector	$27.86	To Order

Photo	Part No	Description	Price (each)	Stock
	07 11 9906642	Hex Bolt with washer	$1.59	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
-	13538648631	Injection tube	13538648631 Injection tube 7-12	$535.24	-	TO
-	13 53 7564751	Decoupling element IN STOCK	13 53 7564751 Decoupling element IN STOCK	$15.10	12	IN
1	13538648630	Injection tube	13538648630 Injection tube 1-6	$535.24	1	TO
2	13538643665	Sensor, high-pressure	13538643665 Sensor, high-pressure	$122.44	2	TO
4	07 11 9905926	Hex Bolt with washer	07 11 9905926 Hex Bolt with washer M7X16-U1	$1.94	8	TO
5	13 53 7560542	High pressure pipe	13 53 7560542 High pressure pipe 1-6	$66.88	1	TO
6	13 53 7560543	High pressure pipe	13 53 7560543 High pressure pipe 7-12	$89.16	1	TO
7	13 53 7560541	High pressure pipe	13 53 7560541 High pressure pipe	$57.95	8	TO
8	13 53 7564506	High pressure pipe	13 53 7564506 High pressure pipe ZYL. 3+9	$105.26	2	TO
9	13 53 7584369	High pressure pipe	13 53 7584369 High pressure pipe ZYL. 5+11	$66.88	2	TO
10	13538616079	Injector IN STOCK	13538616079 Injector IN STOCK	$845.48	12	IN
11	13 53 7584315	Gasket ring IN STOCK	13 53 7584315 Gasket ring IN STOCK	$3.81	12	IN
12	13538651060	Decoupling element	13538651060 Decoupling element from 05.2020	$14.25	12	TO
13	13 64 7598000	Bracket injector	13 64 7598000 Bracket injector	$27.86	6	TO
14	07 11 9906642	Hex Bolt with washer	07 11 9906642 Hex Bolt with washer M7X20-U1	$1.59	6	TO

High Pressure Rail Injector Line

Rolls Royce Dawn RR6(2017-2023)
