McLaren Speedtail - 32 - TRANSMISSION COOLING SYSTEM - REAR - 32.2 - CLUTCH COOLER FEED + RETURN - REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
23GA043CP PIPE-FEED-CLUTCH COOLER $1,506.85 To Order
Photo Part No Description Price (each) Stock
23GA044CP PIPE-RTN-CLUTCH COOLER $145.09 To Order
Photo Part No Description Price (each) Stock
11G0158CP O-ring - Cooler - Trans/Clutch $17.25 To Order
Photo Part No Description Price (each) Stock
11G0234CP O-ring - Clutch Cooler $12.89 To Order

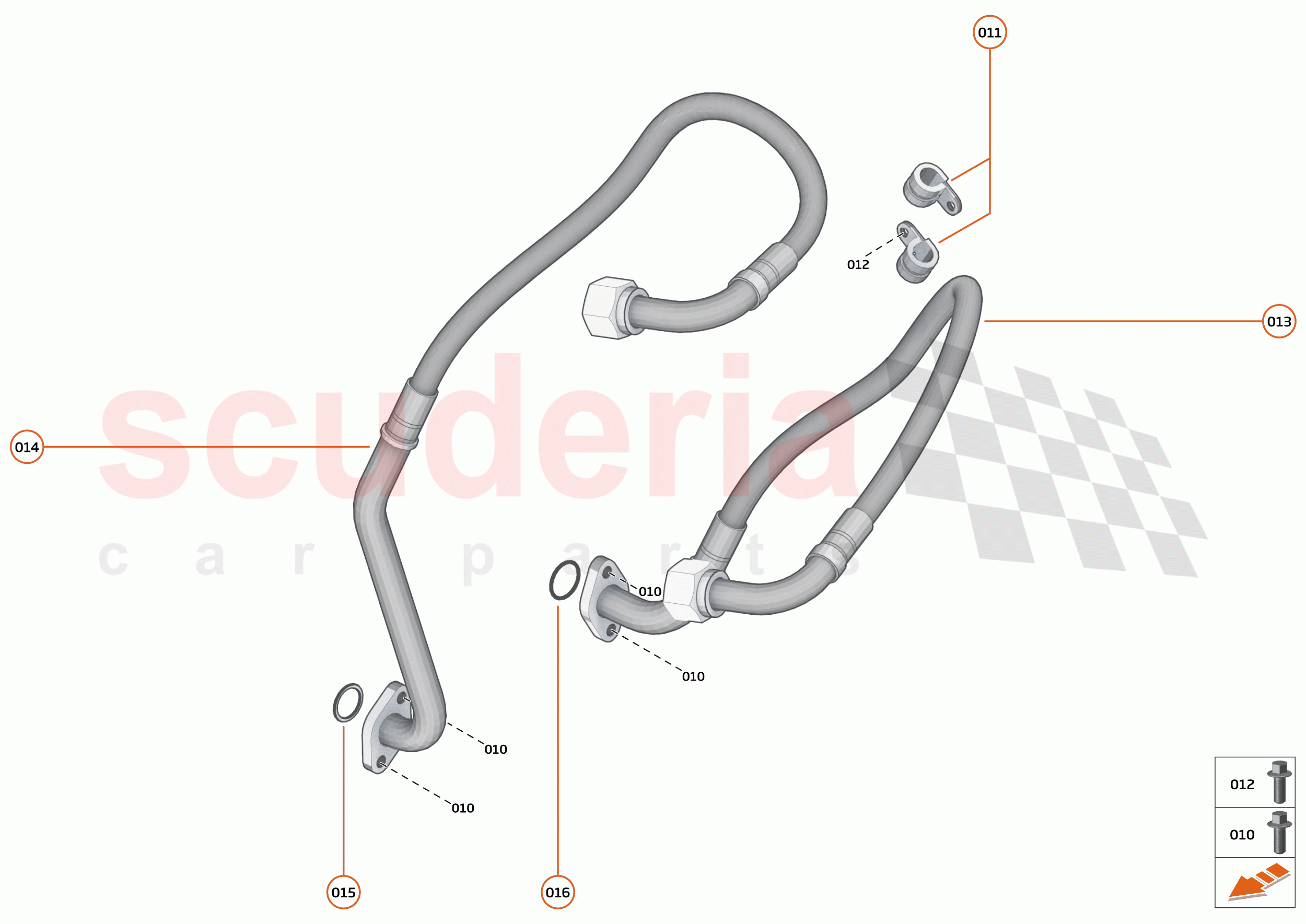

32 - TRANSMISSION COOLING SYSTEM - REAR - 32.2 - CLUTCH COOLER FEED + RETURN - REAR of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4
PE
 Enquire
011 00RB005
P CLIP - DIA 16 		- 2
PE
 Enquire
012 00RA061
Screw - M6x16 - Flange Hex 		- 1
PE
 Enquire
013 23GA043CP
PIPE-FEED-CLUTCH COOLER 		$1,506.85 1
TO
014 23GA044CP
PIPE-RTN-CLUTCH COOLER 		$145.09 1
TO
015 11G0158CP
O-ring - Cooler - Trans/Clutch 		$17.25 1
TO
016 11G0234CP
O-ring - Clutch Cooler 		$12.89 1
TO
