McLaren Speedtail - 29 - COOLING SYSTEM - 29.5 - LOW TEMPERATURE RADIATORS AND FANS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock

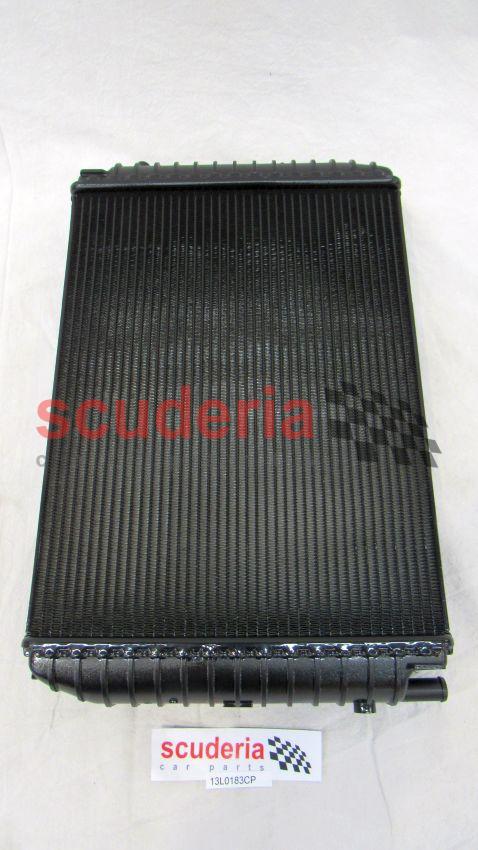

13L0183CP LOW TEMPERATURE RADIATOR - CHARGE COOLER $832.73 To Order
Photo Part No Description Price (each) Stock
11L0528CP LOW TEMPERATURE RADIATOR - GRILL - STANDARD $40.60 To Order
Photo Part No Description Price (each) Stock
11L0529CP LOW TEMPERATURE RADIATOR - GRILL - PEGS $3.23 To Order
Photo Part No Description Price (each) Stock
23LA311CP Color codes: PRE-COOLER Enquire To Order
Photo Part No Description Price (each) Stock
00RA689 BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX Enquire To Order
Photo Part No Description Price (each) Stock
23LA317CP SEAL-BODY TO RADIATOR TOP $37.67 To Order
Photo Part No Description Price (each) Stock
23LA318CP SEAL-BODY TO RADIATOR FRONT Enquire To Order
Photo Part No Description Price (each) Stock
23LA320CP SEAL-BODY TO RADIATOR SIDE Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RL013 CABLE TIE - 360X4.8MM Enquire To Order
Photo Part No Description Price (each) Stock
23LA324CP LTR FAN BRACKET $241.69 To Order
Photo Part No Description Price (each) Stock
23LA325CP FOAM LTR FAN Enquire To Order
Photo Part No Description Price (each) Stock
00RL010 CABLE TIE - SF175-50X Enquire To Order
Photo Part No Description Price (each) Stock
23GA048CP SUCTION FAN MTR $264.02 To Order

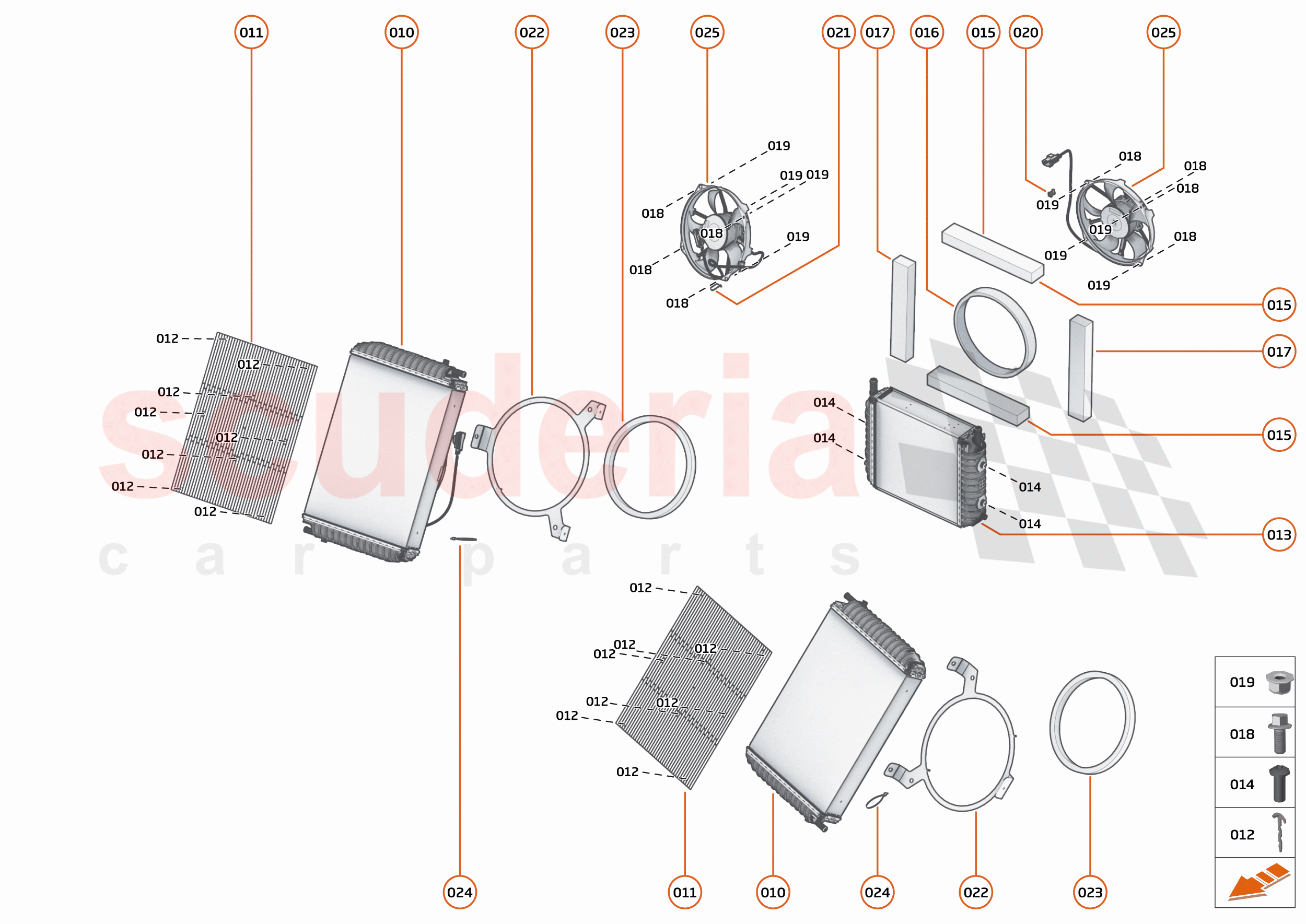

29 - COOLING SYSTEM - 29.5 - LOW TEMPERATURE RADIATORS AND FANS of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RM004
RIVET - 3.28.X 8MM - BOLLHOFF 		- 1
PE
 Enquire
010 13L0183CP
LOW TEMPERATURE RADIATOR - CHARGE COOLER 		$832.73 2
TO
011 11L0528CP
LOW TEMPERATURE RADIATOR - GRILL - STANDARD 		$40.60 2
TO
012 11L0529CP
LOW TEMPERATURE RADIATOR - GRILL - PEGS 		$3.23 16
TO
013 23LA311CP
Color codes: PRE-COOLER
Color codes: PRE-COOLER; 		- 1
PE
 Enquire
014 00RA689
BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX 		- 4
PE
 Enquire
015 23LA317CP
SEAL-BODY TO RADIATOR TOP 		$37.67 2
TO
016 23LA318CP
SEAL-BODY TO RADIATOR FRONT 		- 1
PE
 Enquire
017 23LA320CP
SEAL-BODY TO RADIATOR SIDE 		- 2
PE
 Enquire
018 00RA313
SCREW - M6X16 - HEX - SILVER 		- 8
PE
 Enquire
019 00RA055
NUT - M6 - LOCKING - HEX 		- 8
PE
 Enquire
020 00RL001
CABLE TIE - FIRTREE BASE 		- 1
PE
 Enquire
021 00RL013
CABLE TIE - 360X4.8MM 		- 1
PE
 Enquire
022 23LA324CP
LTR FAN BRACKET 		$241.69 2
TO
023 23LA325CP
FOAM LTR FAN 		- 2
PE
 Enquire
024 00RL010
CABLE TIE - SF175-50X 		- 2
PE
 Enquire
025 23GA048CP
SUCTION FAN MTR 		$264.02 2
TO
