29 - Cooling System - 29.2 - High Temp Main Radiators & Fans

McLaren Speedtail

Find Your Part

McLaren Speedtail - 29 - COOLING SYSTEM - 29.2 - HIGH TEMP MAIN RADIATORS & FANS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12A0875CP CONDENSER - HVAC - RH $2,498.22 To Order
Photo Part No Description Price (each) Stock
12A0822CP CONDENSER - HVAC - LH $2,498.22 To Order
Photo Part No Description Price (each) Stock
12L0036CP RADIATOR - ENGINE COOLANT - RH $3,777.80 To Order
Photo Part No Description Price (each) Stock
12L0009CP RADIATOR - ENGINE COOLANT - LH $3,777.80 To Order
12L0149CP ASSY-CONDENSER-RADIATOR-LH Enquire To Order
Photo Part No Description Price (each) Stock
15LA052CP FAN ASSY $342.38 To Order
Photo Part No Description Price (each) Stock
00RA065 SCREW - M6X12-8.8 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA188 SHOULDER BOLT - M6X10 Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RC048 WASHER - FORM C - 21X1.6 - M8 Enquire To Order
Photo Part No Description Price (each) Stock
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
00RG035 REEVITE - 15.9X3.2X8X82X5.4 Enquire To Order
Photo Part No Description Price (each) Stock
12L0231CP FOAM - SIDES - CONDENSER $151.05 To Order
Photo Part No Description Price (each) Stock
12L0230CP FOAM - LOWER FRONT - CONDENSER $81.23 To Order
Photo Part No Description Price (each) Stock
00RB057 CLIP - 39-45MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB023 CLIP SPACER - 1MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RL010 CABLE TIE - SF175-50X Enquire To Order
Photo Part No Description Price (each) Stock
00RB035 Cable Tie - Female - Dia 8-20 Enquire To Order

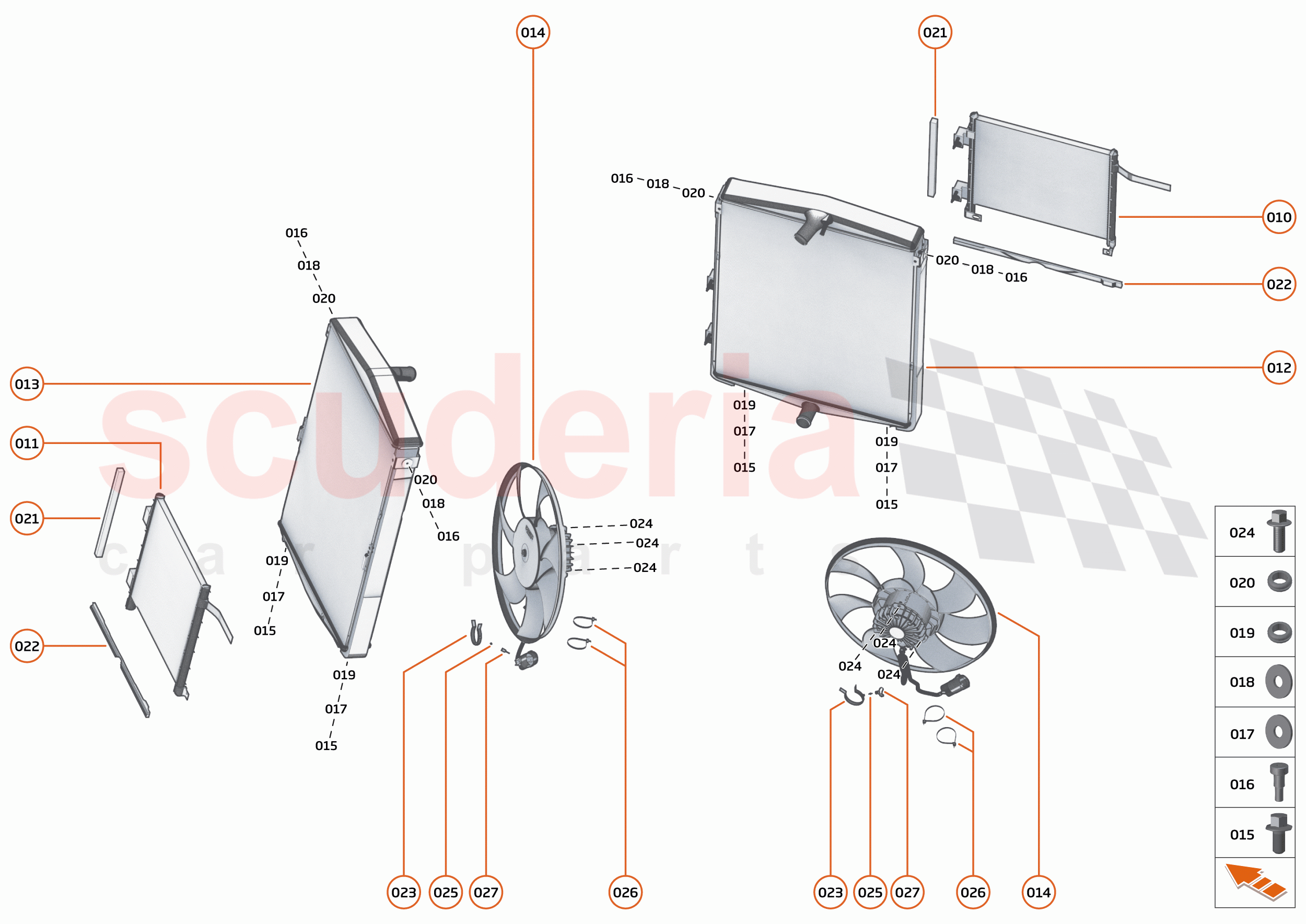

29 - COOLING SYSTEM - 29.2 - HIGH TEMP MAIN RADIATORS & FANS of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RL001
CABLE TIE - FIRTREE BASE 		- 1
PE
 Enquire
000 00RA600
SCREW - HEX HEAD - M6X1X20-8.8-78 		- 2
PE
 Enquire
010 12A0875CP
CONDENSER - HVAC - RH 		$2,498.22 1
TO
011 12A0822CP
CONDENSER - HVAC - LH 		$2,498.22 1
TO
012 12L0036CP
RADIATOR - ENGINE COOLANT - RH 		$3,777.80 1
TO
013 12L0009CP
RADIATOR - ENGINE COOLANT - LH 		$3,777.80 1
TO
013 12L0149CP
ASSY-CONDENSER-RADIATOR-LH 		- 1
PE
 Enquire
014 15LA052CP
FAN ASSY
FAN ASSY; 		$342.38 2
TO
015 00RA065
SCREW - M6X12-8.8 - FLANGE HEX 		- 4
PE
 Enquire
016 00RA188
SHOULDER BOLT - M6X10 		- 4
PE
 Enquire
017 00RC043
WASHER - M6XOD25 		- 4
PE
 Enquire
018 00RC048
WASHER - FORM C - 21X1.6 - M8 		- 4
PE
 Enquire
019 00RG011
GROMMET - DIA 19 - RUBBER 		- 4
PE
 Enquire
020 00RG035
REEVITE - 15.9X3.2X8X82X5.4 		- 4
PE
 Enquire
021 12L0231CP
FOAM - SIDES - CONDENSER 		$151.05 1
TO
022 12L0230CP
FOAM - LOWER FRONT - CONDENSER 		$81.23 1
TO
023 00RB057
CLIP - 39-45MM - FEMALE 		- 2
PE
 Enquire
024 00RX001
BOLT - M5X16 - HEX 		- 6
PE
 Enquire
024 00RA063
Screw - M5x16 - Hex 		- 6
PE
 Enquire
025 00RB023
CLIP SPACER - 1MM - MALE 		- 2
PE
 Enquire
026 00RL010
CABLE TIE - SF175-50X 		- 4
PE
 Enquire
027 00RB035
Cable Tie - Female - Dia 8-20 		- 1
PE
 Enquire
