28 - Fuel System - 28.3 - Fuel Filler Neck

McLaren Speedtail

Find Your Part

McLaren Speedtail - 28 - FUEL SYSTEM - 28.3 - FUEL FILLER NECK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11K0174CP FUNNEL - FUEL FILLER $152.32 To Order
Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
23KA037CP ASSY - FUEL FILLER - CAP LESS - FUEL FILLER - CAPLESS $428.26 To Order
Photo Part No Description Price (each) Stock
15KA040CP GASKET - FUEL FILLER $14.21 To Order
Photo Part No Description Price (each) Stock
00RB096 STEPLESS EAR CLAMP - 16.2-706R Enquire To Order
Photo Part No Description Price (each) Stock
23KA036CP HOSE-RECIRCULATION-FUEL FILLER - RECIRCULATION - FUEL FILLER $112.85 To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC056 Washer - M5x12.5x1 Form C Enquire To Order
Photo Part No Description Price (each) Stock
11K0270CP LOCKING RING - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
23AE961CP CAP FILLER NECK BUMP ON $4.85 To Order

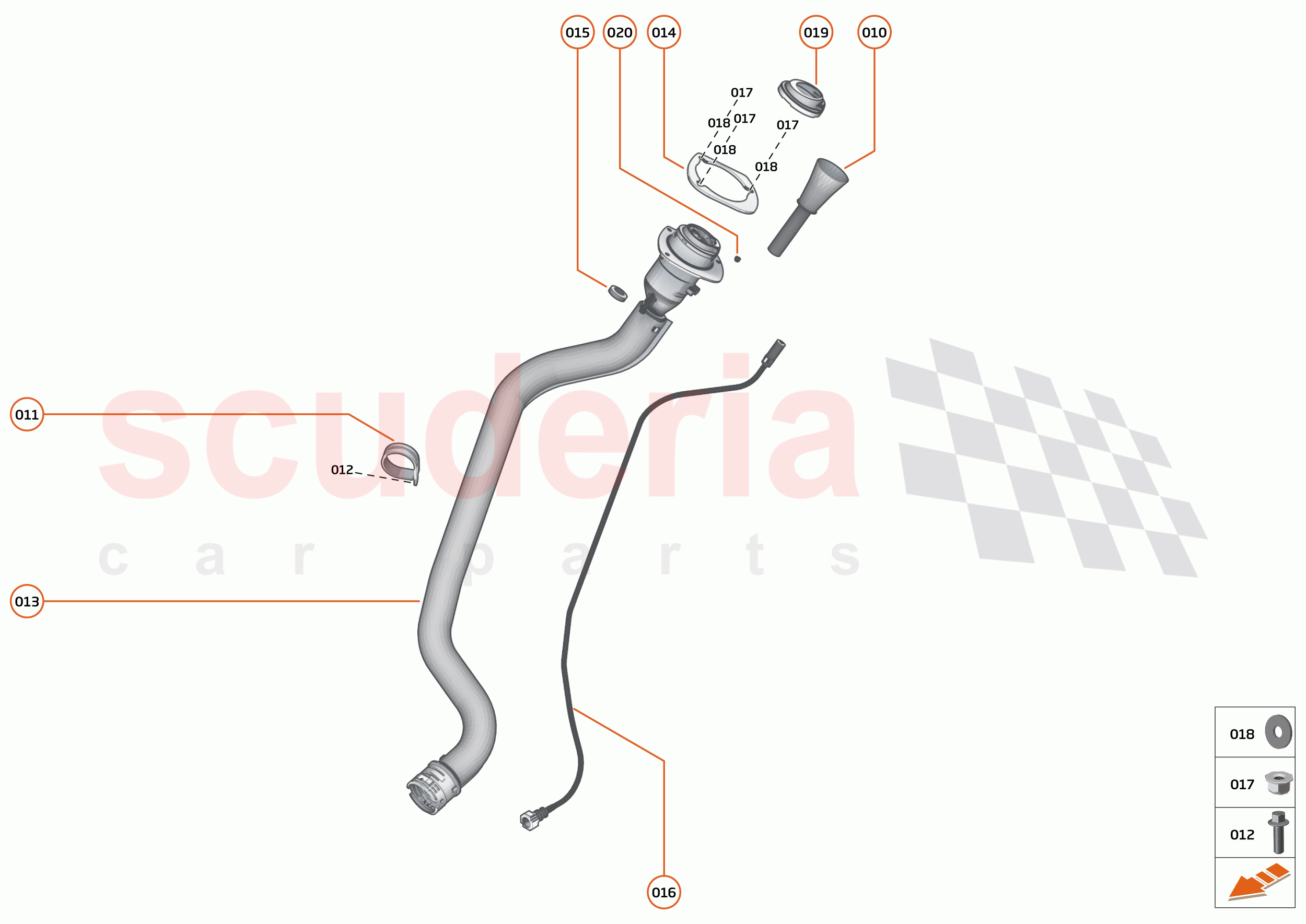

28 - FUEL SYSTEM - 28.3 - FUEL FILLER NECK of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11K0174CP
FUNNEL - FUEL FILLER 		$152.32 1
TO
011 00RB029
P CLIP - DIA 45-M6 		- 1
PE
 Enquire
012 00RA083
SCREW - M6X20 - FLANGE HEX 		- 1
PE
 Enquire
013 23KA037CP
ASSY - FUEL FILLER - CAP LESS - FUEL FILLER - CAPLESS 		$428.26 1
TO
014 15KA040CP
GASKET - FUEL FILLER 		$14.21 1
TO
015 00RB096
STEPLESS EAR CLAMP - 16.2-706R 		- 1
PE
 Enquire
016 23KA036CP
HOSE-RECIRCULATION-FUEL FILLER - RECIRCULATION - FUEL FILLER 		$112.85 1
TO
017 00RA582
NUT - M5 - HEX 		- 3
PE
 Enquire
018 00RC056
Washer - M5x12.5x1 Form C 		- 3
PE
 Enquire
019 11K0270CP
LOCKING RING - FUEL FILLER 		- 1
PE
 Enquire
020 23AE961CP
CAP FILLER NECK BUMP ON 		$4.85 -
TO
