28 - Fuel System - 28.1 - Fuel Tank

McLaren Speedtail

Find Your Part

McLaren Speedtail - 28 - FUEL SYSTEM - 28.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
23KA021CP ASSY-FUEL TANK-COMPLETE Enquire To Order
Photo Part No Description Price (each) Stock
12K0229CP SEAL - RETAINING RING - FUEL PUMP $71.07 To Order
Photo Part No Description Price (each) Stock
15KA004CP FLANGE - FUEL TANK $121.84 To Order
Photo Part No Description Price (each) Stock
23KA029CP FOAM PAD-FUEL TANK-UPR RR - FUEL TANK - REAR Enquire To Order
Photo Part No Description Price (each) Stock
14KA056CP CONTROLLER - FUEL PUMP $342.38 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
23KA027CP FOAM PAD-FUEL TANK-FRNT - FUEL TANK - FRONT - LOWER - RH $13.03 To Order
Photo Part No Description Price (each) Stock
23KA057CP FOAM PAD-FUEL TANK-SEAT BACK $13.87 To Order
Photo Part No Description Price (each) Stock
23KA061CP FOAM PAD-FUEL TANK FRT OTR $17.11 To Order

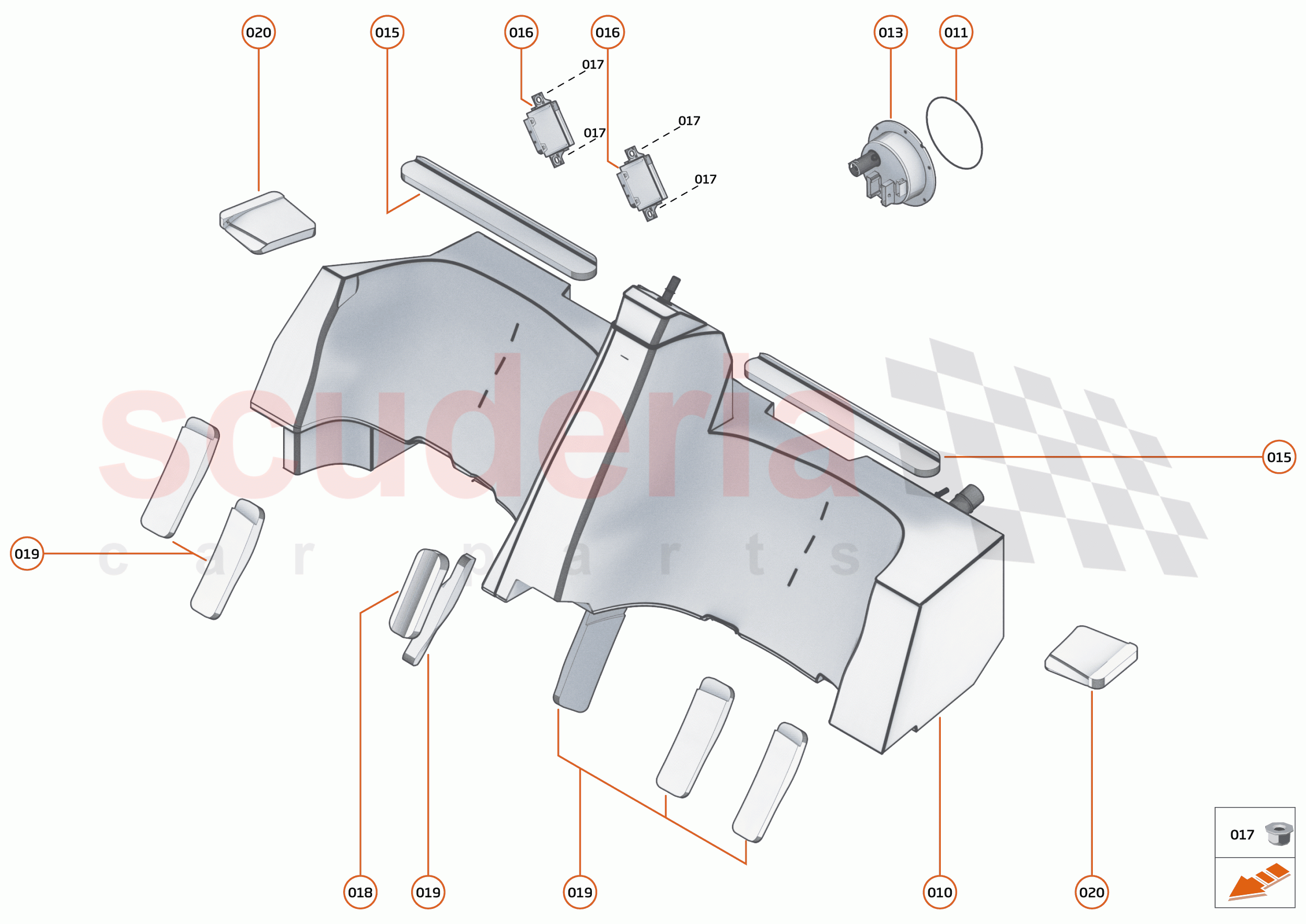

28 - FUEL SYSTEM - 28.1 - FUEL TANK of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1034CP
Clip - Fuel Injector - Engine 		$8.31 1
TO
010 23KA021CP
ASSY-FUEL TANK-COMPLETE 		- 1
PE
 Enquire
011 12K0229CP
SEAL - RETAINING RING - FUEL PUMP 		$71.07 1
TO
013 15KA004CP
FLANGE - FUEL TANK 		$121.84 1
TO
015 23KA029CP
FOAM PAD-FUEL TANK-UPR RR - FUEL TANK - REAR 		- 2
PE
 Enquire
016 14KA056CP
CONTROLLER - FUEL PUMP 		$342.38 2
TO
017 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
018 23KA027CP
FOAM PAD-FUEL TANK-FRNT - FUEL TANK - FRONT - LOWER - RH 		$13.03 1
TO
019 23KA057CP
FOAM PAD-FUEL TANK-SEAT BACK 		$13.87 6
TO
020 23KA061CP
FOAM PAD-FUEL TANK FRT OTR 		$17.11 2
TO
