Name: 25 - ACOUSTIC SYSTEM - 25.1 - EXHAUST SOUND GENERATOR (ESG)
Rating: 4.6 (1 reviews)

Diagram
INFO

25 - ACOUSTIC SYSTEM - 25.1 - EXHAUST SOUND GENERATOR (ESG) of McLaren McLaren Speedtail

McLaren Speedtail - 25 - ACOUSTIC SYSTEM - 25.1 - EXHAUST SOUND GENERATOR (ESG)

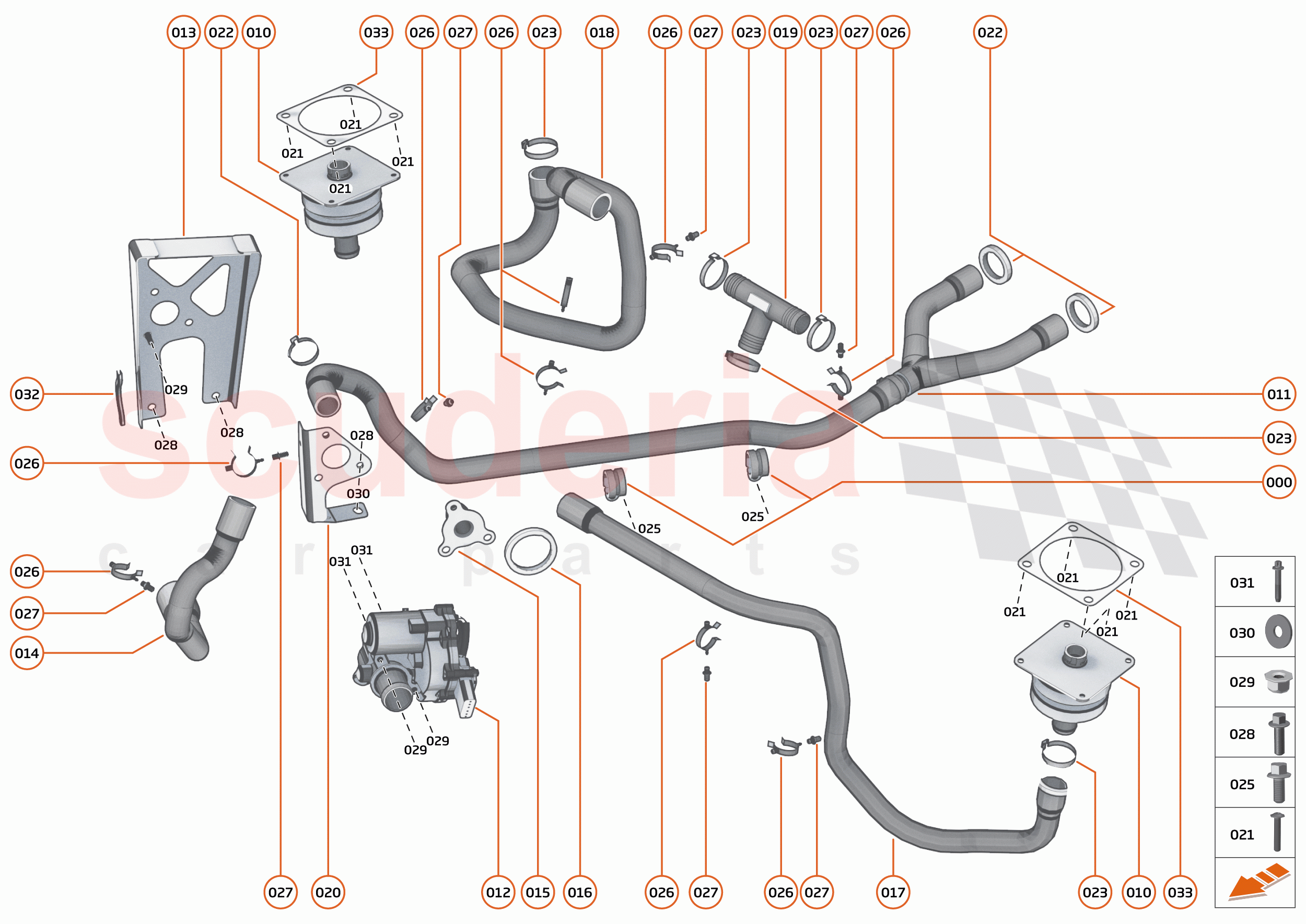

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14F0664CP	SYMPOSER - ISG \ ESG	$629.62	To Order

Photo	Part No	Description	Price (each)	Stock
	23HA094CP	HOSE-ESG-T PIECE TO THROTTLE	$209.00	To Order

Photo	Part No	Description	Price (each)	Stock
	23HA055CP	THROTTLE-ESG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23HA096CP	BRKT ESG-THROTTLE	$102.77	To Order

Photo	Part No	Description	Price (each)	Stock
	23HA095CP	HOSE-ESG-THROTTLE TO T PIECE	$128.96	To Order

Photo	Part No	Description	Price (each)	Stock
	23HA087CP	ESG THROTTLE ADAPTER	$568.69	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB163	HOSE CLAMP - STEPLESS EAR - 42 DIA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23HA051CP	HOSE LH-ESG-T PIECE TO SYMPOSE	$171.31	To Order

Photo	Part No	Description	Price (each)	Stock
	23HA052CP	HOSE RH-ESG-T PIECE TO SYMPOSE	$171.31	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0419CP	ADAPTOR - INTAKE SOUND GENERATOR - HOSE TO SERVICE PANEL - LH	$35.54	To Order

Photo	Part No	Description	Price (each)	Stock
	23HA098CP	BRKT ESG-THROTTLE - SUPPORT	$95.91	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB065	STEPLESS EAR CLAMP - 30.1-706	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA577	NUT-HX-FL-M6X1-8-ZFB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA627	BOLT - HEX - FLANGED - M6X80	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RE014	EDGE PROTECTOR - WATER CHARGE AIR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA121CP	SEAL - ISG \ ESG - BULKHEAD	$35.54	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	14F0664CP	SYMPOSER - ISG \ ESG	14F0664CP SYMPOSER - ISG \ ESG	$629.62	2	TO
011	23HA094CP	HOSE-ESG-T PIECE TO THROTTLE	23HA094CP HOSE-ESG-T PIECE TO THROTTLE	$209.00	1	TO
012	23HA055CP	THROTTLE-ESG	23HA055CP THROTTLE-ESG	-	1	PE	Enquire
013	23HA096CP	BRKT ESG-THROTTLE	23HA096CP BRKT ESG-THROTTLE	$102.77	1	TO
014	23HA095CP	HOSE-ESG-THROTTLE TO T PIECE	23HA095CP HOSE-ESG-THROTTLE TO T PIECE	$128.96	1	TO
015	23HA087CP	ESG THROTTLE ADAPTER	23HA087CP ESG THROTTLE ADAPTER	$568.69	1	TO
016	00RB163	HOSE CLAMP - STEPLESS EAR - 42 DIA	00RB163 HOSE CLAMP - STEPLESS EAR - 42 DIA	-	1	PE	Enquire
017	23HA051CP	HOSE LH-ESG-T PIECE TO SYMPOSE	23HA051CP HOSE LH-ESG-T PIECE TO SYMPOSE	$171.31	1	TO
018	23HA052CP	HOSE RH-ESG-T PIECE TO SYMPOSE	23HA052CP HOSE RH-ESG-T PIECE TO SYMPOSE	$171.31	1	TO
019	12F0419CP	ADAPTOR - INTAKE SOUND GENERATOR - HOSE TO SERVICE PANEL - LH	12F0419CP ADAPTOR - INTAKE SOUND GENERATOR - HOSE TO SERVICE PANEL - LH	$35.54	1	TO
020	23HA098CP	BRKT ESG-THROTTLE - SUPPORT	23HA098CP BRKT ESG-THROTTLE - SUPPORT	$95.91	1	TO
021	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	-	8	PE	Enquire
022	00RB065	STEPLESS EAR CLAMP - 30.1-706	00RB065 STEPLESS EAR CLAMP - 30.1-706	-	3	PE	Enquire
023	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	00RB139 STEPLESS EAR CLAMP - 34.6-706DR	-	5	PE	Enquire
024	00RB097	P-CLIP - DIA 25 - M6	00RB097 P-CLIP - DIA 25 - M6	-	2	PE	Enquire
025	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	2	PE	Enquire
026	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	-	9	PE	Enquire
027	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE	-	7	PE	Enquire
028	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX	-	3	PE	Enquire
029	00RA577	NUT-HX-FL-M6X1-8-ZFB	00RA577 NUT-HX-FL-M6X1-8-ZFB	-	3	PE	Enquire
030	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6	-	1	PE	Enquire
031	00RA627	BOLT - HEX - FLANGED - M6X80	00RA627 BOLT - HEX - FLANGED - M6X80	-	2	PE	Enquire
032	00RE014	EDGE PROTECTOR - WATER CHARGE AIR COOLER	00RE014 EDGE PROTECTOR - WATER CHARGE AIR COOLER	-	1	PE	Enquire
033	14FA121CP	SEAL - ISG \ ESG - BULKHEAD	14FA121CP SEAL - ISG \ ESG - BULKHEAD	$35.54	2	TO

25 - Acoustic System - 25.1 - Exhaust Sound Generator (Esg)

McLaren Speedtail

McLaren Speedtail - 25 - ACOUSTIC SYSTEM - 25.1 - EXHAUST SOUND GENERATOR (ESG)
