McLaren Speedtail - 36 - REAR AXLE MOTORS & CONTROLLERS - 36.1 - REAR AXLE E-MOTORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
23JA340CP E-MOTOR RESOLVER HARNESS $4,390.85 To Order
Photo Part No Description Price (each) Stock
23JA013CP ASSY - E-MOTOR + PHASE CABLES $166,301.48 To Order
Photo Part No Description Price (each) Stock
00RA481 BOLT - HEX HEAD - FLANGED - M8X45 Enquire To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12J0224CP BRACKET - E MOTOR $2,559.16 To Order
Photo Part No Description Price (each) Stock
00RB003 P Clip - DIA 14 Enquire To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RL010 CABLE TIE - SF175-50X Enquire To Order

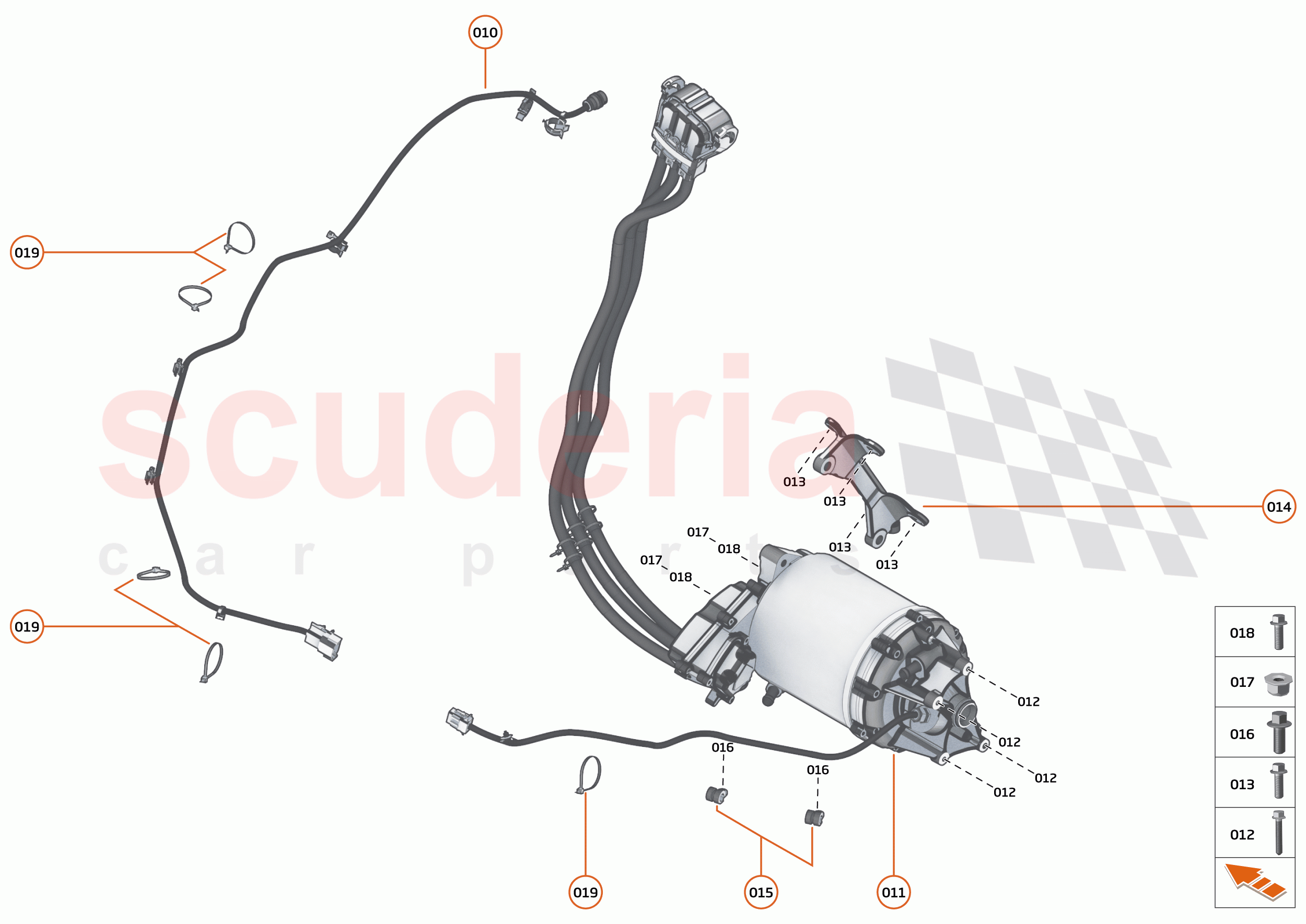

36 - REAR AXLE MOTORS & CONTROLLERS - 36.1 - REAR AXLE E-MOTORS of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 23JA340CP
E-MOTOR RESOLVER HARNESS 		$4,390.85 1
TO
011 23JA013CP
ASSY - E-MOTOR + PHASE CABLES 		$166,301.48 1
TO
012 00RA481
BOLT - HEX HEAD - FLANGED - M8X45 		- 4
PE
 Enquire
013 00RA457
SCREW - M10X30-10.9 - HEX 		- 4
PE
 Enquire
014 12J0224CP
BRACKET - E MOTOR 		$2,559.16 1
TO
015 00RB003
P Clip - DIA 14 		- 2
PE
 Enquire
016 00RA061
Screw - M6x16 - Flange Hex 		- 2
PE
 Enquire
017 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 2
PE
 Enquire
018 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2
PE
 Enquire
019 00RL010
CABLE TIE - SF175-50X 		- 5
PE
 Enquire
