McLaren Speedtail - 35 - ENERGY STORAGE SYSTEM - 35.1 - ENERGY STORAGE UNIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
23JA014CP ENERGY STORAGE UNIT $316,715.74 To Order
Photo Part No Description Price (each) Stock
23JA188CP Color codes: PLUGS Enquire To Order
Photo Part No Description Price (each) Stock
23JA031CP ELEC - BATTERY MASTER UNIT $7,555.62 To Order
Photo Part No Description Price (each) Stock
23JA048CP ASSY - HV ESS COVER Enquire To Order
Photo Part No Description Price (each) Stock
23JA065CP ASSY-HV ESS STRUCTURAL FLOOR $63,679.30 To Order
Photo Part No Description Price (each) Stock
23JA136CP SERVICE PANEL - HV ESS COVER - $5,307.07 To Order
Photo Part No Description Price (each) Stock
23JA092CP ASSY- BATTERY EXP TANK $4,632.55 To Order
Photo Part No Description Price (each) Stock
23JA230CP P-CLIP 60X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
23JA088CP PUMP - ESS DIELECTRIC OIL $2,051.37 To Order
Photo Part No Description Price (each) Stock
23JA294CP BATTERY PUMP BRACKET $274.40 To Order
Photo Part No Description Price (each) Stock
23JA113CP HEAT EXCHANGER - ESS Enquire To Order
Photo Part No Description Price (each) Stock
23JA167CP ASSY - FILL AND RETURN PIPES $985.00 To Order
Photo Part No Description Price (each) Stock
23JA186CP BLEED STAND - ESS OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
23JA209CP ASSY - PUMP INLET $1,792.36 To Order
Photo Part No Description Price (each) Stock
23JA210CP ASSY - HX TO COVER $1,128.59 To Order
Photo Part No Description Price (each) Stock
23JA211CP ASSY - INLET STAND + HOSE Enquire To Order
Photo Part No Description Price (each) Stock
23JA214CP ASSY - DOUBLE PIPE STAND Enquire To Order
Photo Part No Description Price (each) Stock
23JA162CP HOSE - HEAT EXCHANGER INLET $225.41 To Order
Photo Part No Description Price (each) Stock
23JA224CP ASSY - PUMP OUT AND HT RETURN Enquire To Order
Photo Part No Description Price (each) Stock
23JA225CP ASSY - ESS OUTLET BLEED INTERF $1,128.59 To Order
Photo Part No Description Price (each) Stock
23JA223CP HX TO ESS INLET INTERFACE GASK $17.25 To Order
Photo Part No Description Price (each) Stock
23JA226CP PUMP OUT AND HT RETURN INTERFA $17.25 To Order
Photo Part No Description Price (each) Stock
23JA227CP ESS OUTLET BLEED INTERFACE GAS $17.25 To Order
Photo Part No Description Price (each) Stock
00RA485 BOLT - HEX HEAD - FLANGED - M8X25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA600 SCREW - HEX HEAD - M6X1X20-8.8-78 Enquire To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA484 BOLT - HEX HEAD - FLANGED - M8X20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA483 SCREW - BUTTON HEAD - TORX - M6X16 Enquire To Order

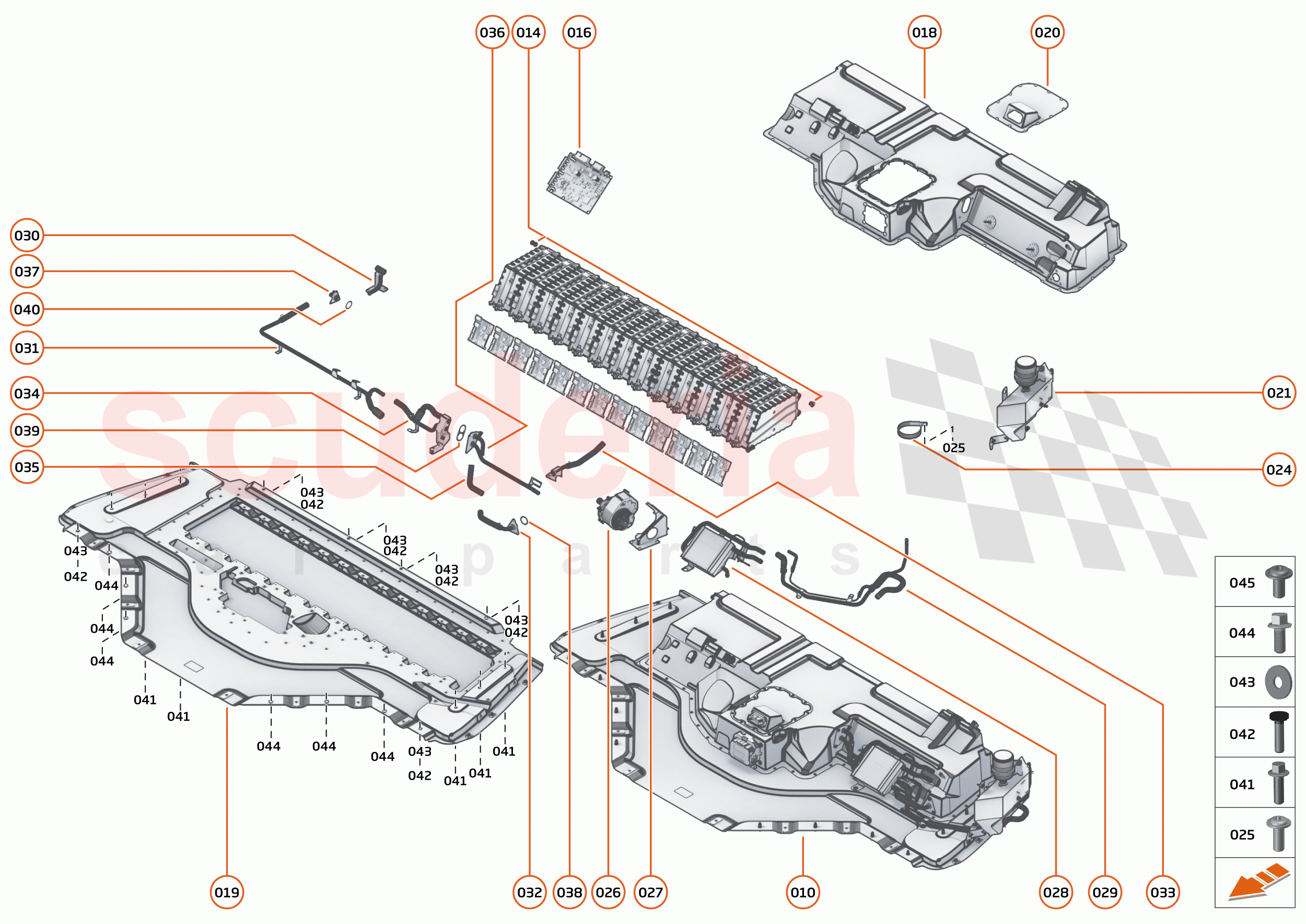

35 - ENERGY STORAGE SYSTEM - 35.1 - ENERGY STORAGE UNIT of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 23JA014CP
ENERGY STORAGE UNIT 		$316,715.74 1
TO
012 23JA168CP
MODULE - HIGH POWER 		$4,612.41 13
TO
014 23JA188CP
Color codes: PLUGS
Color codes: PLUGS; 		- 1
PE
 Enquire
016 23JA031CP
ELEC - BATTERY MASTER UNIT 		$7,555.62 1
TO
017 23JA047CP
ELEC - MODULE CONTROL BOARD 		$832.73 13
TO
018 23JA048CP
ASSY - HV ESS COVER 		- 1
PE
 Enquire
019 23JA065CP
ASSY-HV ESS STRUCTURAL FLOOR 		$63,679.30 1
TO
020 23JA136CP
SERVICE PANEL - HV ESS COVER - 		$5,307.07 1
TO
021 23JA092CP
ASSY- BATTERY EXP TANK 		$4,632.55 1
TO
024 23JA230CP
P-CLIP 60X12 		- 1
PE
 Enquire
025 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 1
PE
 Enquire
026 23JA088CP
PUMP - ESS DIELECTRIC OIL 		$2,051.37 1
TO
027 23JA294CP
BATTERY PUMP BRACKET 		$274.40 1
TO
028 23JA113CP
HEAT EXCHANGER - ESS 		- 1
PE
 Enquire
029 23JA167CP
ASSY - FILL AND RETURN PIPES 		$985.00 1
TO
030 23JA186CP
BLEED STAND - ESS OUTLET 		- 1
PE
 Enquire
031 23JA209CP
ASSY - PUMP INLET 		$1,792.36 1
TO
032 23JA210CP
ASSY - HX TO COVER 		$1,128.59 1
TO
033 23JA211CP
ASSY - INLET STAND + HOSE 		- 1
PE
 Enquire
034 23JA214CP
ASSY - DOUBLE PIPE STAND 		- 1
PE
 Enquire
035 23JA162CP
HOSE - HEAT EXCHANGER INLET 		$225.41 1
TO
036 23JA224CP
ASSY - PUMP OUT AND HT RETURN 		- 1
PE
 Enquire
037 23JA225CP
ASSY - ESS OUTLET BLEED INTERF 		$1,128.59 1
TO
038 23JA223CP
HX TO ESS INLET INTERFACE GASK 		$17.25 1
TO
039 23JA226CP
PUMP OUT AND HT RETURN INTERFA 		$17.25 1
TO
040 23JA227CP
ESS OUTLET BLEED INTERFACE GAS 		$17.25 1
TO
041 00RA485
BOLT - HEX HEAD - FLANGED - M8X25 		- 6
PE
 Enquire
042 00RA600
SCREW - HEX HEAD - M6X1X20-8.8-78 		- 6
PE
 Enquire
043 00RC013
WASHER - M6X18X1.6 		- 6
PE
 Enquire
044 00RA484
BOLT - HEX HEAD - FLANGED - M8X20 		- 6
PE
 Enquire
045 00RA483
SCREW - BUTTON HEAD - TORX - M6X16 		- 1
PE
 Enquire
