22 - Engine - 22.8 - Electrical System

McLaren Speedtail

Find Your Part

McLaren Speedtail - 22 - ENGINE - 22.8 - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12F0709CP BRACKET - OIL DRAIN HOSE $40.30 To Order
Photo Part No Description Price (each) Stock
12F0710CP CLIP - ONE WAY - RAYMOND $25.37 To Order
Photo Part No Description Price (each) Stock
14F0478CP BRACKET - ENGINE HARNESS $41.86 To Order
Photo Part No Description Price (each) Stock
11F1892CP COIL- IGNITION $243.70 IN STOCK
Photo Part No Description Price (each) Stock
11F1893CP PLUG- SPARK- NGK T20231A HR8 $44.96 IN STOCK
Photo Part No Description Price (each) Stock
12F0757CP CONNECTOR MOUNT - TYCO = 368260 $18.64 To Order
Photo Part No Description Price (each) Stock
12F0726CP SPACER - CRANK POSITION SENSOR $142.16 To Order
Photo Part No Description Price (each) Stock
13F0769CP HARNESS - ENGINE LINK - INJECTORS - RH $317.79 To Order
Photo Part No Description Price (each) Stock
13FA018SP HARNESS - VEE LINK - LH $459.84 To Order
Photo Part No Description Price (each) Stock
13FA019SP HARNESS - VEE KINK - RH $459.84 To Order
Photo Part No Description Price (each) Stock
13F0768CP HARNESS - INTAKE $459.84 To Order
Photo Part No Description Price (each) Stock
12F0725CP SENSOR - ENGINE - CRANK POSITION $284.34 To Order

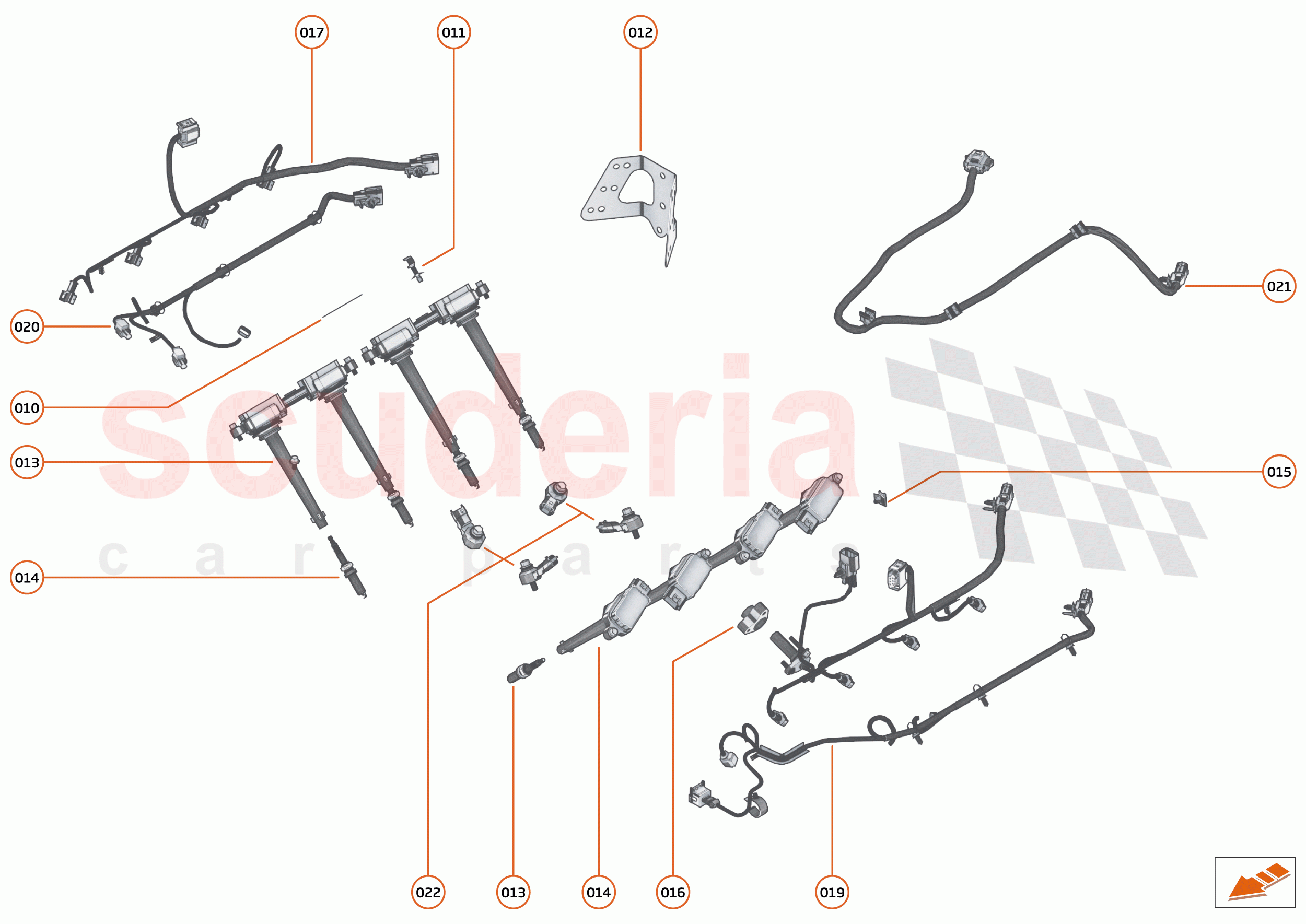

22 - ENGINE - 22.8 - ELECTRICAL SYSTEM of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RB139
STEPLESS EAR CLAMP - 34.6-706DR 		- 1
PE
 Enquire
000 00RB095
Oetiker Clip - 16.2 		- 1
PE
 Enquire
000 00RB093
OETIKER CLIP - 16.6 		- 1
PE
 Enquire
000 00RB094
OETIKER CLIP - 21.0 		- 2
PE
 Enquire
000 13F0858CP
FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE 		$81.23 1
TO
000 12F0501CP
BREATHER ASSY - ENGINE 		$1,359.55 1
TO
000 11F2030CP
BRACKET - CAM COVER - LH - CCV - VAC 		$28.07 2
TO
000 11F2008CP
HOSE - BREATHER SYSTEM - INLET MANIFOLD - ENGINE 		$324.96 1
TO
000 11F1777CP
BOLT - M6X40 - HEX 		$4.65 31
TO
000 11F1034CP
Clip - Fuel Injector - Engine 		$8.31 8
TO
010 12F0709CP
BRACKET - OIL DRAIN HOSE 		$40.30 1
TO
011 12F0710CP
CLIP - ONE WAY - RAYMOND 		$25.37 1
TO
012 14F0478CP
BRACKET - ENGINE HARNESS 		$41.86 1
TO
013 11F1892CP
COIL- IGNITION
IN STOCK 		$243.70 8
IN
014 11F1893CP
PLUG- SPARK- NGK T20231A HR8
IN STOCK 		$44.96 8
IN
015 12F0757CP
CONNECTOR MOUNT - TYCO = 368260 		$18.64 1
TO
016 12F0726CP
SPACER - CRANK POSITION SENSOR 		$142.16 1
TO
017 13F0769CP
HARNESS - ENGINE LINK - INJECTORS - RH 		$317.79 1
TO
018 13F0770CP
HARNESS - ENGINE LINK - INJECTORS - LH 		$317.79 1
TO
019 13FA018SP
HARNESS - VEE LINK - LH 		$459.84 1
TO
020 13FA019SP
HARNESS - VEE KINK - RH 		$459.84 1
TO
021 13F0768CP
HARNESS - INTAKE 		$459.84 1
TO
022 12F0725CP
SENSOR - ENGINE - CRANK POSITION 		$284.34 1
TO
