22 - Engine - 22.12 - Engine Oil Pump & Circuit

McLaren Speedtail

Find Your Part

McLaren Speedtail - 22 - ENGINE - 22.12 - ENGINE OIL PUMP & CIRCUIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1955CP SEAL - O-RING - 23.2 $5.67 To Order
Photo Part No Description Price (each) Stock
11F1784CP BOLT - M6X80 - HEX $20.29 To Order
Photo Part No Description Price (each) Stock
12F0702CP HOSE ASSEMBLY - OIL DRAIN $167.20 To Order
Photo Part No Description Price (each) Stock
12F0708CP OETIKER CLIP - 14.6 $9.12 To Order

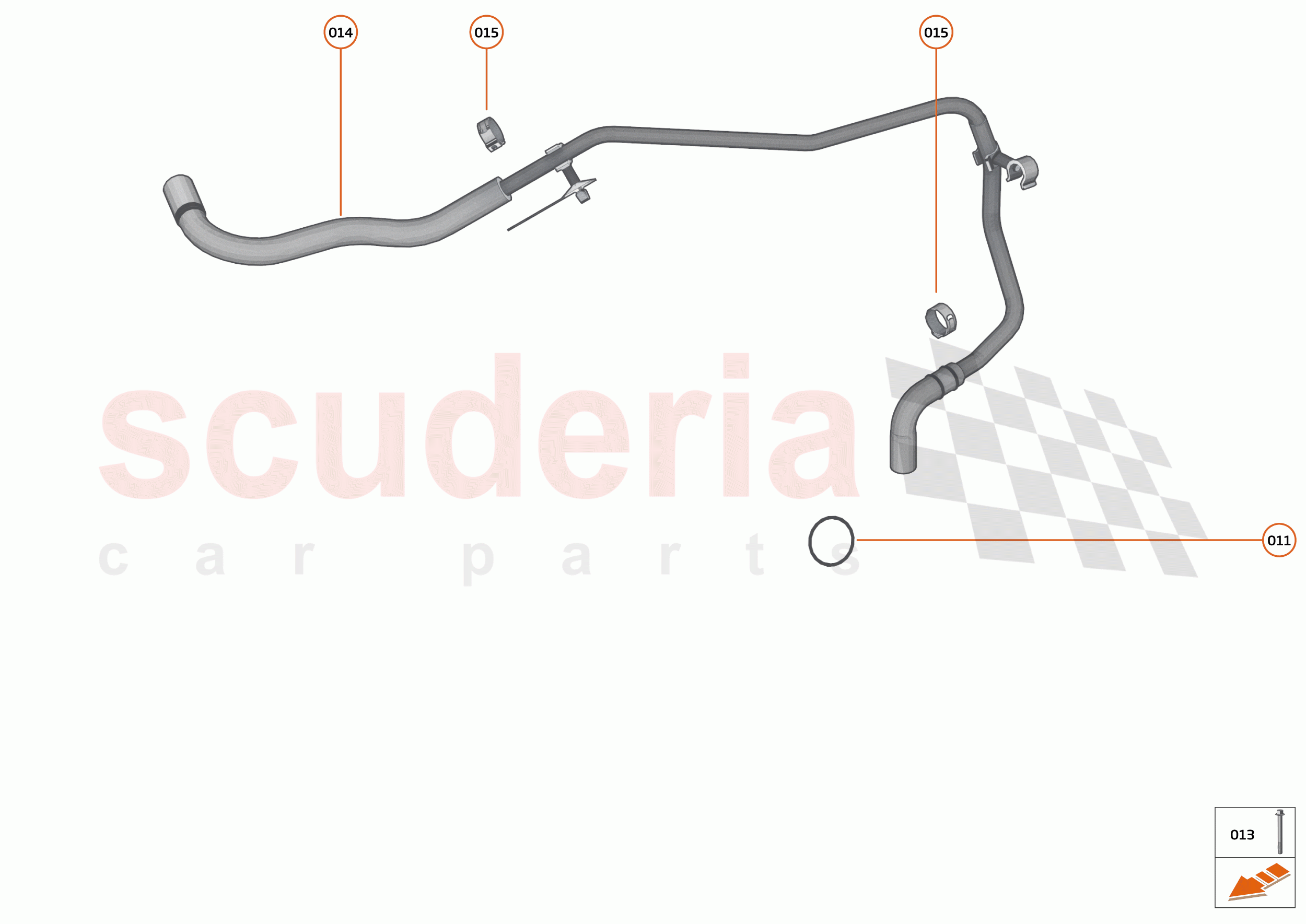

22 - ENGINE - 22.12 - ENGINE OIL PUMP & CIRCUIT of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1781CP
BOLT - M6X35 - ENGINE 		$11.14 20
TO
011 11F1955CP
SEAL - O-RING - 23.2 		$5.67 1
TO
012 11F1793CP
BOLT - M6X20 - HEX 		$11.14 3
TO
013 11F1784CP
BOLT - M6X80 - HEX 		$20.29 4
TO
014 12F0702CP
HOSE ASSEMBLY - OIL DRAIN 		$167.20 1
TO
015 12F0708CP
OETIKER CLIP - 14.6 		$9.12 2
TO
