22 - Engine - 22.11 - Engine Water Pump And Water Circuit

McLaren Speedtail

Find Your Part

McLaren Speedtail - 22 - ENGINE - 22.11 - ENGINE WATER PUMP AND WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12F0671CP BANJO BOLT - M12X1.5 $50.76 To Order
Photo Part No Description Price (each) Stock
12F0672CP BANJO BOLT - M12X1.25 $45.68 To Order
Photo Part No Description Price (each) Stock
12F0487CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH $1,970.56 To Order
Photo Part No Description Price (each) Stock
12F0684CP Banjo Bolt - M14x1.5 $45.68 To Order
Photo Part No Description Price (each) Stock
12F0685CP Washer - Sealing - M14 $10.14 To Order
Photo Part No Description Price (each) Stock
12F0489CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH $1,289.82 To Order
Photo Part No Description Price (each) Stock
12F0490CP PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - RH $1,401.43 To Order
Photo Part No Description Price (each) Stock
12F0680CP STUB PIPE ASSEMBLY - TURBO WATER FEED - LH $691.19 To Order
Photo Part No Description Price (each) Stock
12F0488CP PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - LH $1,401.43 To Order
Photo Part No Description Price (each) Stock
15FA274CP SEAL - O-RING 39.7X3.53 $5.43 To Order
Photo Part No Description Price (each) Stock
11F2167CP Pipe - Heater Feed Stub $96.45 To Order
Photo Part No Description Price (each) Stock
11F1954CP O-RING - 16-0X2-0 $5.67 To Order
Photo Part No Description Price (each) Stock
13FA050CP THERMOSTAT $264.02 To Order
Photo Part No Description Price (each) Stock
12FA004CP WATER PUMP - ENGINE - NO AC $1,832.86 To Order
Photo Part No Description Price (each) Stock
11F2433CP COVER - WATER PUMP - ENGINE $25.37 To Order
Photo Part No Description Price (each) Stock
11F2434CP GASKET SERVICE COVER WATER PUMP $16.22 IN STOCK

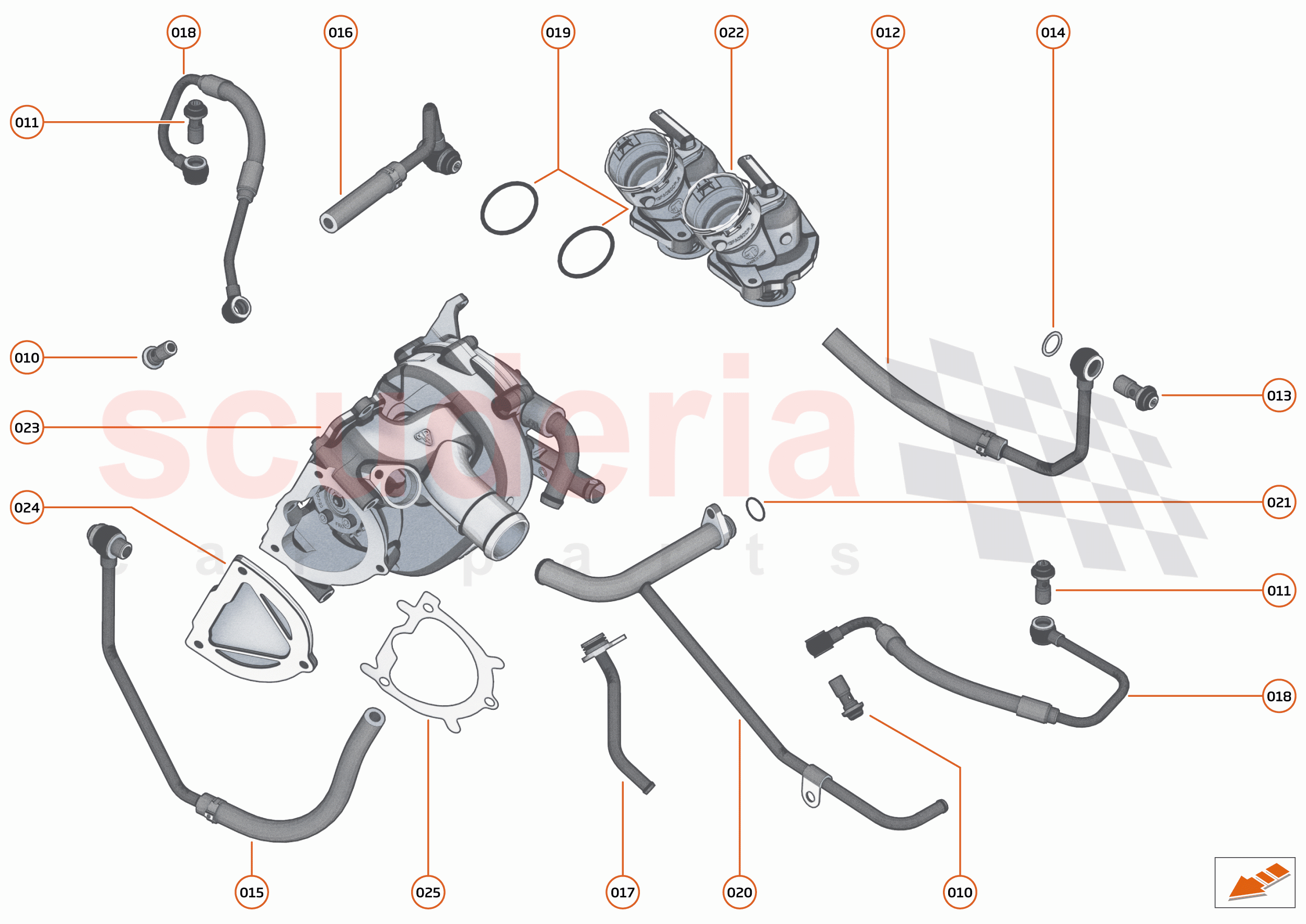

22 - ENGINE - 22.11 - ENGINE WATER PUMP AND WATER CIRCUIT of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1783CP
BOLT - M8X30 - HEX 		$14.21 4
TO
010 12F0671CP
BANJO BOLT - M12X1.5 		$50.76 1
TO
011 12F0672CP
BANJO BOLT - M12X1.25 		$45.68 1
TO
012 12F0487CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH 		$1,970.56 1
TO
013 12F0684CP
Banjo Bolt - M14x1.5 		$45.68 1
TO
014 12F0685CP
Washer - Sealing - M14 		$10.14 2
TO
015 12F0489CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH 		$1,289.82 1
TO
016 12F0490CP
PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - RH 		$1,401.43 1
TO
017 12F0680CP
STUB PIPE ASSEMBLY - TURBO WATER FEED - LH 		$691.19 1
TO
018 12F0488CP
PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - LH 		$1,401.43 1
TO
019 15FA274CP
SEAL - O-RING 39.7X3.53 		$5.43 2
TO
020 11F2167CP
Pipe - Heater Feed Stub 		$96.45 1
TO
021 11F1954CP
O-RING - 16-0X2-0 		$5.67 1
TO
022 13FA050CP
THERMOSTAT 		$264.02 2
TO
023 12FA004CP
WATER PUMP - ENGINE - NO AC 		$1,832.86 1
TO
024 11F2433CP
COVER - WATER PUMP - ENGINE 		$25.37 1
TO
025 11F2434CP
GASKET SERVICE COVER WATER PUMP
IN STOCK 		$16.22 1
IN
