18 - Brakes - 18.8 - Brake Boost System

McLaren Speedtail

Find Your Part

McLaren Speedtail - 18 - BRAKES - 18.8 - BRAKE BOOST SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA573 BOLT - M10X1 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA585 STUD BALL - M6X9 Enquire To Order
Photo Part No Description Price (each) Stock
00RB187 CLIP - SNAPLOC - 14X7 Enquire To Order
Photo Part No Description Price (each) Stock
23CA091CP BRKT-ABS-MODULATOR $89.06 To Order
Photo Part No Description Price (each) Stock
13C0205CP ABS MODULATOR 46 PIN EUCON - PRE-FILLED $1,726.40 To Order
Photo Part No Description Price (each) Stock
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
Photo Part No Description Price (each) Stock
23CA093CP MNTG BRAKE BOOSTER Enquire To Order
Photo Part No Description Price (each) Stock
00RE012 O-RING - BRACKET - BRAKE BOOSTER Enquire To Order
Photo Part No Description Price (each) Stock
14CA150CP ASSY-BRAKE BOOSTER $1,107.77 To Order
23CA148CP ASSY-BRAKE BOOSTER 25.4 Enquire To Order
Photo Part No Description Price (each) Stock
13M0801CP VACUUM SENSOR WITH CHECK VALVE $75.52 To Order
Photo Part No Description Price (each) Stock
14CA030CP BOLT - BRAKE BOOSTER - M8X184 $29.97 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11E0022CP HEATSHIELD-WHEEL S24SOR $50.76 To Order
12M0735CP SENSOR - WHEEL SPEED $152.32 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
11M0432CP SENSOR - WHEEL SPEED - REAR $201.40 To Order
Photo Part No Description Price (each) Stock
15MA186CP SENSOR - YAW RATE $324.96 To Order
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order

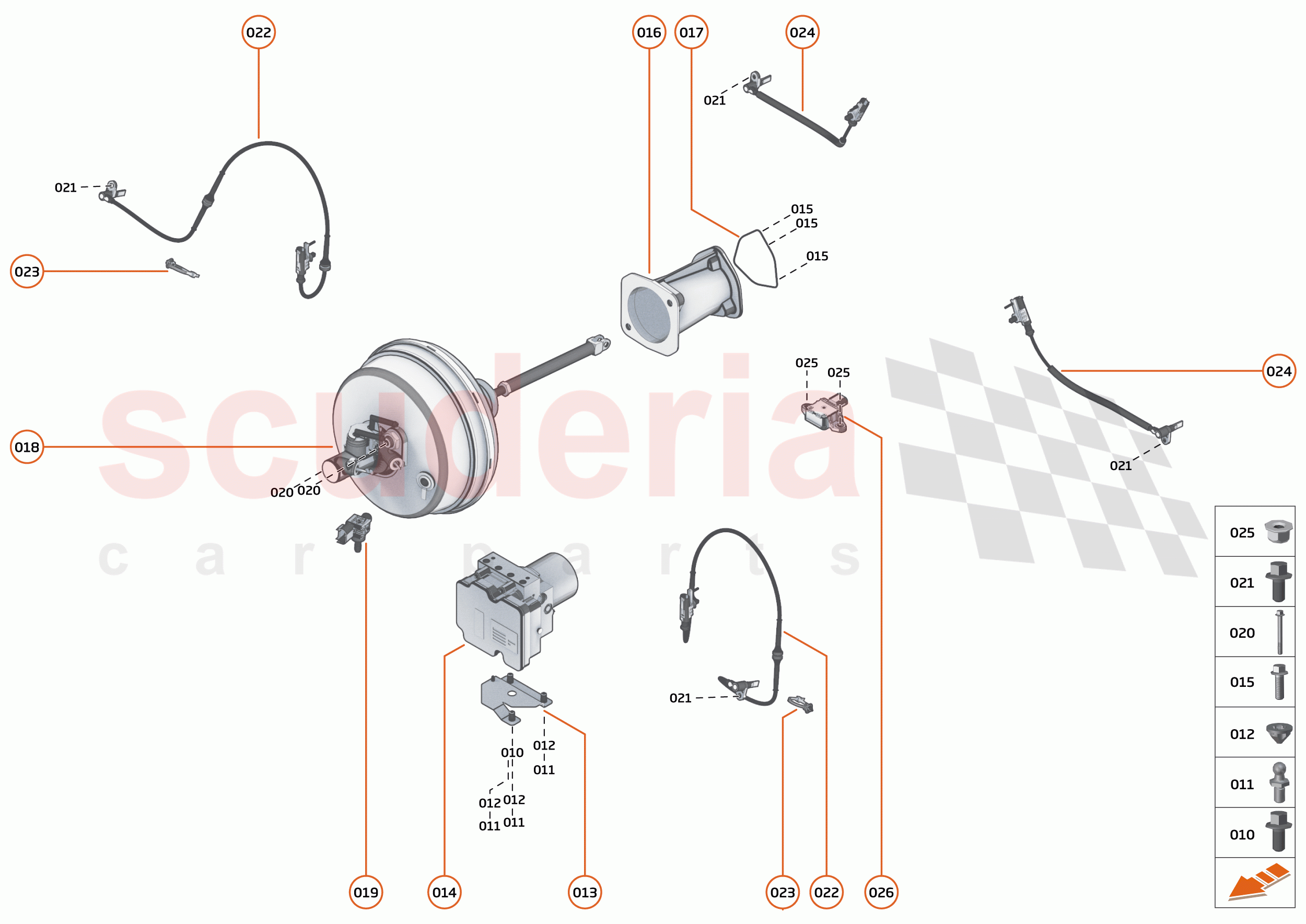

18 - BRAKES - 18.8 - BRAKE BOOST SYSTEM of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA486
BOLT - HEX HEAD - FLANGED - M8X30 		- 3
PE
 Enquire
010 00RA573
BOLT - M10X1 - HEX 		- 1
PE
 Enquire
011 00RA585
STUD BALL - M6X9 		- 3
PE
 Enquire
012 00RB187
CLIP - SNAPLOC - 14X7 		- 3
PE
 Enquire
013 23CA091CP
BRKT-ABS-MODULATOR 		$89.06 1
TO
014 13C0205CP
ABS MODULATOR 46 PIN EUCON - PRE-FILLED 		$1,726.40 1
TO
015 00RA557
BOLT - HEX HEAD - M8X1.25X25 		- 3
PE
 Enquire
016 23CA093CP
MNTG BRAKE BOOSTER 		- 1
PE
 Enquire
017 00RE012
O-RING - BRACKET - BRAKE BOOSTER 		- 1
PE
 Enquire
018 14CA150CP
ASSY-BRAKE BOOSTER 		$1,107.77 1
TO
018 23CA148CP
ASSY-BRAKE BOOSTER 25.4 		- 1
PE
 Enquire
019 13M0801CP
VACUUM SENSOR WITH CHECK VALVE 		$75.52 1
TO
020 14CA030CP
BOLT - BRAKE BOOSTER - M8X184 		$29.97 2
TO
021 00RX003
BOLT - M6X1X12 - HEX 		- 4
PE
 Enquire
022 11E0022CP
HEATSHIELD-WHEEL S24SOR 		$50.76 2
TO
022 12M0735CP
SENSOR - WHEEL SPEED 		$152.32 2
TO
023 00RL001
CABLE TIE - FIRTREE BASE 		- 2
PE
 Enquire
024 11M0432CP
SENSOR - WHEEL SPEED - REAR 		$201.40 2
TO
026 15MA186CP
SENSOR - YAW RATE 		$324.96 1
TO
026 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
