18 - Brakes - 18.10 - Brake Pipes

McLaren Speedtail

Find Your Part

McLaren Speedtail - 18 - BRAKES - 18.10 - BRAKE PIPES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
23CA011CP PIPE-BRAKE-ABS MOD-HOSE-FR-LH $264.02 To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB134 DOUBLE PIPE CLIP IAC27 Enquire To Order
Photo Part No Description Price (each) Stock
00RB168 SWIVEL CLIP - 4.3-5.2 - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB063 P CLIP - DIA 6 (M6) Enquire To Order
Photo Part No Description Price (each) Stock
23CA012CP PIPE-BRAKE-ABS MOD-HOSE-FR-RH - ABS MODULATOR TO BRAKE HOSE - FRONT - RH $345.26 To Order
Photo Part No Description Price (each) Stock
23CA013CP PIPE-BRAKE-TMC-ABS MOD-PRIMARY - ABS MODULATOR - MASTER CYLINDER PRIMARY - LHD $306.04 To Order
Photo Part No Description Price (each) Stock
23CA026CP PIPE-BRAKE-TMC-ABS MOD-SECONDR $189.59 To Order
Photo Part No Description Price (each) Stock
00RB043 CLIP-DOUBLE-DIA 6 24 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15CA148CP BRACKET - BRAKE HOSE TO BODY - FRONT - RH $81.23 To Order
Photo Part No Description Price (each) Stock
15CA146CP BRACKET - BRAKE HOSE TO BODY - FRONT - LH $81.23 To Order
Photo Part No Description Price (each) Stock
23CA047CP PIPE BRAKE ABS MOD HOSE RR-RH- $385.87 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
23CA103CP PIPE-BRAKE-ABS MOD-HOSE-RR-LH- $185.11 To Order
Photo Part No Description Price (each) Stock
23CA102CP PIPE-BRAKE-ABS MOD-HOSE-RR-RH- $226.91 To Order
Photo Part No Description Price (each) Stock
12C0294CP CLIP - SPRING - HOSE BRACKET $25.37 To Order
Photo Part No Description Price (each) Stock
12C0296CP WASHER - SPRING CLIP $65.98 To Order
Photo Part No Description Price (each) Stock
15CA167CP BRAKE HOSE - FRONT $111.69 To Order
Photo Part No Description Price (each) Stock
23CA045CP PIPE-BRAKE-ABS MOD-HOSE-RR-LH- $426.52 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14CA078CP BRACKET - BRAKE PIPE - REAR - LH $35.23 To Order
Photo Part No Description Price (each) Stock
14CA077CP BRACKET - BRAKE PIPE - REAR - RH $35.23 To Order
Photo Part No Description Price (each) Stock
13C0188CP BRAKE HOSE - CARBON - REAR $85.58 To Order

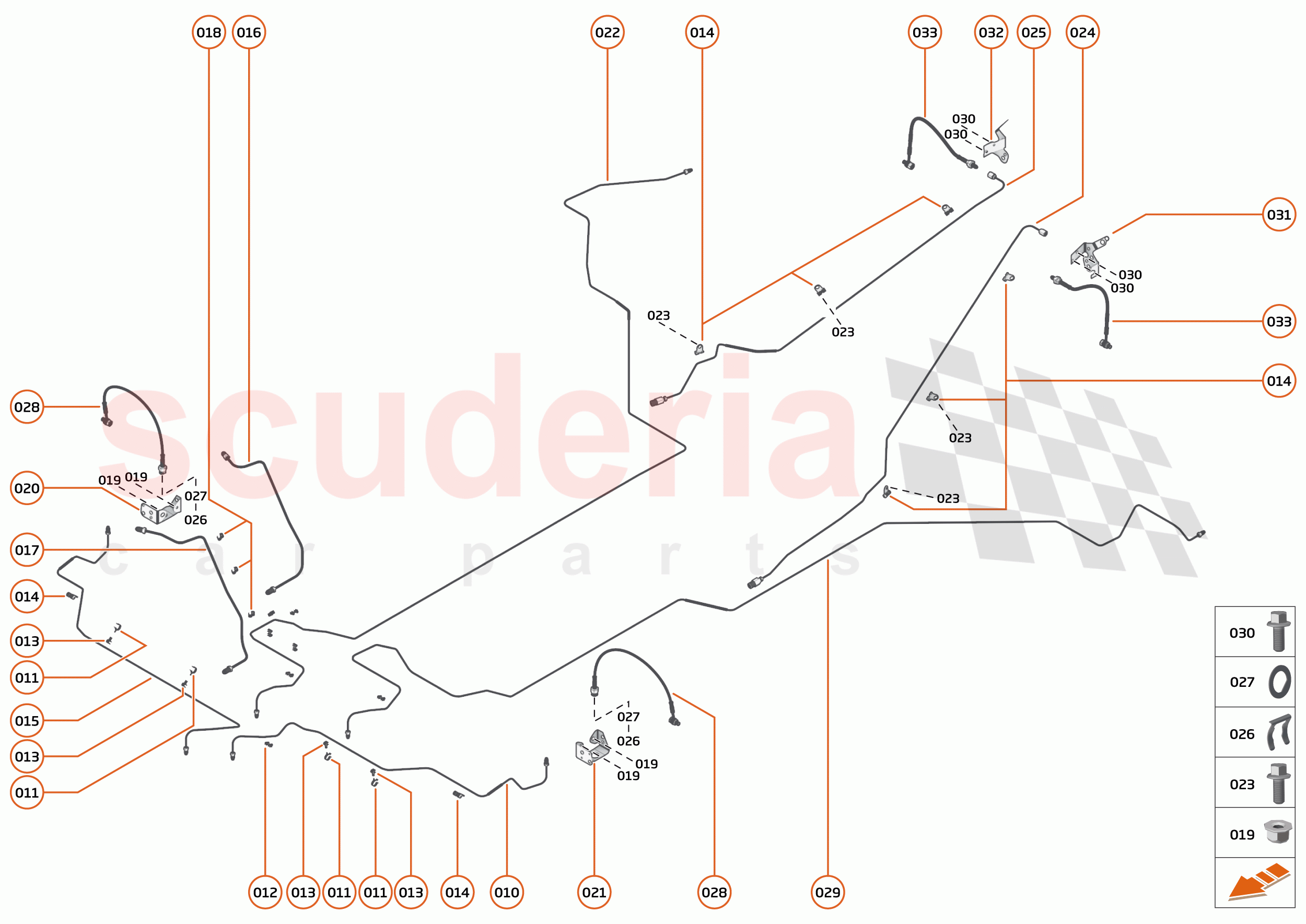

18 - BRAKES - 18.10 - BRAKE PIPES of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 23CA011CP
PIPE-BRAKE-ABS MOD-HOSE-FR-LH 		$264.02 1
TO
011 00RB018
CLIP - 11-13MM - MALE 		- 4
PE
 Enquire
012 00RB134
DOUBLE PIPE CLIP IAC27 		- 7
PE
 Enquire
013 00RB168
SWIVEL CLIP - 4.3-5.2 - FEMALE 		- 4
PE
 Enquire
014 00RB063
P CLIP - DIA 6 (M6) 		- 8
PE
 Enquire
015 23CA012CP
PIPE-BRAKE-ABS MOD-HOSE-FR-RH - ABS MODULATOR TO BRAKE HOSE - FRONT - RH 		$345.26 1
TO
016 23CA013CP
PIPE-BRAKE-TMC-ABS MOD-PRIMARY - ABS MODULATOR - MASTER CYLINDER PRIMARY - LHD 		$306.04 1
TO
017 23CA026CP
PIPE-BRAKE-TMC-ABS MOD-SECONDR 		$189.59 1
TO
018 00RB043
CLIP-DOUBLE-DIA 6 24 		- 3
PE
 Enquire
019 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
020 15CA148CP
BRACKET - BRAKE HOSE TO BODY - FRONT - RH 		$81.23 1
TO
021 15CA146CP
BRACKET - BRAKE HOSE TO BODY - FRONT - LH 		$81.23 1
TO
022 23CA047CP
PIPE BRAKE ABS MOD HOSE RR-RH- 		$385.87 1
TO
023 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4
PE
 Enquire
024 23CA103CP
PIPE-BRAKE-ABS MOD-HOSE-RR-LH- 		$185.11 1
TO
025 23CA102CP
PIPE-BRAKE-ABS MOD-HOSE-RR-RH- 		$226.91 1
TO
026 12C0294CP
CLIP - SPRING - HOSE BRACKET 		$25.37 2
TO
027 12C0296CP
WASHER - SPRING CLIP 		$65.98 2
TO
028 15CA167CP
BRAKE HOSE - FRONT 		$111.69 2
TO
029 23CA045CP
PIPE-BRAKE-ABS MOD-HOSE-RR-LH- 		$426.52 1
TO
030 00RX001
BOLT - M5X16 - HEX 		- 4
PE
 Enquire
031 14CA078CP
BRACKET - BRAKE PIPE - REAR - LH 		$35.23 1
TO
032 14CA077CP
BRACKET - BRAKE PIPE - REAR - RH 		$35.23 1
TO
033 13C0188CP
BRAKE HOSE - CARBON - REAR 		$85.58 1
TO
