17 - Suspension - 17.6 - Transverse Links Rear

McLaren Speedtail

Find Your Part

McLaren Speedtail - 17 - SUSPENSION - 17.6 - TRANSVERSE LINKS REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0579CP WISHBONE - UPPER - REAR - LH $1,299.87 To Order
Photo Part No Description Price (each) Stock
00RA218 RING-PLAIN EXTERNAL-M2400-0400 Enquire To Order
Photo Part No Description Price (each) Stock
14B0580CP WISHBONE - UPPER - REAR - RH $572.97 To Order
Photo Part No Description Price (each) Stock
11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.71 To Order
Photo Part No Description Price (each) Stock
11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID $50.76 To Order
Photo Part No Description Price (each) Stock
23BA400CP ASSY WISHBONE LWR RR LH $1,047.97 To Order
Photo Part No Description Price (each) Stock
23BA402CP ASSY WISHBONE LWR RR RH $1,047.97 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0253CP Sensor - Displacement $152.32 To Order
Photo Part No Description Price (each) Stock
14B0545CP BALL STUD - DISPLACEMENT SENSOR $12.17 To Order
Photo Part No Description Price (each) Stock
14BA018CP BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - LH $20.29 To Order
Photo Part No Description Price (each) Stock
14BA020CP BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - RH $20.29 To Order
Photo Part No Description Price (each) Stock
14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL $35.54 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA616 BOLT - M10X1.5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15BA217CP BUSH-SUSP-WBONE-ALU-LUG-STEEL- $145.09 To Order

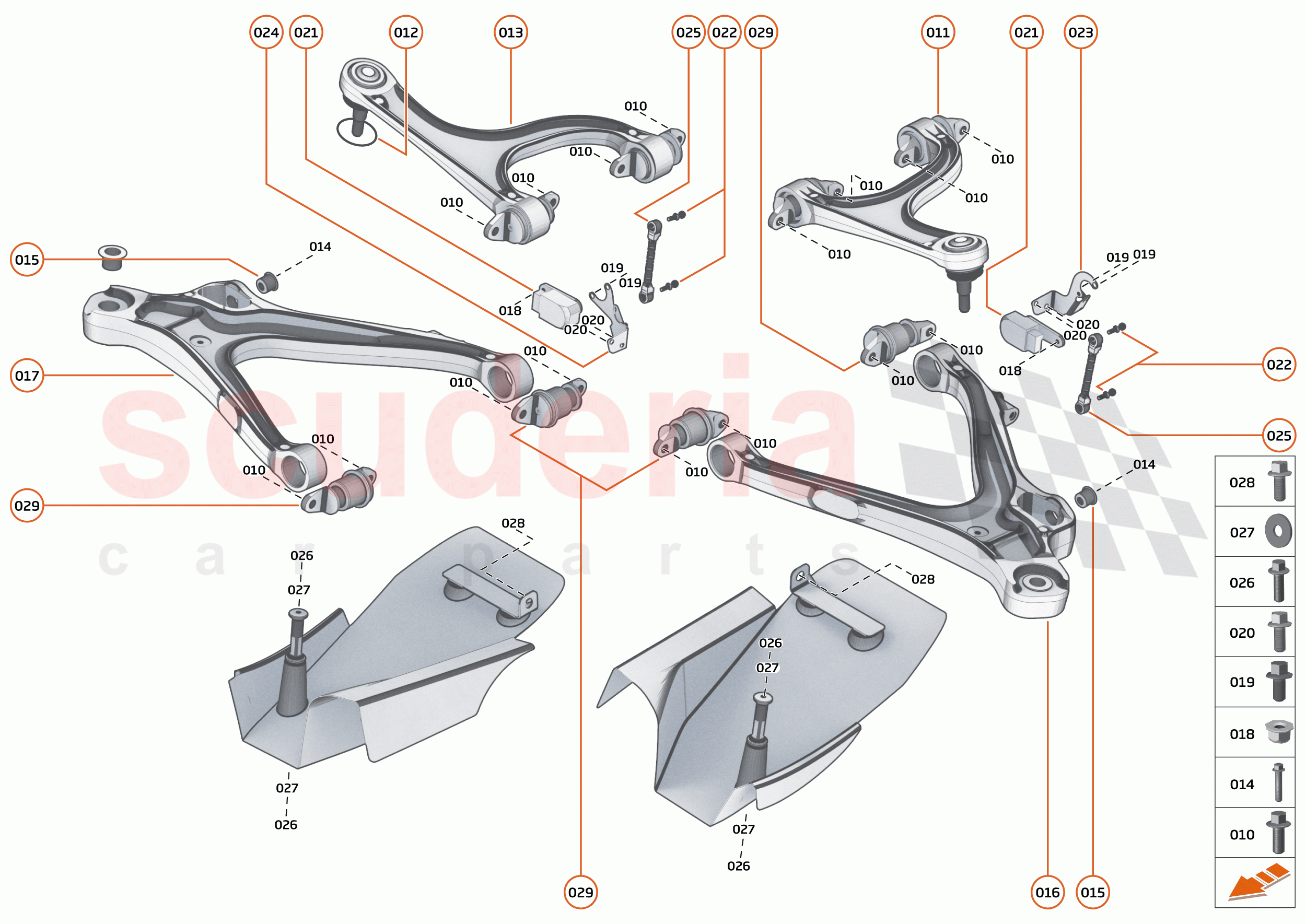

17 - SUSPENSION - 17.6 - TRANSVERSE LINKS REAR of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA457
SCREW - M10X30-10.9 - HEX 		- 16
PE
 Enquire
011 14B0579CP
WISHBONE - UPPER - REAR - LH 		$1,299.87 1
TO
012 00RA218
RING-PLAIN EXTERNAL-M2400-0400 		- 2
PE
 Enquire
013 14B0580CP
WISHBONE - UPPER - REAR - RH 		$572.97 1
TO
014 11B1314CP
BOLT - M10X70 - DAMPER MOUNTING - LOWER 		$8.71 2
TO
015 11B0800CP
Tophat - Spacer - Diameter 20 - 10.2 ID 		$50.76 2
TO
016 23BA400CP
ASSY WISHBONE LWR RR LH 		$1,047.97 1
TO
017 23BA402CP
ASSY WISHBONE LWR RR RH 		$1,047.97 1
TO
018 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
019 00RA087
SCREW - M5X10 - HEX 		- 4
PE
 Enquire
020 00RX001
BOLT - M5X16 - HEX 		- 4
PE
 Enquire
021 11M0253CP
Sensor - Displacement 		$152.32 2
TO
022 14B0545CP
BALL STUD - DISPLACEMENT SENSOR 		$12.17 4
TO
023 14BA018CP
BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - LH 		$20.29 1
TO
024 14BA020CP
BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - RH 		$20.29 1
TO
025 14B0494CP
BALL SCKT SENSOR DISPLACEMENT - GIMBAL 		$35.54 2
TO
026 00RA120
SCREW - M6X25 - HEX 		- 4
PE
 Enquire
027 00RC013
WASHER - M6X18X1.6 		- 4
PE
 Enquire
028 00RA616
BOLT - M10X1.5 - HEX 		- 1
PE
 Enquire
029 15BA217CP
BUSH-SUSP-WBONE-ALU-LUG-STEEL- 		$145.09 2
TO
