17 - Suspension - 17.5 - Uprights Rear

McLaren Speedtail

Find Your Part

McLaren Speedtail - 17 - SUSPENSION - 17.5 - UPRIGHTS REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0631CP HEATSHIELD - BALL JOINT - REAR - UPPER $16.22 To Order
Photo Part No Description Price (each) Stock
14B0632CP HEATSHIELD - BALL JOINT - REAR - LOWER $16.22 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $13.18 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $45.68 To Order
Photo Part No Description Price (each) Stock
11B0993CP SCREW - M3X12 - HEX $2.17 To Order
Photo Part No Description Price (each) Stock
11B0322CP WHEEL HUB ASSY - BEARING $649.93 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $65.98 To Order
Photo Part No Description Price (each) Stock
11B0630CP PROTECTOR CAP - HUB $30.01 To Order
Photo Part No Description Price (each) Stock
23BA566CP ASSY UPRIGHT RR RH $8,945.89 To Order
Photo Part No Description Price (each) Stock
14BA220CP HEX SOCKET HD CAP M12X30 8.8 $3.61 To Order
Photo Part No Description Price (each) Stock
00RA218 RING-PLAIN EXTERNAL-M2400-0400 Enquire To Order
Photo Part No Description Price (each) Stock
16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH $130.89 To Order
Photo Part No Description Price (each) Stock
23BA565CP ASSY UPRIGHT RR LH $8,945.89 To Order

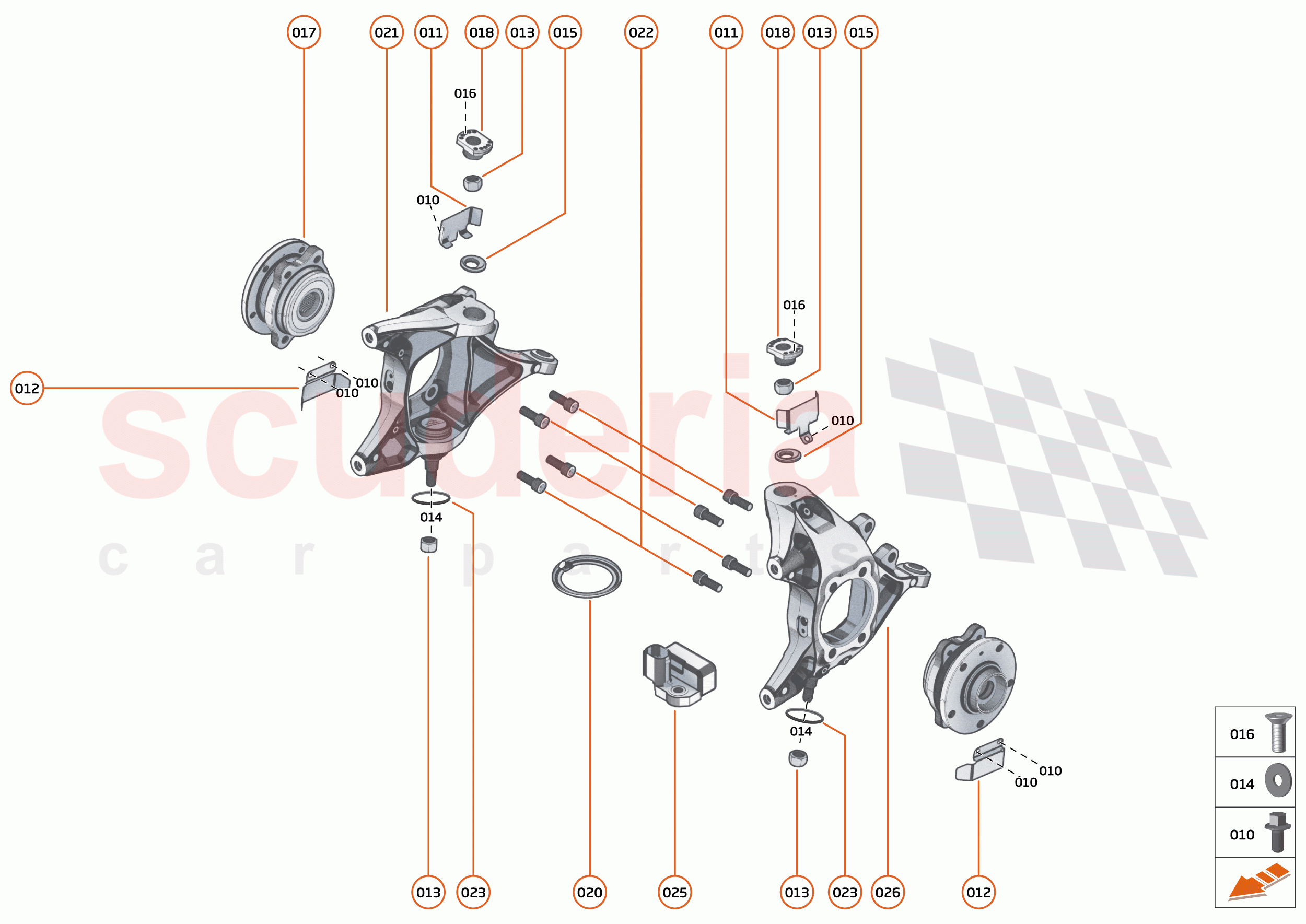

17 - SUSPENSION - 17.5 - UPRIGHTS REAR of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA165
BOLT - M5X8 - HEX 		- 1
PE
 Enquire
011 14B0631CP
HEATSHIELD - BALL JOINT - REAR - UPPER 		$16.22 1
TO
012 14B0632CP
HEATSHIELD - BALL JOINT - REAR - LOWER 		$16.22 1
TO
013 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 2
PE
 Enquire
014 11B0320CP
WASHER - DIA 35X3.9X14.5 		$13.18 1
TO
015 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$45.68 1
TO
016 11B0993CP
SCREW - M3X12 - HEX 		$2.17 1
TO
017 11B0322CP
WHEEL HUB ASSY - BEARING 		$649.93 1
TO
018 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$65.98 1
TO
020 11B0630CP
PROTECTOR CAP - HUB 		$30.01 1
TO
021 23BA566CP
ASSY UPRIGHT RR RH 		$8,945.89 1
TO
022 14BA220CP
HEX SOCKET HD CAP M12X30 8.8 		$3.61 4
TO
023 00RA218
RING-PLAIN EXTERNAL-M2400-0400 		- 1
PE
 Enquire
025 16MB093CP
SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH 		$130.89 2
TO
026 23BA565CP
ASSY UPRIGHT RR LH 		$8,945.89 1
TO
