13 - Wipers And Washer System - 13.1 - Washer System

McLaren Speedtail

Find Your Part

McLaren Speedtail - 13 - WIPERS AND WASHER SYSTEM - 13.1 - WASHER SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13A4198CP PUMP - WINDSCREEN WASH $132.00 To Order
Photo Part No Description Price (each) Stock
13A4522CP CAP - WASHER BOTTLE $67.37 To Order
Photo Part No Description Price (each) Stock
23AA385CP ASSY - WASHER BOTTLE Enquire To Order
23AA136CP ASSY WASHER BOTTLE AND HOSE - COMPLETE $382.67 To Order
Photo Part No Description Price (each) Stock
23AB658CP BRKT WASHER BOTTLE LOWER Enquire To Order
Photo Part No Description Price (each) Stock
00RA081 SCREW - TORX - PAN - M6X16-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
23AC947CP BRKT WASHER BOTTLE UPPER $382.67 To Order
Photo Part No Description Price (each) Stock
00RA691 SCR-PAN HD-TX-M6X1X20-SS-90 Enquire To Order
Photo Part No Description Price (each) Stock
00RB170 CLIP - WASHER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
00RB211 CLIP - PIPE - WINDSCREEN WASHER Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
11A5728CP Tie Base - Cable - Firtree $2.62 To Order
Photo Part No Description Price (each) Stock
13A4199CP GROMMET - WASHER BOTTLE - PUMP $25.37 To Order
Photo Part No Description Price (each) Stock
13A4200CP GROMMET - SENSOR - WASHER LEVEL $30.44 To Order
Photo Part No Description Price (each) Stock
13A4201CP SENSOR - WASHER LEVEL $45.30 To Order
Photo Part No Description Price (each) Stock
13A4585CP GASKET - WINDCREEN - WASHER BOTTLE $5.67 To Order
Photo Part No Description Price (each) Stock
13A4587CP CONNECTOR Y-PIECE - PIPE - WINDSCREEN WASHER $2.00 To Order
Photo Part No Description Price (each) Stock
00RA134 Nut - M6 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order

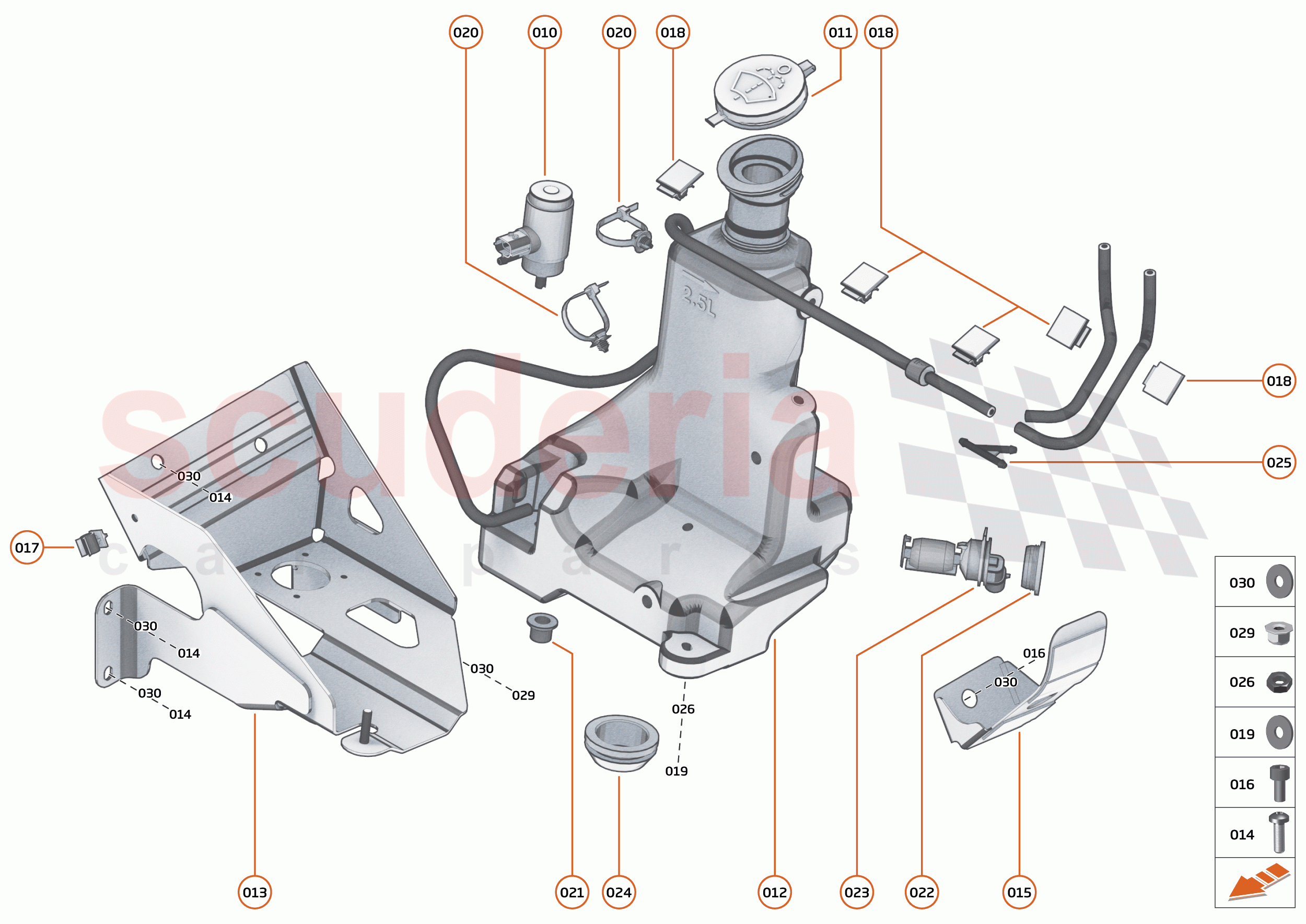

13 - WIPERS AND WASHER SYSTEM - 13.1 - WASHER SYSTEM of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RB049
HOSE CLAMP - 40-60MM 		- 2
PE
 Enquire
000 00RA120
SCREW - M6X25 - HEX 		- 1
PE
 Enquire
010 13A4198CP
PUMP - WINDSCREEN WASH 		$132.00 1
TO
011 13A4522CP
CAP - WASHER BOTTLE 		$67.37 1
TO
012 23AA385CP
ASSY - WASHER BOTTLE 		- 1
PE
 Enquire
012 23AA136CP
ASSY WASHER BOTTLE AND HOSE - COMPLETE 		$382.67 1
TO
013 23AB658CP
BRKT WASHER BOTTLE LOWER 		- 1
PE
 Enquire
014 00RA081
SCREW - TORX - PAN - M6X16-8.8 		- 3
PE
 Enquire
015 23AC947CP
BRKT WASHER BOTTLE UPPER 		$382.67 1
TO
016 00RA691
SCR-PAN HD-TX-M6X1X20-SS-90 		- 1
PE
 Enquire
017 00RB170
CLIP - WASHER HOSE 		- 2
PE
 Enquire
018 00RB211
CLIP - PIPE - WINDSCREEN WASHER 		- 5
PE
 Enquire
019 00RC043
WASHER - M6XOD25 		- 1
PE
 Enquire
020 11A5728CP
Tie Base - Cable - Firtree 		$2.62 2
TO
021 13A4199CP
GROMMET - WASHER BOTTLE - PUMP 		$25.37 1
TO
022 13A4200CP
GROMMET - SENSOR - WASHER LEVEL 		$30.44 1
TO
023 13A4201CP
SENSOR - WASHER LEVEL 		$45.30 1
TO
024 13A4585CP
GASKET - WINDCREEN - WASHER BOTTLE 		$5.67 1
TO
025 13A4587CP
CONNECTOR Y-PIECE - PIPE - WINDSCREEN WASHER 		$2.00 1
TO
026 00RA134
Nut - M6 - Hex 		- 1
PE
 Enquire
029 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 1
PE
 Enquire
030 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 4
PE
 Enquire
