11 - Glazing Body - 11.1 - Windscreen

McLaren Speedtail

Find Your Part

McLaren Speedtail - 11 - GLAZING BODY - 11.1 - WINDSCREEN

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
23AA394CP ASSY - WINDSCREEN Enquire To Order
Photo Part No Description Price (each) Stock
23AB664CP GLASS SPACER-BUMP ON-12X10X0.8 $2.80 To Order
Photo Part No Description Price (each) Stock
00RA574 SCREW - M5X25 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RC056 Washer - M5x12.5x1 Form C Enquire To Order
Photo Part No Description Price (each) Stock
23AD687CP ECU GLAZING $1,726.40 To Order
23AA925CP SEAL - WINDSCREEN LOWER $100.68 To Order

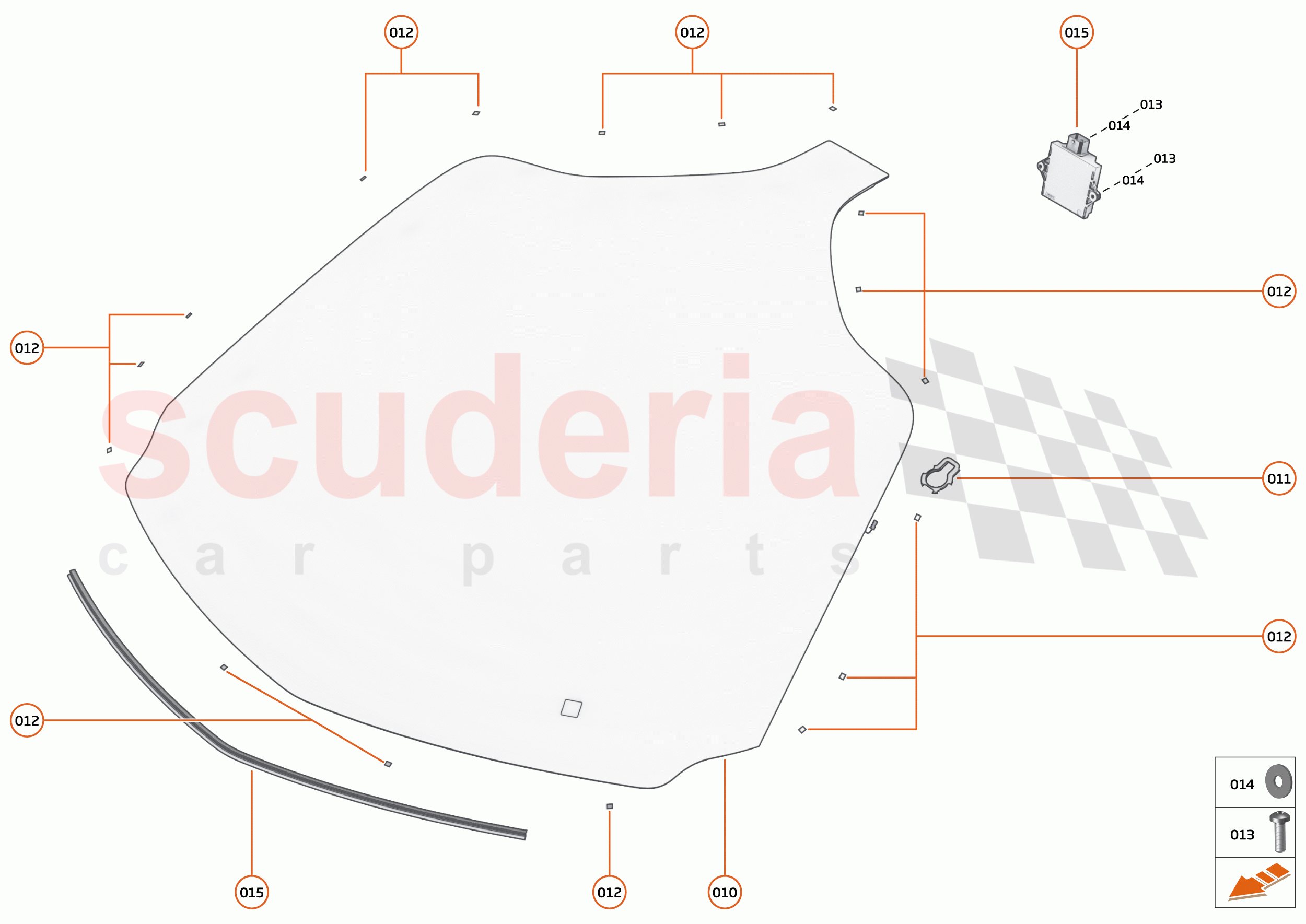

11 - GLAZING BODY - 11.1 - WINDSCREEN of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 23AA394CP
ASSY - WINDSCREEN 		- 1
PE
 Enquire
011 13M0670CP
RAIN LIGHT SENSOR - BRKT 		$3.71 1
TO
012 23AB664CP
GLASS SPACER-BUMP ON-12X10X0.8 		$2.80 34
TO
013 00RA574
SCREW - M5X25 - TORX 		- 2
PE
 Enquire
014 00RC056
Washer - M5x12.5x1 Form C 		- 2
PE
 Enquire
015 23AD687CP
ECU GLAZING 		$1,726.40 1
TO
015 23AA925CP
SEAL - WINDSCREEN LOWER 		$100.68 1
TO
