4 - Floors - 4.1 - Front Non-Structural Floors

McLaren Speedtail

Find Your Part

McLaren Speedtail - 4 - FLOORS - 4.1 - FRONT NON-STRUCTURAL FLOORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
23AD696CP FRONT VISUAL FLOOR Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order
Photo Part No Description Price (each) Stock
00RA257 BOLT-HEX SOCKET HD24AP-M6X55-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA588 BOLT - M8X1.25X14 Enquire To Order
Photo Part No Description Price (each) Stock
00RC048 WASHER - FORM C - 21X1.6 - M8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA574 SCREW - M5X25 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
14AB763RP MALE QTR TURN PIN D8-316-219-191 $7.64 To Order

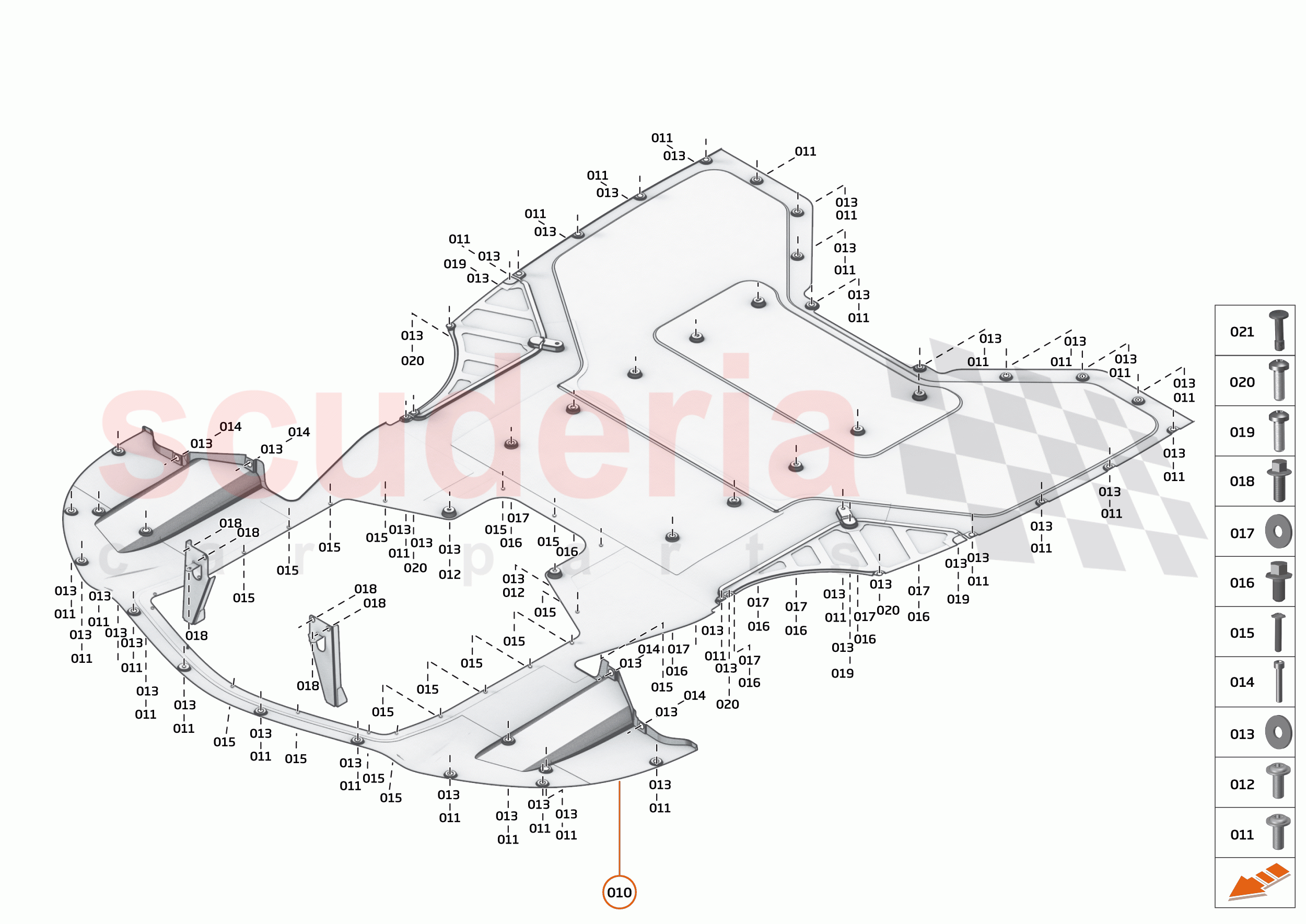

4 - FLOORS - 4.1 - FRONT NON-STRUCTURAL FLOORS of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 23AD696CP
FRONT VISUAL FLOOR 		- 1
PE
 Enquire
011 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 40
PE
 Enquire
012 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 2
PE
 Enquire
013 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 54
PE
 Enquire
014 00RA257
BOLT-HEX SOCKET HD24AP-M6X55-8 		- 4
PE
 Enquire
015 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX 		- 20
PE
 Enquire
016 00RA588
BOLT - M8X1.25X14 		- 10
PE
 Enquire
017 00RC048
WASHER - FORM C - 21X1.6 - M8 		- 10
PE
 Enquire
018 00RA083
SCREW - M6X20 - FLANGE HEX 		- 6
PE
 Enquire
019 00RA522
BOLT - BUTTON HEAD - TORX - M5X16 		- 4
PE
 Enquire
020 00RA574
SCREW - M5X25 - TORX 		- 4
PE
 Enquire
021 14AB763RP
MALE QTR TURN PIN D8-316-219-191 		$7.64 1
TO
