3 - Rear Structures - 3.1 - Rear Frame

McLaren Speedtail

Find Your Part

McLaren Speedtail - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA164 BOLT-HEX HEAD-FLANGE-M16X80-10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA669 BLT-HX HD-FL-M10X1.5X110-10.9- Enquire To Order
Photo Part No Description Price (each) Stock
00RA670 BLT-HX HD-FL-M10X1.5X90-10.9-7 Enquire To Order
Photo Part No Description Price (each) Stock
23AD754CP ASSY-RR-FRAME WITH DAMPER MODS $64,976.87 To Order
Photo Part No Description Price (each) Stock
00RL027 STUD - M6X20 - BIG HEAD ROUND Enquire To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
11A4284CP PLUG - DOME - 25 DIAMETER $2.00 To Order
Photo Part No Description Price (each) Stock
23AC338CP ASSY-CROSSBEAM TRANS FLOOR $856.52 To Order

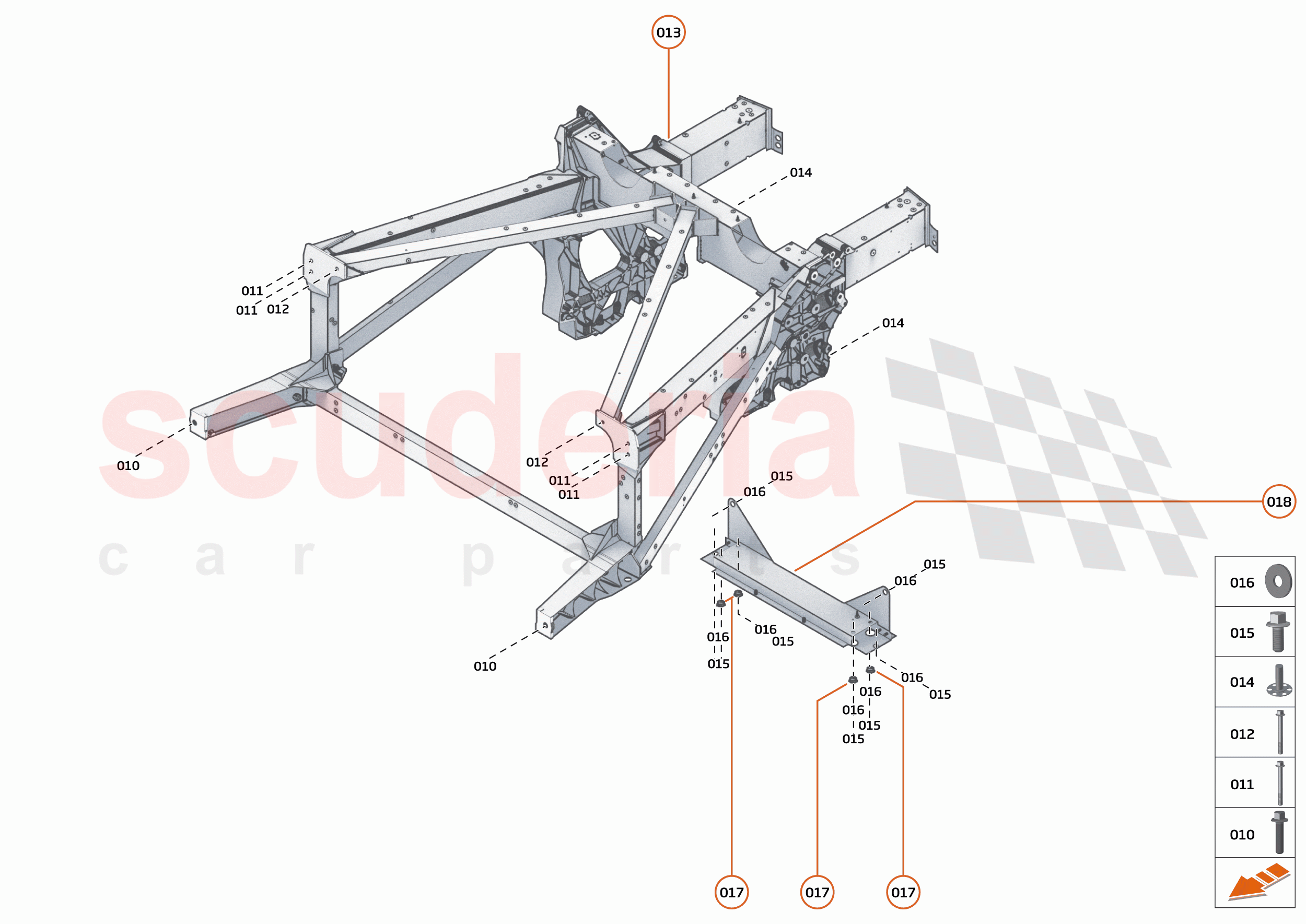

3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA164
BOLT-HEX HEAD-FLANGE-M16X80-10 		- 2
PE
 Enquire
011 00RA669
BLT-HX HD-FL-M10X1.5X110-10.9- 		- 4
PE
 Enquire
012 00RA670
BLT-HX HD-FL-M10X1.5X90-10.9-7 		- 2
PE
 Enquire
013 23AD754CP
ASSY-RR-FRAME WITH DAMPER MODS 		$64,976.87 1
TO
014 00RL027
STUD - M6X20 - BIG HEAD ROUND 		- 2
PE
 Enquire
015 00RA457
SCREW - M10X30-10.9 - HEX 		- 8
PE
 Enquire
016 00RC065
WASHER - M10X21X2.0 		- 18
PE
 Enquire
017 11A4284CP
PLUG - DOME - 25 DIAMETER 		$2.00 4
TO
018 23AC338CP
ASSY-CROSSBEAM TRANS FLOOR 		$856.52 1
TO
