2 - Mid Structures - 2.1 - Monocoque

McLaren Speedtail

Find Your Part

McLaren Speedtail - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA311 Screw - M6x16 - Hex Socket Enquire To Order
Photo Part No Description Price (each) Stock
23AD714CP WOOFER ENCLOSURE-LH-MACHINED Enquire To Order
Photo Part No Description Price (each) Stock
23AC540CP WISHBONE MOUNT SPACER $4,531.84 To Order
Photo Part No Description Price (each) Stock
11K0105CP STUD PLATE - M6X18 - FUEL TANK $35.54 To Order
Photo Part No Description Price (each) Stock
00RA242 STUD M8X1.25X35 Enquire To Order
Photo Part No Description Price (each) Stock
00RC105 Washer - M8x16x1.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA608 SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00 Enquire To Order
Photo Part No Description Price (each) Stock
23AB819CP BODY SHIM - 0.5MM $110.76 To Order
23AC953CP BODY SHIM - 1.0MM $60.42 To Order
Photo Part No Description Price (each) Stock
23AC929CP ASSY SEAT RR ACC PNL-MCU-MACHI $5,139.13 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
23AB056CP SEAT RR ACCESS PANEL-CTR-MACHI $8,162.15 To Order
Photo Part No Description Price (each) Stock
23AB649CP ASSY - CARBON DOP COUPE-LH Enquire To Order
Photo Part No Description Price (each) Stock
23AB771CP ASSY - CARBON DOP COUPE-RH Enquire To Order
Photo Part No Description Price (each) Stock
23AB067CP SEAT RR ACCESS PANEL-REEL-LH-M $8,162.15 To Order
Photo Part No Description Price (each) Stock
11A7572CP NUT PLATE - A-POST - M8 $50.76 To Order
Photo Part No Description Price (each) Stock
11A7573CP NUT PLATE - B-POST - M8 $50.76 To Order
Photo Part No Description Price (each) Stock
11A7142CP BRACKET - DAMPER MOUNTING - LH $223.40 To Order
Photo Part No Description Price (each) Stock
11A7143CP BRACKET - DAMPER MOUNTING - RH $223.40 To Order
Photo Part No Description Price (each) Stock
11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM $11.14 To Order
Photo Part No Description Price (each) Stock
11A5734CP BLANKING PLUG - CIRCULAR - 42MM $11.14 To Order

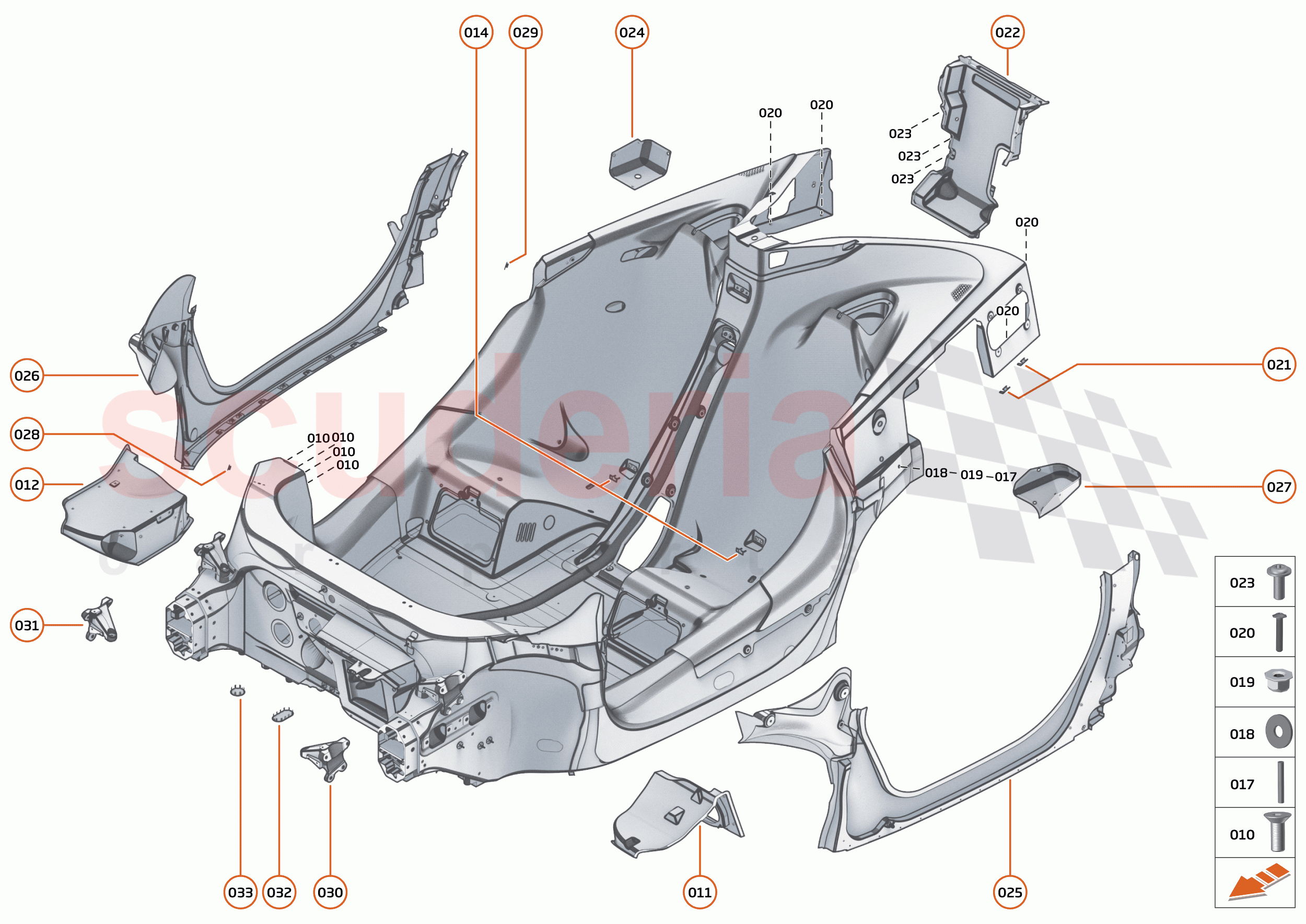

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA311
Screw - M6x16 - Hex Socket 		- 8
PE
 Enquire
011 23AD714CP
WOOFER ENCLOSURE-LH-MACHINED 		- 1
PE
 Enquire
012 23AC540CP
WISHBONE MOUNT SPACER 		$4,531.84 1
TO
014 11K0105CP
STUD PLATE - M6X18 - FUEL TANK 		$35.54 2
TO
017 00RA242
STUD M8X1.25X35 		- 2
PE
 Enquire
018 00RC105
Washer - M8x16x1.6 		- 2
PE
 Enquire
019 00RA056
NUT - M8-8 - LOCK HEX 		- 2
PE
 Enquire
020 00RA608
SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00 		- 4
PE
 Enquire
021 23AB819CP
BODY SHIM - 0.5MM 		$110.76 12
TO
021 23AC953CP
BODY SHIM - 1.0MM 		$60.42 8
TO
022 23AC929CP
ASSY SEAT RR ACC PNL-MCU-MACHI 		$5,139.13 1
TO
023 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 3
PE
 Enquire
024 23AB056CP
SEAT RR ACCESS PANEL-CTR-MACHI 		$8,162.15 1
TO
025 23AB649CP
ASSY - CARBON DOP COUPE-LH 		- 1
PE
 Enquire
026 23AB771CP
ASSY - CARBON DOP COUPE-RH 		- 1
PE
 Enquire
027 23AB067CP
SEAT RR ACCESS PANEL-REEL-LH-M 		$8,162.15 1
TO
028 11A7572CP
NUT PLATE - A-POST - M8 		$50.76 6
TO
029 11A7573CP
NUT PLATE - B-POST - M8 		$50.76 6
TO
030 11A7142CP
BRACKET - DAMPER MOUNTING - LH 		$223.40 1
TO
031 11A7143CP
BRACKET - DAMPER MOUNTING - RH 		$223.40 1
TO
032 11A5735CP
BLANKING PLUG - OVAL - 74MM X 37MM 		$11.14 4
TO
033 11A5734CP
BLANKING PLUG - CIRCULAR - 42MM 		$11.14 6
TO
