McLaren Senna GTR - 30 - FUEL SYSTEM - 30.2 - FUEL TANK RETENTION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RG010 NUT PROTECTOR - M6 -REEVITE Enquire To Order
Photo Part No Description Price (each) Stock
11K0105CP STUD PLATE - M6X18 - FUEL TANK $35.54 To Order
Photo Part No Description Price (each) Stock
14K0068CP MOUNTING STRAP - FUEL TANK $86.29 To Order
Photo Part No Description Price (each) Stock
14KA024CP BRACKET - FUEL TANK - LOWER - FRONT $35.54 To Order
Photo Part No Description Price (each) Stock
14KA046CP MOUNTING STRAP - MOULDED - FUEL TANK $14.21 To Order
Photo Part No Description Price (each) Stock
14K0143CP PAD - FUEL TANK - BULKHEAD - LOWER - RH $9.24 To Order
Photo Part No Description Price (each) Stock
15KA017RP FUEL CELL - PAD - TOP RIGHT $23.11 To Order
Photo Part No Description Price (each) Stock
15KA018RP FUEL CELL - PAD - TOP CENTRE $17.11 To Order
Photo Part No Description Price (each) Stock
15KA019RP FUEL CELL - PAD - TOP LEFT $23.11 To Order
Photo Part No Description Price (each) Stock
15KA020RP FUEL CELL - BULKHEAD - PAD - U $7.50 To Order
Photo Part No Description Price (each) Stock
15KA021RP FUEL CELL - BULKHEAD - PAD - U $8.95 To Order
Photo Part No Description Price (each) Stock
15KA022RP FUEL CELL - BULKHEAD - PAD - L $8.14 To Order

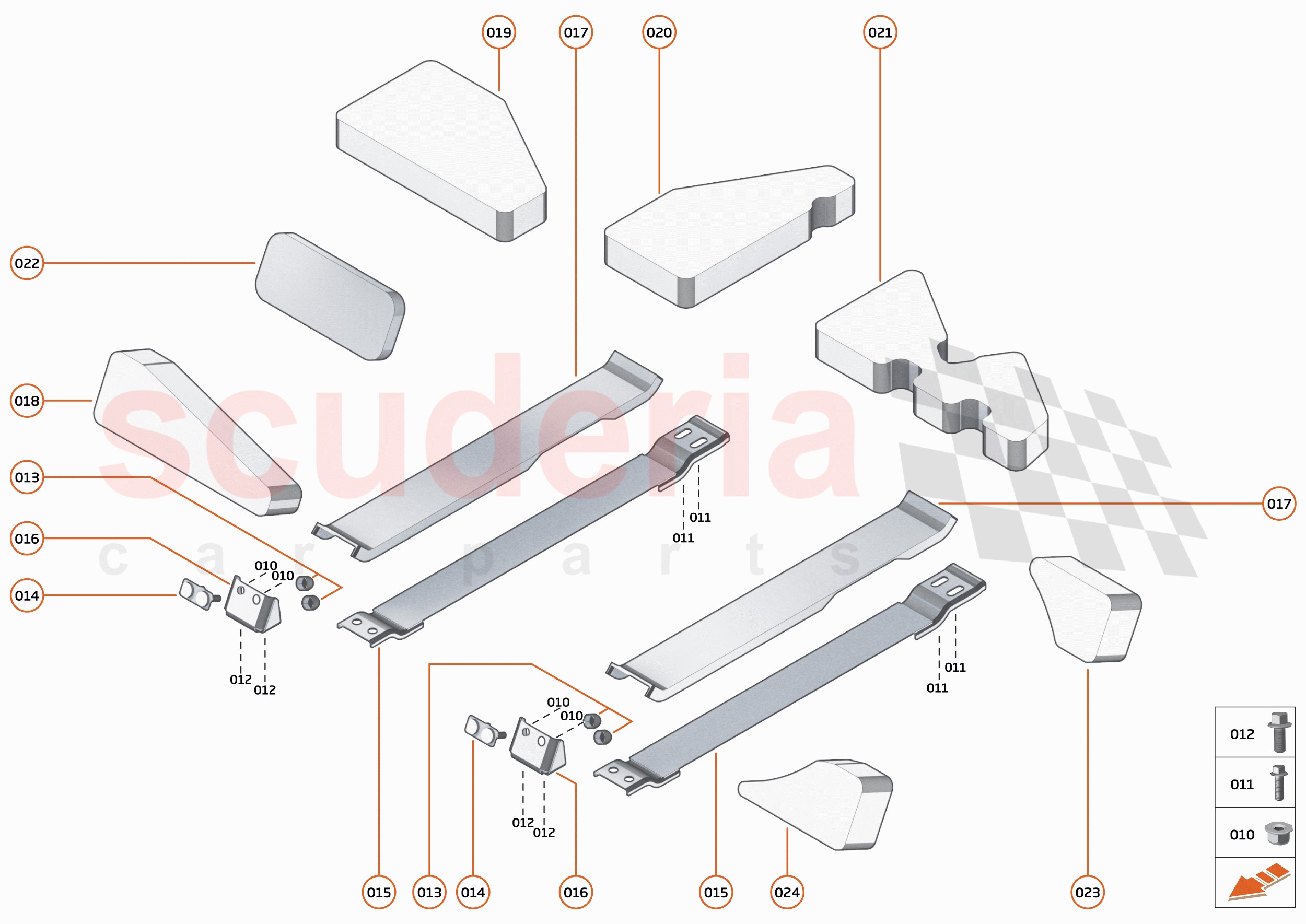

30 - FUEL SYSTEM - 30.2 - FUEL TANK RETENTION of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
011 00RA120
SCREW - M6X25 - HEX 		- 4
PE
 Enquire
012 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4
PE
 Enquire
013 00RG010
NUT PROTECTOR - M6 -REEVITE 		- 4
PE
 Enquire
014 11K0105CP
STUD PLATE - M6X18 - FUEL TANK 		$35.54 2
TO
015 14K0068CP
MOUNTING STRAP - FUEL TANK 		$86.29 2
TO
016 14KA024CP
BRACKET - FUEL TANK - LOWER - FRONT 		$35.54 2
TO
017 14KA046CP
MOUNTING STRAP - MOULDED - FUEL TANK 		$14.21 1
TO
018 14K0143CP
PAD - FUEL TANK - BULKHEAD - LOWER - RH 		$9.24 1
TO
019 15KA017RP
FUEL CELL - PAD - TOP RIGHT 		$23.11 1
TO
020 15KA018RP
FUEL CELL - PAD - TOP CENTRE 		$17.11 1
TO
021 15KA019RP
FUEL CELL - PAD - TOP LEFT 		$23.11 1
TO
022 15KA020RP
FUEL CELL - BULKHEAD - PAD - U 		$7.50 1
TO
023 15KA021RP
FUEL CELL - BULKHEAD - PAD - U 		$8.95 1
TO
024 15KA022RP
FUEL CELL - BULKHEAD - PAD - L 		$8.14 1
TO
