McLaren Senna GTR - 30 - FUEL SYSTEM - 30.5 - FUEL DELIVERY

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15KA030RP PIPE -FUEL FEED -ENG BAY $2,014.14 To Order
15KA007RP PIPE -FUEL FEED -ENG BAY Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
15KA024RP FUEL FEED - BLOCK ADAPTOR $3,826.89 To Order
Photo Part No Description Price (each) Stock
00RB191 P-CLIP - 14X15 Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order

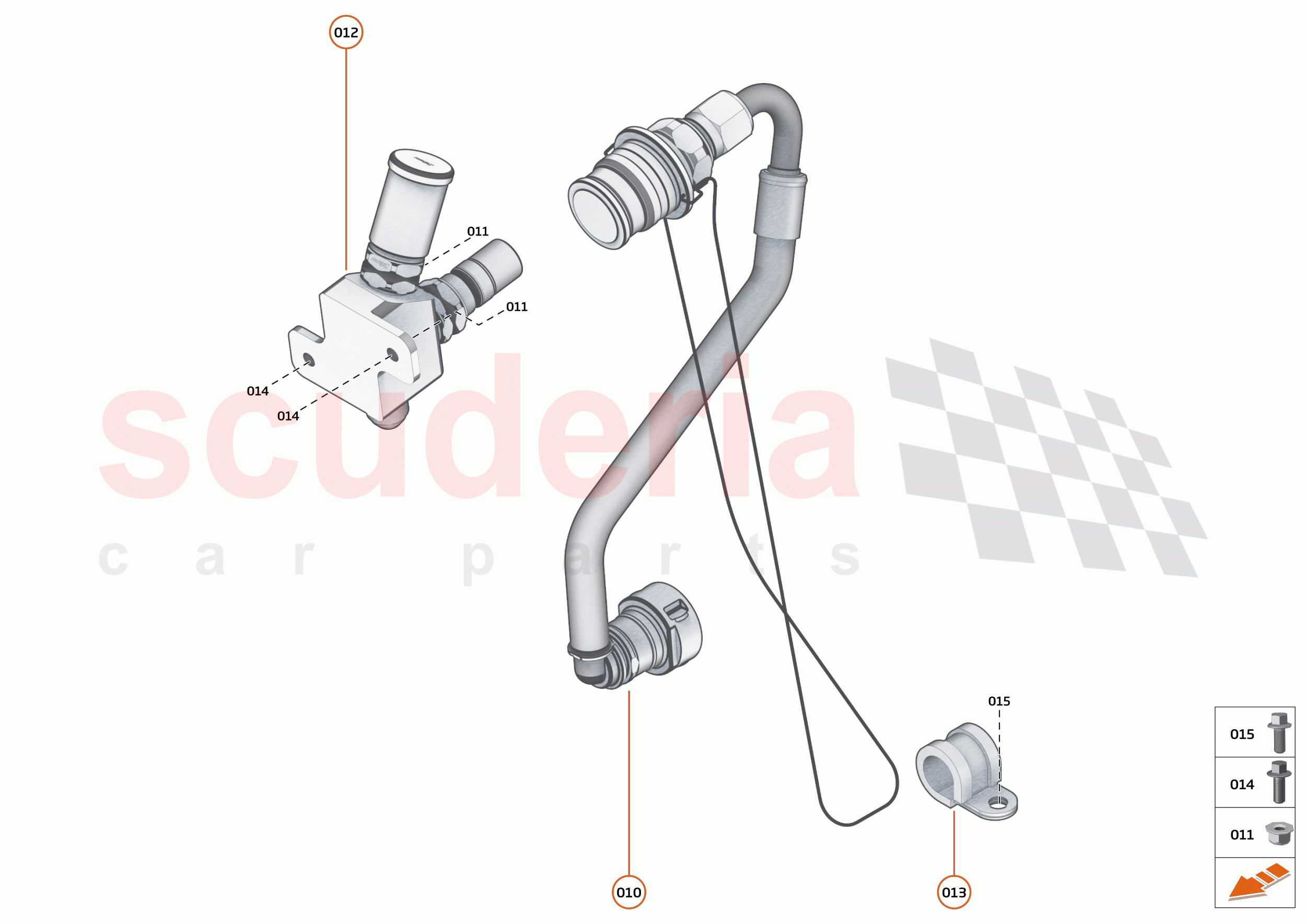

30 - FUEL SYSTEM - 30.5 - FUEL DELIVERY of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15KA030RP
PIPE -FUEL FEED -ENG BAY 		$2,014.14 1
TO
010 15KA007RP
PIPE -FUEL FEED -ENG BAY 		- 1
PE
 Enquire
011 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 2
PE
 Enquire
012 15KA024RP
FUEL FEED - BLOCK ADAPTOR 		$3,826.89 1
TO
013 00RB191
P-CLIP - 14X15 		- 1
PE
 Enquire
014 00RA064
BOLT - M5X12 - HEX 		- 2
PE
 Enquire
015 00RX003
BOLT - M6X1X12 - HEX 		- 1
PE
 Enquire
016 00RL012
CABLE TIE - 300X4.6MM 		- 2
PE
 Enquire
