McLaren Senna GTR - 23 - ENGINE - 23.9 - POWER UNIT ASSEMBLY & CYLINDER BLOCK HARDWARE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15FA327CP ENGINE - V8 4.0L PP1 AC $90,770.48 To Order
Photo Part No Description Price (each) Stock
11F1942CP WASHER - LADDERFRAME - M18 - COPPER $11.14 To Order
Photo Part No Description Price (each) Stock
14F0453CP STUD - TRANSMISSION - 108MM $182.12 To Order
Photo Part No Description Price (each) Stock
11F0800CP Over Pressure - Oil Relief Valve - Engine - Assy $111.69 To Order
Photo Part No Description Price (each) Stock
11F2209CP CRANK TIMING PLUG - ENGINE - INC. O-RING $13.18 To Order
Photo Part No Description Price (each) Stock
11F1018CP Seal - Clutch Cooler Pipe Connection $30.44 To Order
Photo Part No Description Price (each) Stock
11F2577CP GRUB SCREW - OIL CHANNEL - ENGINE $10.14 To Order
Photo Part No Description Price (each) Stock
11F1920CP BOLT - M16X90 - TVD $9.36 To Order
Photo Part No Description Price (each) Stock
11F2199CP BEARING - ENGINE STARTER MOTOR $25.37 To Order

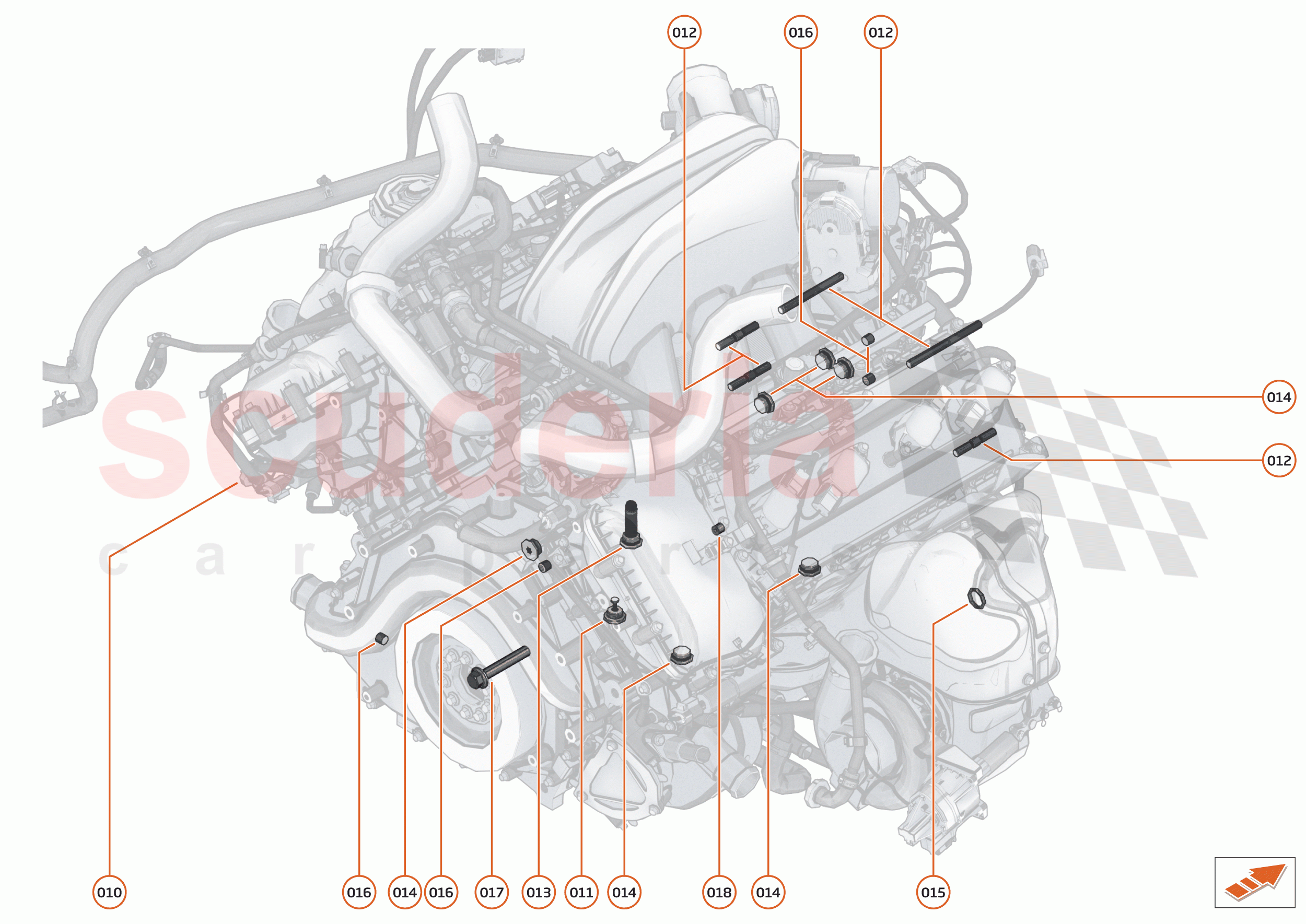

23 - ENGINE - 23.9 - POWER UNIT ASSEMBLY & CYLINDER BLOCK HARDWARE of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15FA327CP
ENGINE - V8 4.0L PP1 AC 		$90,770.48 1
TO
011 11F1942CP
WASHER - LADDERFRAME - M18 - COPPER 		$11.14 1
TO
012 14F0453CP
STUD - TRANSMISSION - 108MM 		$182.12 1
TO
013 11F0800CP
Over Pressure - Oil Relief Valve - Engine - Assy 		$111.69 1
TO
014 11F2209CP
CRANK TIMING PLUG - ENGINE - INC. O-RING 		$13.18 1
TO
015 11F1018CP
Seal - Clutch Cooler Pipe Connection 		$30.44 1
TO
016 11F2577CP
GRUB SCREW - OIL CHANNEL - ENGINE 		$10.14 1
TO
017 11F1920CP
BOLT - M16X90 - TVD 		$9.36 1
TO
018 11F2199CP
BEARING - ENGINE STARTER MOTOR 		$25.37 1
TO
019 11F1192CP
ENGINE LADDERFRAME COLD START OIL SEAL SOP 		$15.21 -
TO
019 11F1191CP
ENGINE LADDERFRAME WATER PASSAGE SEAL SOP 		$15.21 -
TO
