17 - Suspension - 17.6 - Uprights Rear

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 17 - SUSPENSION - 17.6 - UPRIGHTS REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
A1BA298QP BEARING SPACER $3,600.57 To Order
Photo Part No Description Price (each) Stock
ZZBA014QP WHEEL BEARING $1,713.04 To Order
Photo Part No Description Price (each) Stock
A1BA329QP BEARING NUT LH $2,918.52 To Order
Photo Part No Description Price (each) Stock
A1BA195QP STEERING ARM R UPRIGHT $1,887.52 To Order
Photo Part No Description Price (each) Stock
A1BA075QP WHEEL SPEED SENSOR 2015 $445.71 To Order
Photo Part No Description Price (each) Stock
12B0891RP LOCKING RING RH RR Enquire To Order
Photo Part No Description Price (each) Stock
ZZUA007QP KNUT M12 X 1.75 $25.15 To Order
ZZUA018QP M10X1.5 6PT KNUT $8.83 To Order
ZZUA017QP M8X1.25 6PT KNUT $5.70 To Order
Photo Part No Description Price (each) Stock
A1BA115QP BOLT-SUSPENSION CLEVIS - M10X61 44MM SHANK $19.11 To Order
A1BA199QP BOLT SUSPENSION CLEVIS - M10 X 59 $19.11 To Order
ZZTA054QP M6X30 UNBRAKO SHCS $2.42 To Order
Photo Part No Description Price (each) Stock
ZZTA048QP M4X8 UNBRAKO SHCS $2.43 To Order
Photo Part No Description Price (each) Stock
ZZTA015QP M4X8 UNBRAKO SHCS $1.62 To Order
Photo Part No Description Price (each) Stock
A1BA189QP SHIM RTWB 2.0MM $65.08 To Order
A1BA187QP SHIM RTWB 1.0MM $63.37 To Order
A1BA191QP SHIM RTWB 4.0MM $68.51 To Order
Photo Part No Description Price (each) Stock
ZZVA003QP M10 WASHER $0.99 To Order
ZZVA009QP M8 WASHER 1.6 X 16MM - STANDARD BLACK $8.14 To Order
Photo Part No Description Price (each) Stock
A1BA553QP CLEVIS UPPER BALL JOINT - RR UPRIGHT $1,541.74 To Order
Photo Part No Description Price (each) Stock
ZZVA010QP WASHER M12 X 2 X20MM STD BLACK $4.82 To Order
ZZVA002QP M4 WASHER - STANDARD BLACK $2.27 To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
12B0724RP ASSY-WHEEL RETENTION $5,139.13 To Order
Photo Part No Description Price (each) Stock
12B0901RP WASHER DRIVESHAFT OTBD FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
15BA152RP LOCKING RETAINER DRIVESHAFT NU $1,713.04 To Order
Photo Part No Description Price (each) Stock
A1BA330QP BEARING NUT RH $2,918.52 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RB063 P CLIP - DIA 6 (M6) Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RB042 SWIVEL PIPE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
15BA061RP WHEEL HUB RR LH $18,637.27 To Order
Photo Part No Description Price (each) Stock
12B0489RP HUB DOWEL - P1 GTR $90.62 To Order
Photo Part No Description Price (each) Stock
15BA059RP ASSY REAR UPRIGHT LH Enquire To Order
Photo Part No Description Price (each) Stock
15BA063RP ASSY REAR UPRIGHT RH Enquire To Order
Photo Part No Description Price (each) Stock
A1BA193QP BOLT RLWB OUTBOARD M12 X 102 $25.37 To Order

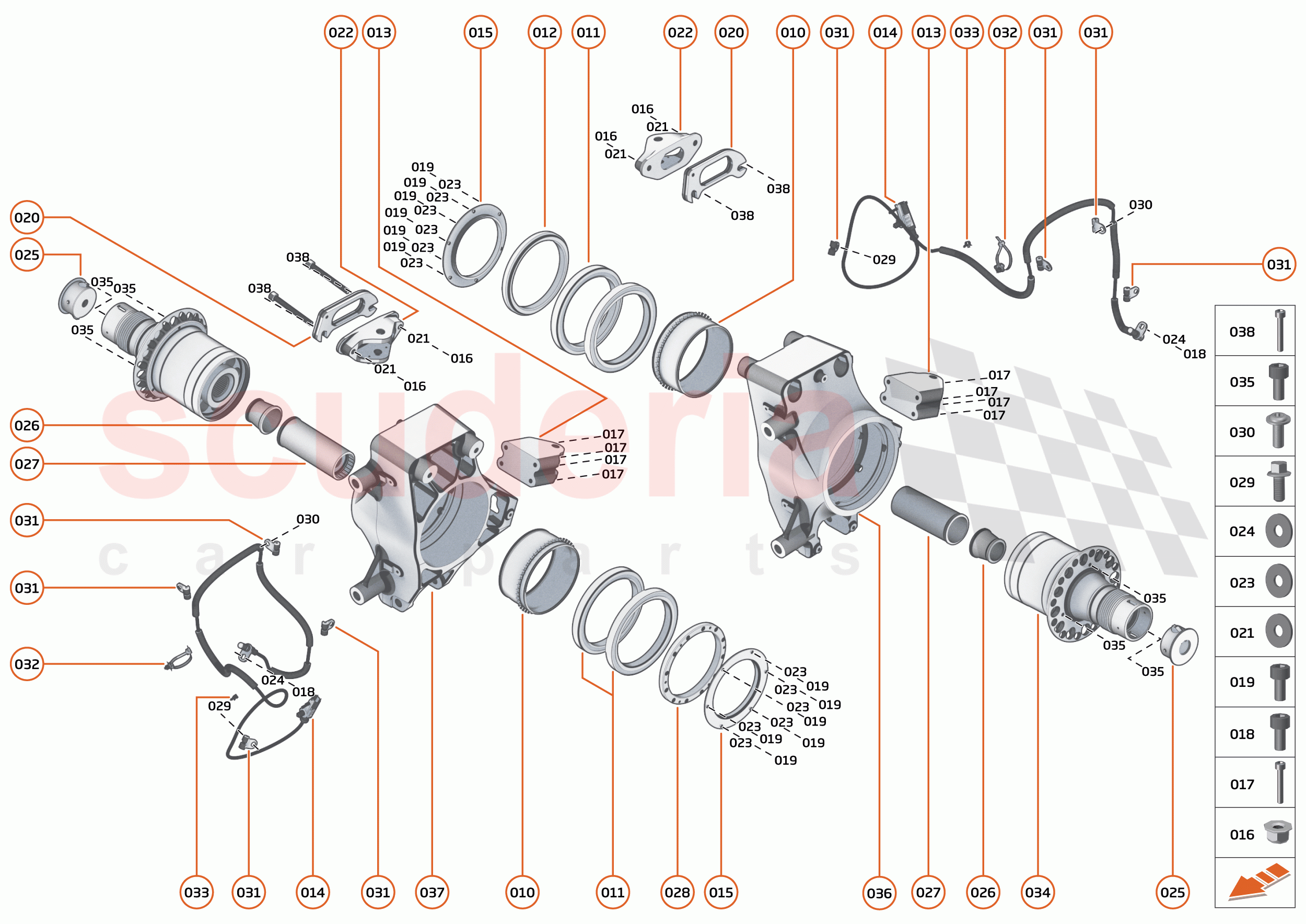

17 - SUSPENSION - 17.6 - UPRIGHTS REAR of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 A1BA298QP
BEARING SPACER 		$3,600.57 -
TO
011 ZZBA014QP
WHEEL BEARING 		$1,713.04 -
TO
012 A1BA329QP
BEARING NUT LH 		$2,918.52 1
TO
013 A1BA195QP
STEERING ARM R UPRIGHT 		$1,887.52 -
TO
014 A1BA075QP
WHEEL SPEED SENSOR 2015 		$445.71 -
TO
015 12B0891RP
LOCKING RING RH RR 		- 1
PE
 Enquire
016 ZZUA007QP
KNUT M12 X 1.75 		$25.15 1
TO
016 ZZUA018QP
M10X1.5 6PT KNUT 		$8.83 1
TO
016 ZZUA017QP
M8X1.25 6PT KNUT 		$5.70 -
TO
017 A1BA115QP
BOLT-SUSPENSION CLEVIS - M10X61 44MM SHANK 		$19.11 1
TO
017 A1BA199QP
BOLT SUSPENSION CLEVIS - M10 X 59 		$19.11 1
TO
017 ZZTA054QP
M6X30 UNBRAKO SHCS 		$2.42 -
TO
018 ZZTA048QP
M4X8 UNBRAKO SHCS 		$2.43 -
TO
019 ZZTA015QP
M4X8 UNBRAKO SHCS 		$1.62 -
TO
020 A1BA189QP
SHIM RTWB 2.0MM 		$65.08 -
TO
020 A1BA187QP
SHIM RTWB 1.0MM 		$63.37 -
TO
020 A1BA191QP
SHIM RTWB 4.0MM 		$68.51 -
TO
021 ZZVA003QP
M10 WASHER
M10 WASHER; 		$0.99 3
TO
021 ZZVA009QP
M8 WASHER 1.6 X 16MM - STANDARD BLACK 		$8.14 -
TO
022 A1BA553QP
CLEVIS UPPER BALL JOINT - RR UPRIGHT 		$1,541.74 -
TO
023 ZZVA010QP
WASHER M12 X 2 X20MM STD BLACK 		$4.82 2
TO
023 ZZVA002QP
M4 WASHER - STANDARD BLACK 		$2.27 -
TO
024 00RC028
WASHER - M6 FORM C 		- -
PE
 Enquire
025 12B0724RP
ASSY-WHEEL RETENTION 		$5,139.13 -
TO
026 12B0901RP
WASHER DRIVESHAFT OTBD FLANGE 		- -
PE
 Enquire
027 15BA152RP
LOCKING RETAINER DRIVESHAFT NU 		$1,713.04 -
TO
028 A1BA330QP
BEARING NUT RH 		$2,918.52 1
TO
029 00RA313
SCREW - M6X16 - HEX - SILVER 		- -
PE
 Enquire
030 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- -
PE
 Enquire
031 00RB063
P CLIP - DIA 6 (M6) 		- -
PE
 Enquire
032 00RL001
CABLE TIE - FIRTREE BASE 		- -
PE
 Enquire
033 00RB042
SWIVEL PIPE CLIP 		- -
PE
 Enquire
034 15BA061RP
WHEEL HUB RR LH 		$18,637.27 -
TO
035 12B0489RP
HUB DOWEL - P1 GTR 		$90.62 -
TO
036 15BA059RP
ASSY REAR UPRIGHT LH 		- 1
PE
 Enquire
037 15BA063RP
ASSY REAR UPRIGHT RH 		- 1
PE
 Enquire
038 A1BA193QP
BOLT RLWB OUTBOARD M12 X 102 		$25.37 1
TO
