McLaren Senna - 27 - AIR INDUCTION SYSTEMS - AIS - 27.2 - AIS - HIGH PRESSURE SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB188 HOSE CLAMP - 90X12 Enquire To Order
Photo Part No Description Price (each) Stock
15FA016CP HOSE - HIGH PRESSURE AIR - WCAC TO THROTTLE - LH $355.29 To Order
Photo Part No Description Price (each) Stock
15FA017CP HOSE - HIGH PRESSURE AIR - WCAC TO THROTTLE - RH $355.29 To Order
Photo Part No Description Price (each) Stock
15FA018CP HOSE - TURBOCHARGER - WATER CHARGE AIR COOLER - LH $338.87 To Order
Photo Part No Description Price (each) Stock
15FA019CP HOSE - TURBOCHARGER - WATER CHARGE AIR COOLER - RH $365.57 To Order
Photo Part No Description Price (each) Stock
00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
00RB049 HOSE CLAMP - 40-60MM Enquire To Order
Photo Part No Description Price (each) Stock
15FA253CP HOSE - WCAC TO CLEAN AIR DUCT - LH $132.00 To Order
Photo Part No Description Price (each) Stock
00RA580 SCREW - M6X1X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
Photo Part No Description Price (each) Stock
15FA337CP HOUSING - EDV STAND $284.34 To Order
Photo Part No Description Price (each) Stock
00RB139 STEPLESS EAR CLAMP - 34.6-706DR Enquire To Order
Photo Part No Description Price (each) Stock
15FA252CP HOSE - WCAC TO CLEAN AIR DUCT - RH $132.00 To Order
Photo Part No Description Price (each) Stock
00RB066 SWIVEL CLIP - 25-27MM - FEMALE Enquire To Order

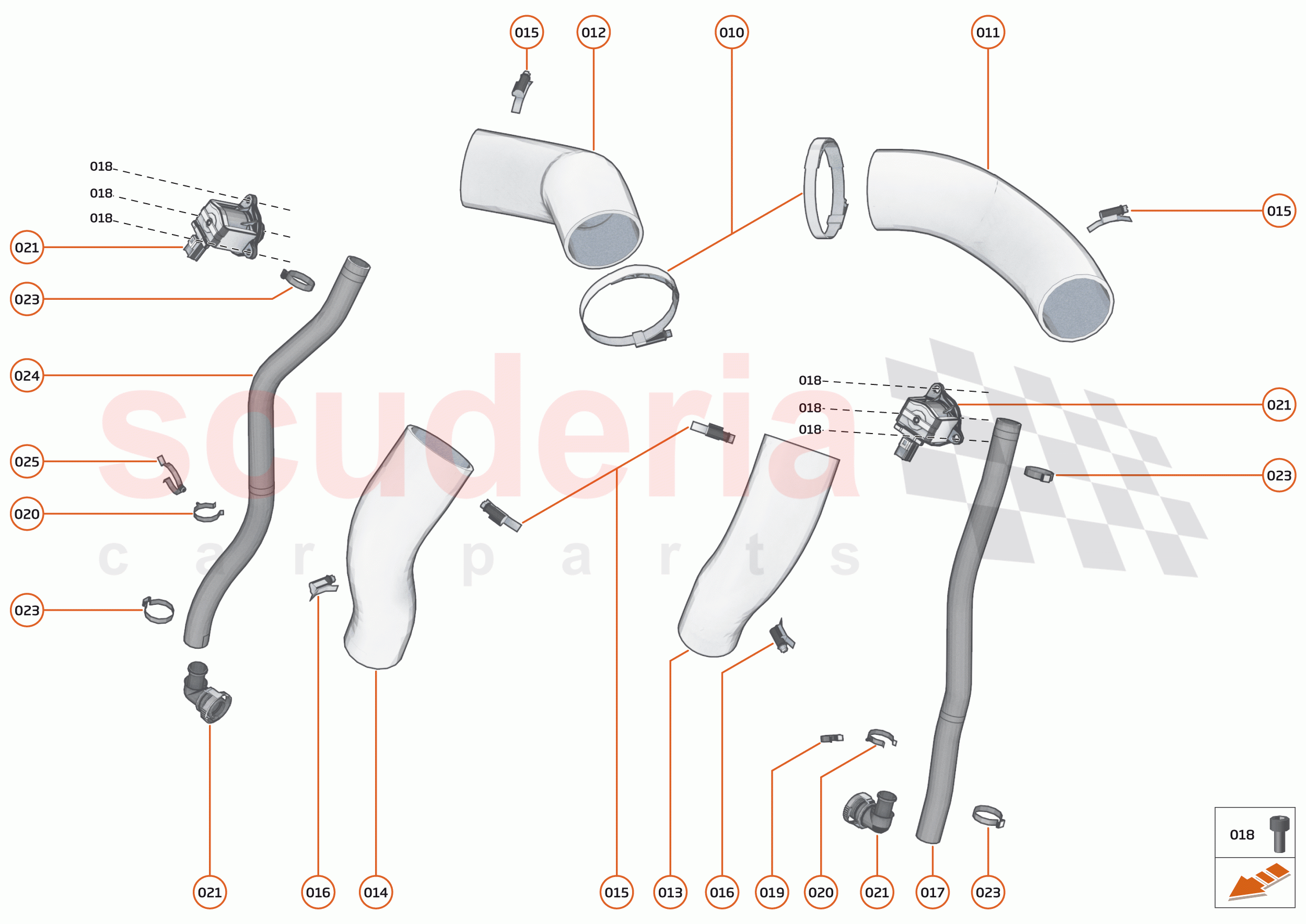

27 - AIR INDUCTION SYSTEMS - AIS - 27.2 - AIS - HIGH PRESSURE SYSTEM of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB188
HOSE CLAMP - 90X12 		- 2
PE
 Enquire
011 15FA016CP
HOSE - HIGH PRESSURE AIR - WCAC TO THROTTLE - LH 		$355.29 1
TO
012 15FA017CP
HOSE - HIGH PRESSURE AIR - WCAC TO THROTTLE - RH 		$355.29 1
TO
013 15FA018CP
HOSE - TURBOCHARGER - WATER CHARGE AIR COOLER - LH 		$338.87 1
TO
014 15FA019CP
HOSE - TURBOCHARGER - WATER CHARGE AIR COOLER - RH 		$365.57 1
TO
015 00RB030
HOSE CLAMP - 60-80 - NORMA TORRO 		- 4
PE
 Enquire
016 00RB049
HOSE CLAMP - 40-60MM 		- 2
PE
 Enquire
017 15FA253CP
HOSE - WCAC TO CLEAN AIR DUCT - LH 		$132.00 1
TO
018 00RA580
SCREW - M6X1X16 		- 6
PE
 Enquire
019 00RB032
CLIP - 13-14MM - FEMALE 		- 1
PE
 Enquire
020 00RG018
SWIVEL CLIP - 22-24MM -MALE 		- 2
PE
 Enquire
021 15FA337CP
HOUSING - EDV STAND 		$284.34 2
TO
022 15FA338CP
HOSE - EDV
HOSE - EDV; 		$12.74 2
TO
023 00RB139
STEPLESS EAR CLAMP - 34.6-706DR 		- 4
PE
 Enquire
024 15FA252CP
HOSE - WCAC TO CLEAN AIR DUCT - RH 		$132.00 1
TO
025 00RB066
SWIVEL CLIP - 25-27MM - FEMALE 		- 1
PE
 Enquire
