33 - Rear Axle - 33.1 - Transmission

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 33 - REAR AXLE - 33.1 - TRANSMISSION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11SA022CP INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE $124.38 To Order
Photo Part No Description Price (each) Stock
00RA202 BOLT - M10X1.5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA269 NUT - M10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA559 BOLT - HEX HEAD - M10X1.5X40 Enquire To Order
Photo Part No Description Price (each) Stock
11G0089CP SCREW ADJUSTER - TRANSMISSION $74.95 To Order
Photo Part No Description Price (each) Stock
11G0090CP NUT - SCREW ADJUSTER - TRANSMISSION $79.96 To Order
Photo Part No Description Price (each) Stock
11G0092CP SHOULDER BOLT-HEX HD-M14 - 16 X 123 - BOLT- SCREW ADJUSTER - TRANSMISSION $189.92 To Order
Photo Part No Description Price (each) Stock
11G0017CP FILTER-CLUTCH FLUID $98.61 IN STOCK
Photo Part No Description Price (each) Stock
11G0018CP FILTER-TRANSMISSION OIL $172.62 IN STOCK
Photo Part No Description Price (each) Stock
11G0019CP Access Cover - Filter - Clutch Fluid $162.46 To Order
Photo Part No Description Price (each) Stock
11G0113CP BEARING COVER-PRIM24Y SHAFT $223.40 To Order
Photo Part No Description Price (each) Stock
11G0122CP BEARING COVER-SECO24ARY SHAFT $223.40 To Order
Photo Part No Description Price (each) Stock
11G0171CP Breather - Transmission $40.60 To Order
Photo Part No Description Price (each) Stock
13G0055CP Oil Cooler - Clutch $385.87 To Order
Photo Part No Description Price (each) Stock
13G0060CP OIL COOLER-TRANSMI24ION $385.87 To Order
Photo Part No Description Price (each) Stock
14GA005CP MOUNT - TRANSMISSION $385.87 To Order
Photo Part No Description Price (each) Stock
14G0059CP HARNESS - TRANSMISSION $5,136.09 To Order
Photo Part No Description Price (each) Stock
15GA017CP TANK ASSY - BREATHER - CLUTCH FLUID $765.36 To Order
Photo Part No Description Price (each) Stock
15GA026CP DUAL CLUTCH TRANSMISSION $67,178.14 To Order
15GA023CP DUAL CLUTCH TRANSMISSION Enquire To Order
14GA013CP DUAL CLUTCH - ASSY $7,955.90 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13G0053CP ASSY-TRANS OIL PUMP 4.45CC $11,596.21 To Order
Photo Part No Description Price (each) Stock
11G0163CP OUTPUT SHAFT SEAL-LH $76.15 IN STOCK
Photo Part No Description Price (each) Stock
11G0164CP Seal - Driveshaft Output - RH $76.15 To Order
Photo Part No Description Price (each) Stock
12G0283CP GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY $385.87 To Order
Photo Part No Description Price (each) Stock
11G0165CP Seal - Input Shaft - Transmission $76.15 To Order

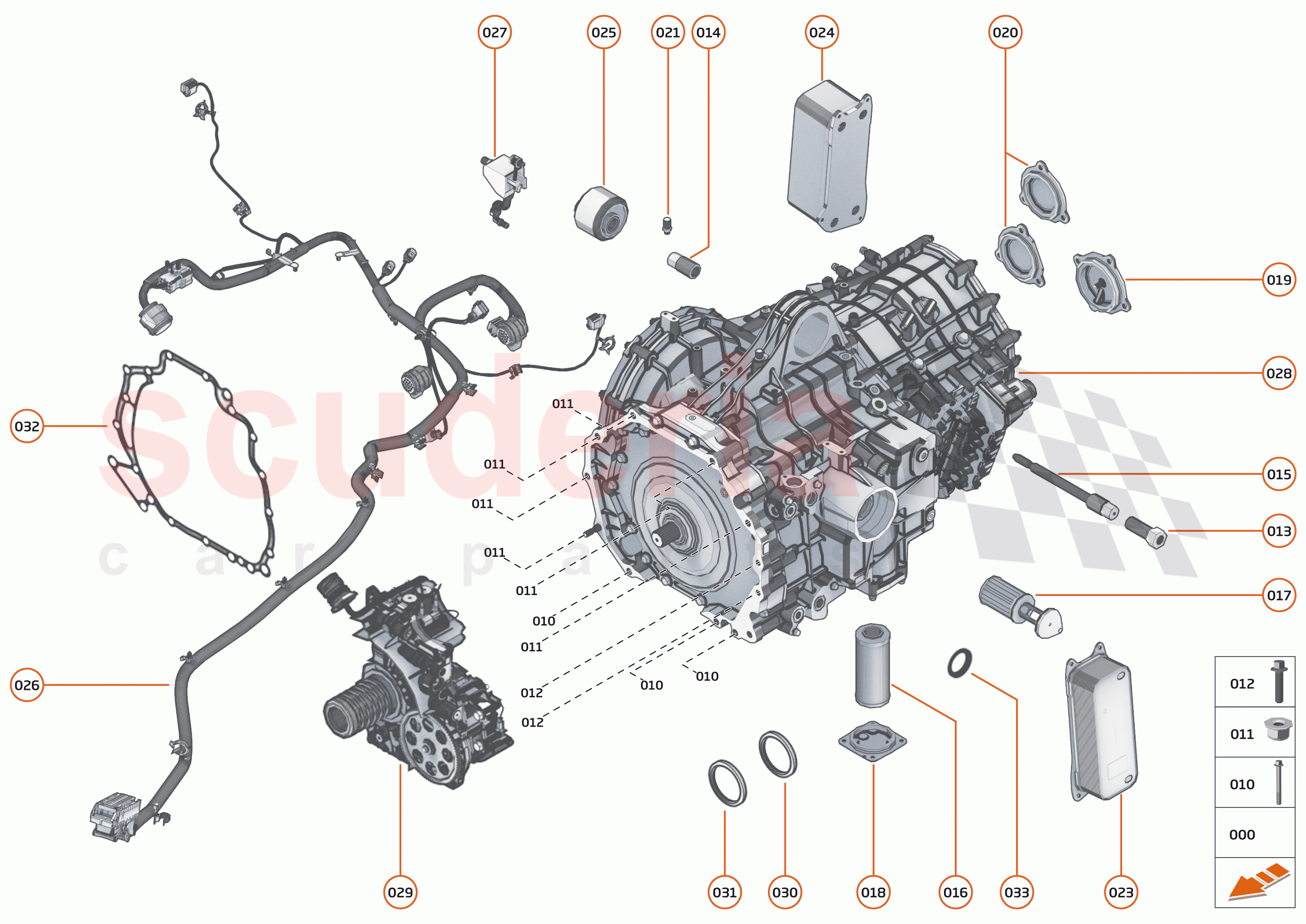

33 - REAR AXLE - 33.1 - TRANSMISSION of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11SA022CP
INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE 		$124.38 -
TO
010 00RA202
BOLT - M10X1.5 - HEX 		- 3
PE
 Enquire
011 00RA269
NUT - M10 - HEX 		- 6
PE
 Enquire
012 00RA559
BOLT - HEX HEAD - M10X1.5X40 		- 2
PE
 Enquire
013 11G0089CP
SCREW ADJUSTER - TRANSMISSION 		$74.95 1
TO
014 11G0090CP
NUT - SCREW ADJUSTER - TRANSMISSION 		$79.96 1
TO
015 11G0092CP
SHOULDER BOLT-HEX HD-M14 - 16 X 123 - BOLT- SCREW ADJUSTER - TRANSMISSION 		$189.92 1
TO
016 11G0017CP
FILTER-CLUTCH FLUID
IN STOCK 		$98.61 1
IN
017 11G0018CP
FILTER-TRANSMISSION OIL
IN STOCK 		$172.62 1
IN
018 11G0019CP
Access Cover - Filter - Clutch Fluid 		$162.46 1
TO
019 11G0113CP
BEARING COVER-PRIM24Y SHAFT 		$223.40 1
TO
020 11G0122CP
BEARING COVER-SECO24ARY SHAFT 		$223.40 2
TO
021 11G0171CP
Breather - Transmission 		$40.60 1
TO
022 12G0272CP
OIL - CLUTCH - PENTOSIN FFL4 - 1 LITRE 		- 1
PE
 Enquire
022 11Q0765CP
OIL - CLUTCH - PENTOSIN FFL4 - 1 LITRE 		$29.80 8
TO
023 13G0055CP
Oil Cooler - Clutch 		$385.87 1
TO
024 13G0060CP
OIL COOLER-TRANSMI24ION 		$385.87 1
TO
025 14GA005CP
MOUNT - TRANSMISSION 		$385.87 1
TO
026 14G0059CP
HARNESS - TRANSMISSION 		$5,136.09 1
TO
027 15GA017CP
TANK ASSY - BREATHER - CLUTCH FLUID 		$765.36 1
TO
028 15GA026CP
DUAL CLUTCH TRANSMISSION 		$67,178.14 1
TO
028 15GA023CP
DUAL CLUTCH TRANSMISSION 		- 1
PE
 Enquire
028 14GA013CP
DUAL CLUTCH - ASSY 		$7,955.90 1
TO
028 14GA014CP
DUAL CLUTCH - ASSY 		$428.26 1
TO
028 14GA011CP
DUAL CLUTCH TRANSMISSION 		$32,789.32 1
TO
029 13G0053CP
ASSY-TRANS OIL PUMP 4.45CC 		$11,596.21 1
TO
030 11G0163CP
OUTPUT SHAFT SEAL-LH
IN STOCK 		$76.15 -
IN
031 11G0164CP
Seal - Driveshaft Output - RH 		$76.15 -
TO
032 12G0283CP
GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY 		$385.87 -
TO
033 11G0165CP
Seal - Input Shaft - Transmission 		$76.15 -
TO
