McLaren Senna GTR - 31 - COOLING SYSTEM - 31.4 - LOW TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13L0224CP PIPE CLIP - 5 WAY $13.18 To Order
Photo Part No Description Price (each) Stock
14L0125CP CLIP - TUNNEL - 12 WAY $35.54 To Order
Photo Part No Description Price (each) Stock
15LA003RP HOSE-TUNNEL-TO-LTR $393.37 To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB201 CLAMP - SPRING BAND - 21X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB025 Clip - 13-14mm - Male-Female Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB034 CLIP - 14-15MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
15LA004RP HOSE-LTR-TO-TUNNEL $393.37 To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
14L0068CP HOSE - LTR CIRCUIT - FEED - CENTRE $304.64 To Order
Photo Part No Description Price (each) Stock
14L0069CP HOSE - LTR CIRCUIT - RETURN - CENTRE $304.64 To Order
Photo Part No Description Price (each) Stock
15LA038CP CLIP - CHASSIX TUNNES $75.52 To Order
14L0150CP CLIP - CHASSIS TUNNEL $18.26 To Order
Photo Part No Description Price (each) Stock
14L0151CP PIPE CLIP - 8 WAY $15.21 To Order
Photo Part No Description Price (each) Stock
14LA022CP CLIP - 4WAY - RH $8.70 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB191 P-CLIP - 14X15 Enquire To Order
Photo Part No Description Price (each) Stock
15L0055CP HOSE - TUNNEL TO WCAC - LH $261.81 To Order
Photo Part No Description Price (each) Stock
15LA063CP HOSE - TUNNEL TO WCAC - RH $261.81 To Order
15L0057CP HOSE - TUNNEL TO WCAC - RH Enquire To Order
Photo Part No Description Price (each) Stock
15L0059CP HOSE - WCAC TO PUMP $765.36 To Order
Photo Part No Description Price (each) Stock
15LA068CP PIPE CLIP-RR-LH-EXTENDED $60.42 To Order
Photo Part No Description Price (each) Stock
13L0211CP PIPE CLIP - REAR - RIGHT $45.68 To Order
Photo Part No Description Price (each) Stock
15LA049CP BRACKET - LTR OUTLET HOSE $12.17 To Order

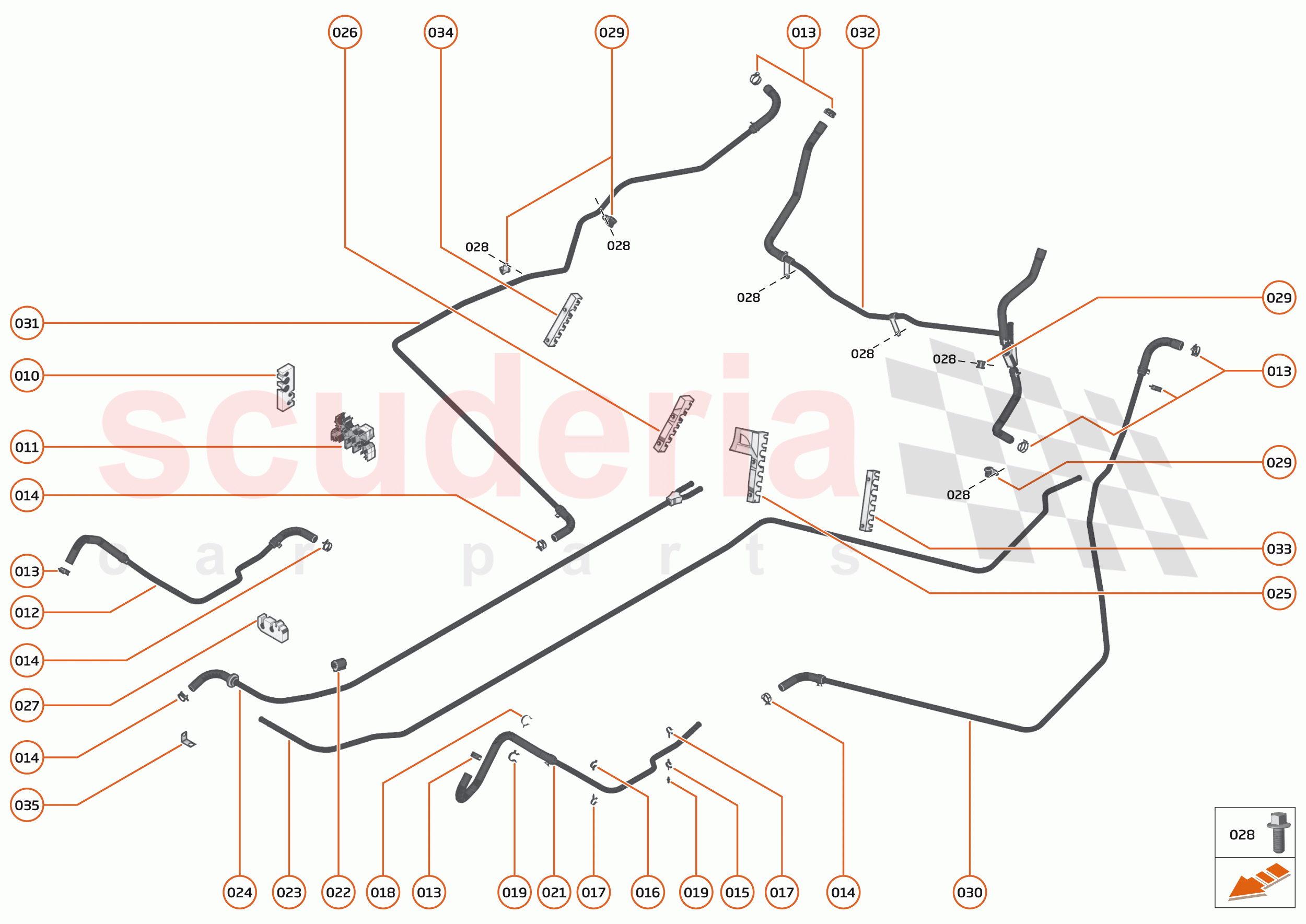

31 - COOLING SYSTEM - 31.4 - LOW TEMPERATURE CIRCUIT & PIPES of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13L0224CP
PIPE CLIP - 5 WAY 		$13.18 1
TO
011 14L0125CP
CLIP - TUNNEL - 12 WAY 		$35.54 2
TO
012 15LA003RP
HOSE-TUNNEL-TO-LTR 		$393.37 1
TO
013 00RB202
CLAMP - SPRING BAND - 23X12 		- 1
PE
 Enquire
014 00RB201
CLAMP - SPRING BAND - 21X12 		- 1
PE
 Enquire
015 00RB025
Clip - 13-14mm - Male-Female 		- 1
PE
 Enquire
016 00RB032
CLIP - 13-14MM - FEMALE 		- 1
PE
 Enquire
017 00RB034
CLIP - 14-15MM - MALE 		- 2
PE
 Enquire
018 00RG018
SWIVEL CLIP - 22-24MM -MALE 		- 1
PE
 Enquire
019 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 1
PE
 Enquire
020 00RB007
CLIP - 18-20MM - FEMALE 		- 1
PE
 Enquire
021 15LA004RP
HOSE-LTR-TO-TUNNEL 		$393.37 1
TO
022 00RA357
PIPE PROTECTOR 		- 1
PE
 Enquire
023 14L0068CP
HOSE - LTR CIRCUIT - FEED - CENTRE 		$304.64 1
TO
024 14L0069CP
HOSE - LTR CIRCUIT - RETURN - CENTRE 		$304.64 1
TO
025 15LA038CP
CLIP - CHASSIX TUNNES 		$75.52 1
TO
025 14L0150CP
CLIP - CHASSIS TUNNEL 		$18.26 1
TO
026 14L0151CP
PIPE CLIP - 8 WAY 		$15.21 1
TO
027 14LA022CP
CLIP - 4WAY - RH 		$8.70 1
TO
028 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2
PE
 Enquire
029 00RB191
P-CLIP - 14X15 		- 2
PE
 Enquire
030 15L0055CP
HOSE - TUNNEL TO WCAC - LH 		$261.81 1
TO
031 15LA063CP
HOSE - TUNNEL TO WCAC - RH 		$261.81 1
TO
031 15L0057CP
HOSE - TUNNEL TO WCAC - RH 		- 1
PE
 Enquire
032 15L0059CP
HOSE - WCAC TO PUMP 		$765.36 1
TO
033 15LA068CP
PIPE CLIP-RR-LH-EXTENDED 		$60.42 1
TO
034 13L0211CP
PIPE CLIP - REAR - RIGHT 		$45.68 1
TO
035 15LA049CP
BRACKET - LTR OUTLET HOSE 		$12.17 1
TO
036 00RC113
SPACER - NYLON - 6.6X17.45X1.05 		- 1
PE
 Enquire
037 00RA083
SCREW - M6X20 - FLANGE HEX 		- 1
PE
 Enquire
