30 - Fuel System - 30.4 - Evaporative System

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 30 - FUEL SYSTEM - 30.4 - EVAPORATIVE SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RB034 CLIP - 14-15MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB191 P-CLIP - 14X15 Enquire To Order

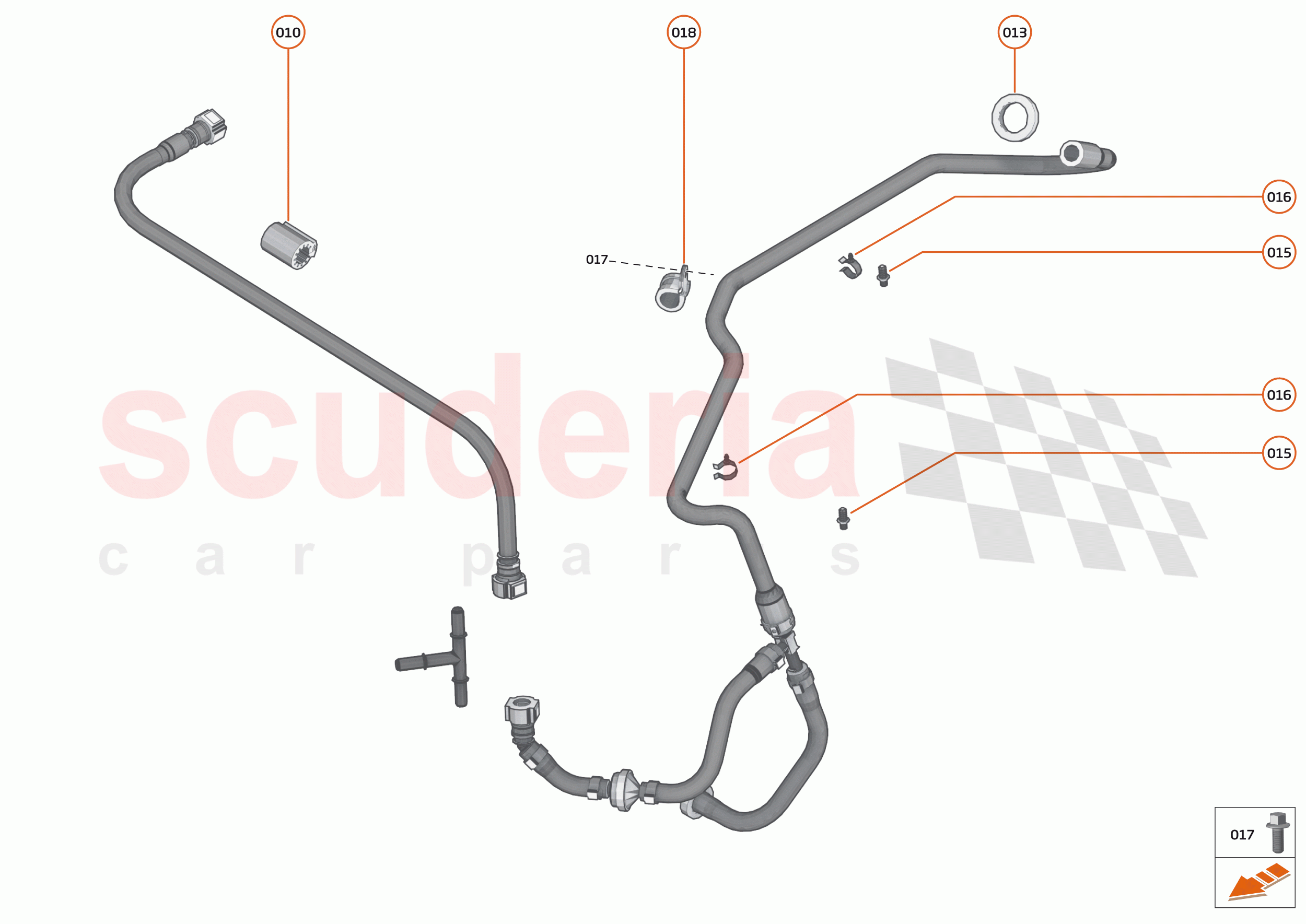

30 - FUEL SYSTEM - 30.4 - EVAPORATIVE SYSTEM of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA366
PIPE PROTECTOR - 13MM ID 		- 1
PE
 Enquire
013 00RB094
OETIKER CLIP - 21.0 		- 1
PE
 Enquire
015 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 1
PE
 Enquire
016 00RB034
CLIP - 14-15MM - MALE 		- 1
PE
 Enquire
017 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 1
PE
 Enquire
017 00RA313
SCREW - M6X16 - HEX - SILVER 		- 1
PE
 Enquire
018 00RB191
P-CLIP - 14X15 		- 1
PE
 Enquire
