McLaren Senna GTR - 30 - FUEL SYSTEM - 30.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14KA056CP CONTROLLER - FUEL PUMP $342.38 To Order
Photo Part No Description Price (each) Stock
15KA028RP ASSY -FUEL TANK -COMPLETE $57,981.13 To Order
15KA004RP ASSY FUEL TANK COMPLETE Enquire To Order
Photo Part No Description Price (each) Stock
15KA015RP COVER FUEL CELL $18,138.11 To Order
Photo Part No Description Price (each) Stock
15KA009RP PLATE RETAINER PLUG-IN BREATHE $137.03 To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA372 BOLT - HEX HEAD - LOCK - M5X25 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RG003 FIRTREE 7.2X15X24 Enquire To Order
Photo Part No Description Price (each) Stock
15KA027RP PIPE BREATHER FUEL TANK $7,629.39 To Order
15KA011RP PIPE BREATHER FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
15KA026RP PIPE BREATHER VENT HOSE $1,164.24 To Order
15KA023RP PIPE BREATHER VENT HOSE Enquire To Order
Photo Part No Description Price (each) Stock
15KA025RP PIPE FUEL FILL VENT $6,852.18 To Order
Photo Part No Description Price (each) Stock
11CA014CP FOAM PAD-PIPE-VAC-BRAKE $23.03 To Order
Photo Part No Description Price (each) Stock
15KA010RP PIPE FUEL TANK FEED $1,887.52 To Order

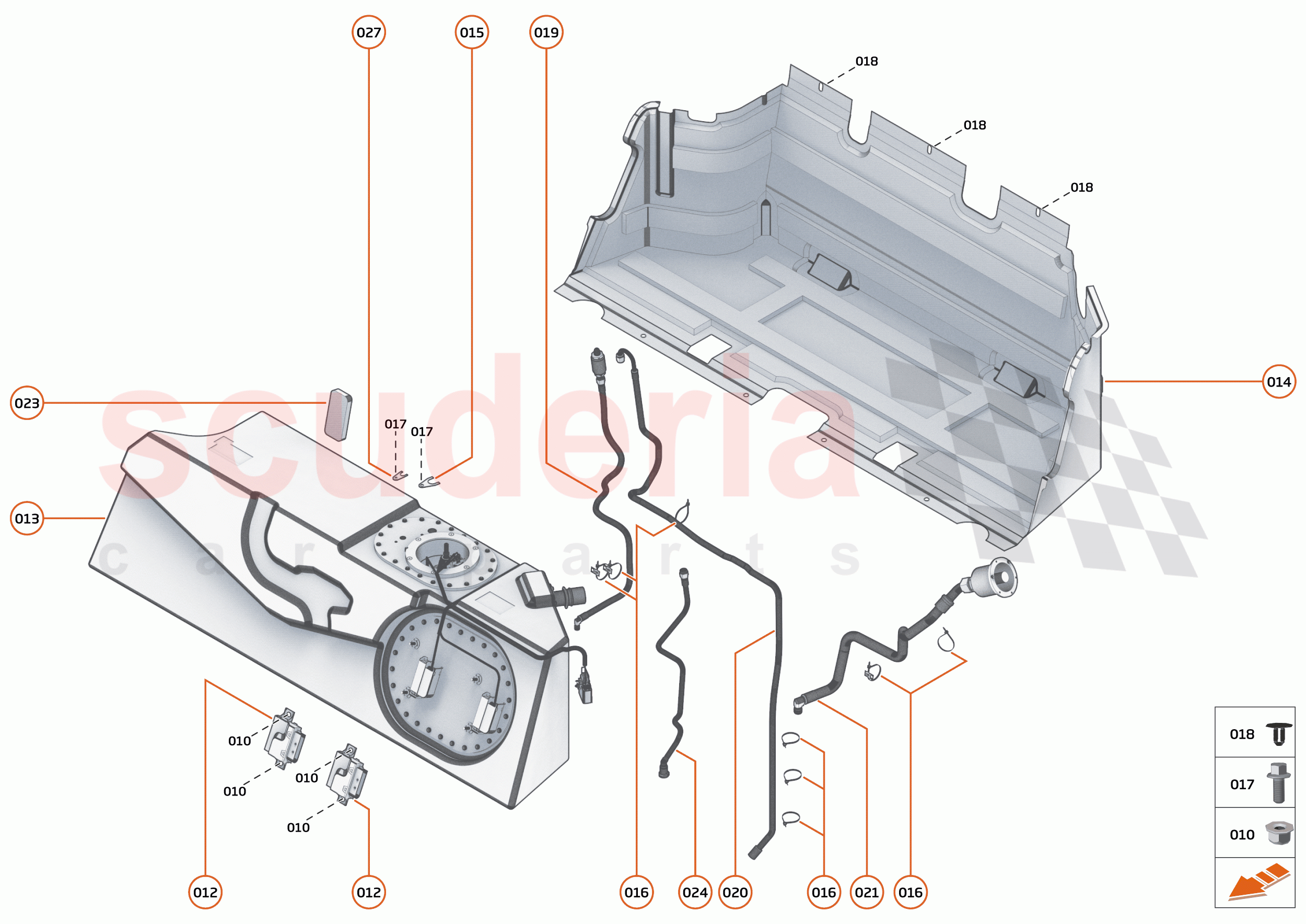

30 - FUEL SYSTEM - 30.1 - FUEL TANK of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
012 14KA056CP
CONTROLLER - FUEL PUMP 		$342.38 2
TO
013 15KA028RP
ASSY -FUEL TANK -COMPLETE 		$57,981.13 1
TO
013 15KA004RP
ASSY FUEL TANK COMPLETE 		- 1
PE
 Enquire
014 15KA015RP
COVER FUEL CELL 		$18,138.11 1
TO
015 15KA009RP
PLATE RETAINER PLUG-IN BREATHE 		$137.03 1
TO
016 00RL012
CABLE TIE - 300X4.6MM 		- 6
PE
 Enquire
017 00RA372
BOLT - HEX HEAD - LOCK - M5X25 - 8.8 		- -
PE
 Enquire
018 00RG003
FIRTREE 7.2X15X24 		- 3
PE
 Enquire
019 15KA027RP
PIPE BREATHER FUEL TANK 		$7,629.39 1
TO
019 15KA011RP
PIPE BREATHER FUEL TANK 		- 1
PE
 Enquire
020 15KA026RP
PIPE BREATHER VENT HOSE 		$1,164.24 1
TO
020 15KA023RP
PIPE BREATHER VENT HOSE 		- 1
PE
 Enquire
021 15KA025RP
PIPE FUEL FILL VENT 		$6,852.18 1
TO
022 15KA029RP
PLATE RETAINER 6 PLUG-IN 		$393.37 1
TO
023 11CA014CP
FOAM PAD-PIPE-VAC-BRAKE 		$23.03 -
TO
024 15KA010RP
PIPE FUEL TANK FEED 		$1,887.52 1
TO
