29 - Exhaust - 29.1 - Link Pipe And Catalyst

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 29 - EXHAUST - 29.1 - LINK PIPE AND CATALYST

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
15HA006RP ASSY LINK PIPE LH $10,996.42 To Order
Photo Part No Description Price (each) Stock
14H0054CP GASKET - LINK PIPE $35.54 To Order
Photo Part No Description Price (each) Stock
14H0111CP NUT - FLANGE - M8 $6.48 To Order
Photo Part No Description Price (each) Stock
14HA040CP BRACKET - LINK PIPE - EXHAUST - RH $80.54 To Order
Photo Part No Description Price (each) Stock
00RC016 WASHER - M6X12.5X1.8 Enquire To Order
Photo Part No Description Price (each) Stock
15HA007RP ASSY LINK PIPE RH $10,996.42 To Order
Photo Part No Description Price (each) Stock
14HA041CP BRACKET - LINK PIPE - EXHAUST - LH $80.54 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
00RX003 BOLT - M6X1X12 - HEX Enquire To Order

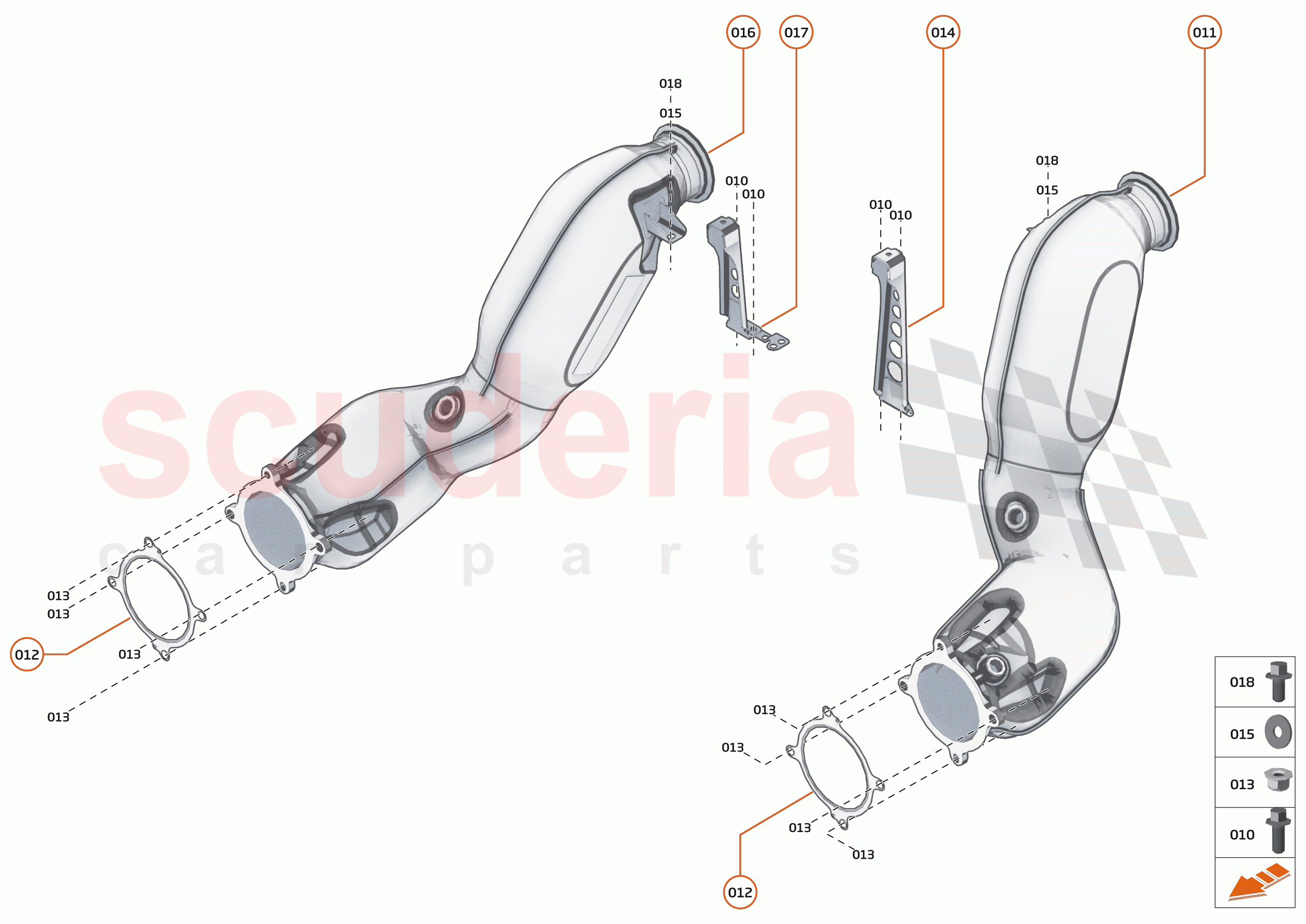

29 - EXHAUST - 29.1 - LINK PIPE AND CATALYST of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2
PE
 Enquire
011 15HA006RP
ASSY LINK PIPE LH 		$10,996.42 1
TO
012 14H0054CP
GASKET - LINK PIPE 		$35.54 1
TO
013 14H0111CP
NUT - FLANGE - M8 		$6.48 4
TO
014 14HA040CP
BRACKET - LINK PIPE - EXHAUST - RH 		$80.54 1
TO
015 00RC016
WASHER - M6X12.5X1.8 		- 1
PE
 Enquire
016 15HA007RP
ASSY LINK PIPE RH 		$10,996.42 1
TO
017 14HA041CP
BRACKET - LINK PIPE - EXHAUST - LH 		$80.54 1
TO
018 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 1
PE
 Enquire
018 00RX003
BOLT - M6X1X12 - HEX 		- 1
PE
 Enquire
