McLaren Senna GTR - 23 - ENGINE - 23.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14F0855CP NVH - FRONT COVER $223.40 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14F0851CP FRONT COVER - ENGINE - INC PERIMETER SEAL - NOT INC CRANK SEAL $426.52 To Order
Photo Part No Description Price (each) Stock
11F0824CP BOLT - M6X30 - ENGINE Enquire To Order
11F1776CP BOLT - M6X30 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F1904CP NUT - M6 $4.44 To Order
Photo Part No Description Price (each) Stock
11F1393CP Seal - Engine - Front Cover Perimeter $55.84 To Order
Photo Part No Description Price (each) Stock
11F2579CP FRONT CRANK SEAL $111.69 IN STOCK
Photo Part No Description Price (each) Stock
11F0977CP Cover - Cylinder Head Front - LH - Engine $152.32 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
11F0978CP Cover - Cylinder Head Front - RH - Engine $152.32 To Order
Photo Part No Description Price (each) Stock
11F0722CP Chain Drive Kit - Engine - Oil Pump $223.40 To Order
Photo Part No Description Price (each) Stock
11F0723CP Camshaft Drive Kit - Engine $1,399.53 To Order
Photo Part No Description Price (each) Stock
11F0721CP Chain Drive Kit - Engine - Water Pump $264.02 To Order
Photo Part No Description Price (each) Stock
11F0708CP ENGINE CRANKSHAFT 24MPER $629.62 To Order
Photo Part No Description Price (each) Stock
11F0816CP Bolt Set - M8x20 - Engine - Crankshaft Damper $60.90 To Order
Photo Part No Description Price (each) Stock
11F2344CP SEAL - ENGINE CRANK - REAR $111.69 To Order

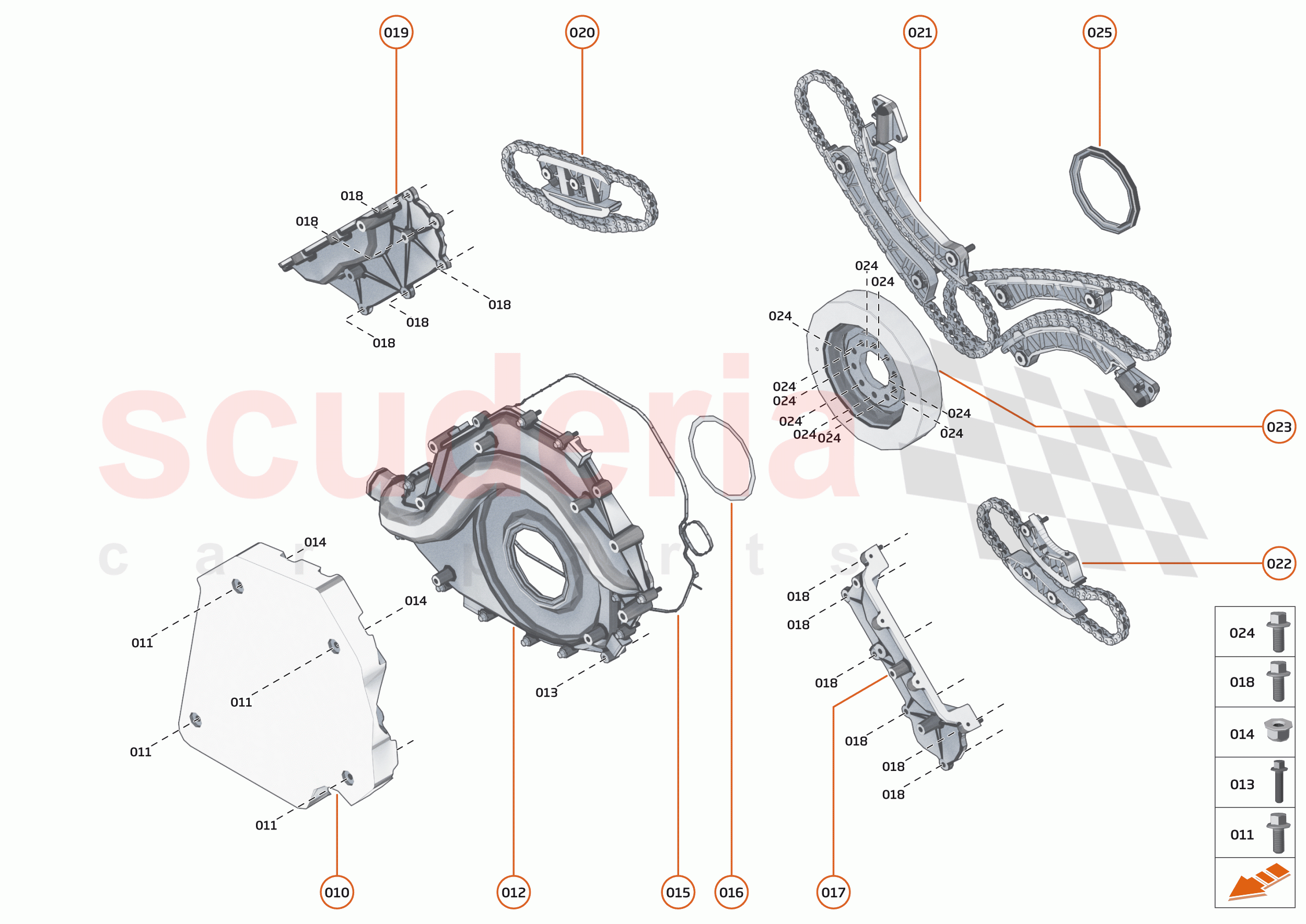

23 - ENGINE - 23.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14F0855CP
NVH - FRONT COVER 		$223.40 1
TO
011 00RA120
SCREW - M6X25 - HEX 		- 4
PE
 Enquire
012 14F0851CP
FRONT COVER - ENGINE - INC PERIMETER SEAL - NOT INC CRANK SEAL 		$426.52 -
TO
013 11F0824CP
BOLT - M6X30 - ENGINE 		- -
PE
 Enquire
013 11F1776CP
BOLT - M6X30 - HEX 		$10.14 14
TO
014 11F1904CP
NUT - M6
NUT - M6; 		$4.44 2
TO
015 11F1393CP
Seal - Engine - Front Cover Perimeter 		$55.84 1
TO
016 11F2579CP
FRONT CRANK SEAL
IN STOCK 		$111.69 1
IN
017 11F0977CP
Cover - Cylinder Head Front - LH - Engine 		$152.32 1
TO
018 11F1793CP
BOLT - M6X20 - HEX 		$11.14 16
TO
019 11F0978CP
Cover - Cylinder Head Front - RH - Engine 		$152.32 1
TO
020 11F0722CP
Chain Drive Kit - Engine - Oil Pump 		$223.40 1
TO
021 11F0723CP
Camshaft Drive Kit - Engine 		$1,399.53 1
TO
022 11F0721CP
Chain Drive Kit - Engine - Water Pump 		$264.02 1
TO
023 11F0708CP
ENGINE CRANKSHAFT 24MPER 		$629.62 1
TO
024 11F0816CP
Bolt Set - M8x20 - Engine - Crankshaft Damper 		$60.90 1
TO
025 11F2344CP
SEAL - ENGINE CRANK - REAR 		$111.69 1
TO
