37 - WIRING HARNESS - 37.1 - POWER AND GROUND DISTRIBUTION of McLaren McLaren Senna GTR

McLaren Senna GTR - 37 - WIRING HARNESS - 37.1 - POWER AND GROUND DISTRIBUTION

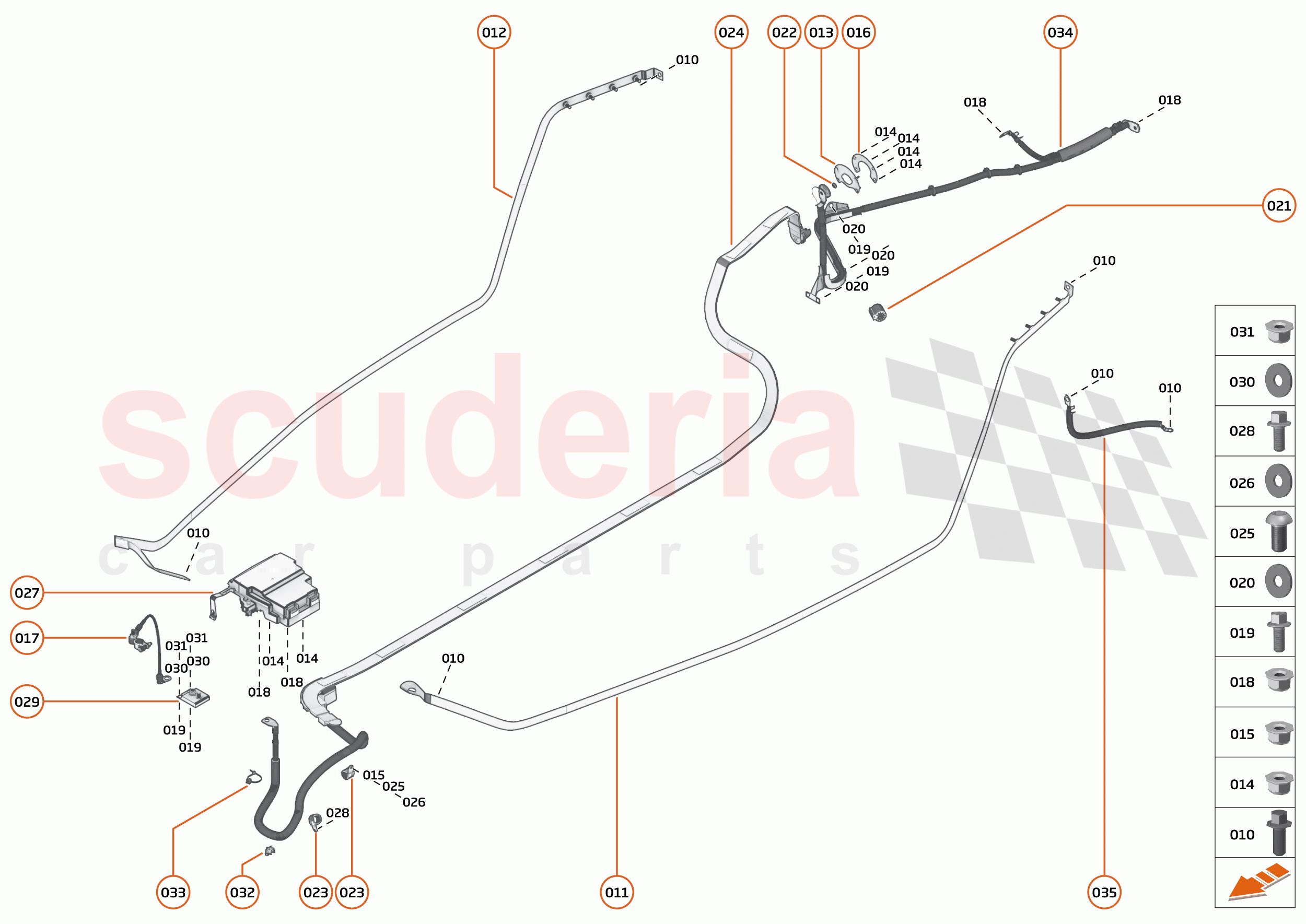

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA344	SCREW - HEX - FLANGE - M8X16 - 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M2412CP	WIRING HARNESS GND24OOP-LH	$966.78	To Order

Photo	Part No	Description	Price (each)	Stock
	11M2413CP	WIRING HARNESS GND24OOP-RH	$966.78	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0743CP	BUSBAR RETENTION PLATE	$60.42	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA555	NUT - M5X0.8 - HEX LOCKED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0779CP	BUSBAR RETENTION PLATE AFT - REAR	$30.20	To Order

Photo	Part No	Description	Price (each)	Stock
	15MA057RP	ASSY - CABLE BATTERY NEGATIVE	$445.71	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA075	NUT - M8-8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA367	PIPE PROTECTOR - 19MM ID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA262	HALF NUT - M8 - DIN 439	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB060	P CLIP - DIA 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0926CP	BUSBAR - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA602	BOLT - M6X1X10 - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC008	WASHER - M6X12.5X0.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14MA024CP	FUSEBOX - BATTERY - FRONT	$382.67	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA294	Screw - M6x16 - Taptite Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15MA035RP	SOLID STATE MASTER SWITCH	$1,208.49	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC016	WASHER - M6X12.5X1.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ZZUA016QP	M6X1.0 6PT KNUT	$4.61	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14MA628CP	WIRING HARNESS - STARTER MOTOR - INC. CARRIER	$1,289.04	To Order
	14MA614CP	WIRING HARNESS STARTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13MA183CP	ENGINE GROUND STRAP	$261.81	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	00RA344	SCREW - HEX - FLANGE - M8X16 - 8.8	00RA344 SCREW - HEX - FLANGE - M8X16 - 8.8	-	-	PE	Enquire
011	11M2412CP	WIRING HARNESS GND24OOP-LH	11M2412CP WIRING HARNESS GND24OOP-LH	$966.78	1	TO
012	11M2413CP	WIRING HARNESS GND24OOP-RH	11M2413CP WIRING HARNESS GND24OOP-RH	$966.78	1	TO
013	11M0743CP	BUSBAR RETENTION PLATE	11M0743CP BUSBAR RETENTION PLATE	$60.42	1	TO
014	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED	-	-	PE	Enquire
015	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	1	PE	Enquire
016	11M0779CP	BUSBAR RETENTION PLATE AFT - REAR	11M0779CP BUSBAR RETENTION PLATE AFT - REAR	$30.20	1	TO
017	15MA057RP	ASSY - CABLE BATTERY NEGATIVE	15MA057RP ASSY - CABLE BATTERY NEGATIVE	$445.71	1	TO
018	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX	-	-	PE	Enquire
019	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	-	PE	Enquire
020	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6	-	3	PE	Enquire
021	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID	-	1	PE	Enquire
022	00RA262	HALF NUT - M8 - DIN 439	00RA262 HALF NUT - M8 - DIN 439	-	1	PE	Enquire
023	00RB060	P CLIP - DIA 20	00RB060 P CLIP - DIA 20	-	2	PE	Enquire
024	11M0926CP	BUSBAR - LHD	11M0926CP BUSBAR - LHD	-	1	PE	Enquire
025	00RA602	BOLT - M6X1X10 - TORX	00RA602 BOLT - M6X1X10 - TORX	-	1	PE	Enquire
026	00RC008	WASHER - M6X12.5X0.9	00RC008 WASHER - M6X12.5X0.9	-	1	PE	Enquire
027	14MA024CP	FUSEBOX - BATTERY - FRONT	14MA024CP FUSEBOX - BATTERY - FRONT	$382.67	1	TO
028	00RA294	Screw - M6x16 - Taptite Hex	00RA294 Screw - M6x16 - Taptite Hex	-	1	PE	Enquire
029	15MA035RP	SOLID STATE MASTER SWITCH	15MA035RP SOLID STATE MASTER SWITCH	$1,208.49	1	TO
030	00RC016	WASHER - M6X12.5X1.8	00RC016 WASHER - M6X12.5X1.8	-	2	PE	Enquire
031	ZZUA016QP	M6X1.0 6PT KNUT	ZZUA016QP M6X1.0 6PT KNUT	$4.61	2	TO
032	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL	-	1	PE	Enquire
033	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE	-	1	PE	Enquire
034	14MA628CP	WIRING HARNESS - STARTER MOTOR - INC. CARRIER	14MA628CP WIRING HARNESS - STARTER MOTOR - INC. CARRIER	$1,289.04	1	TO
034	14MA614CP	WIRING HARNESS STARTER	14MA614CP WIRING HARNESS STARTER	-	-	PE	Enquire
035	13MA183CP	ENGINE GROUND STRAP	13MA183CP ENGINE GROUND STRAP	$261.81	1	TO
