20 - Steering - 20.1 - Steering Fluid System

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 20 - STEERING - 20.1 - STEERING FLUID SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
15DA053CP RESERVOIR - PAS FLUID - CENTRE $1,198.32 To Order
Photo Part No Description Price (each) Stock
15DA051CP HOSE - PAS FLUID RESERVOIR $40.26 To Order
Photo Part No Description Price (each) Stock
00RA515 BOLT - HEX - FLANGE - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC118 WASHER - M6X14.4X2.4 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA540 SCREW - CAP HEAD - M8X1.25X20-10.9-72 Enquire To Order
Photo Part No Description Price (each) Stock
13DA012CP HOSE - PAS PUMP - STEERING RACK - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RB154 Hose Clamp - Oetiker - 27.1 Enquire To Order
00RB110 OETIKER CLIP - 19.2 Enquire To Order
Photo Part No Description Price (each) Stock
13DA004CP HOSE - FILTER TO STEERING RACK - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
00RB046 CLIP - 8-9MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB023 CLIP SPACER - 1MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB024 CLIP - 6.0-6.5MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
15DA010CP HOSE - PAS RESERVOIR - LHD $446.82 To Order
Photo Part No Description Price (each) Stock
00RB191 P-CLIP - 14X15 Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12D0014CP HOSE - PAS RESERVOIR - FILTER - EHPAS - LHD $241.69 To Order
15DA050CP HOSE - RESERVOIR TO - FILTER PUMP - LHD $507.76 To Order
Photo Part No Description Price (each) Stock
11D0095CP FILTER - PAS - STEERING $568.69 To Order

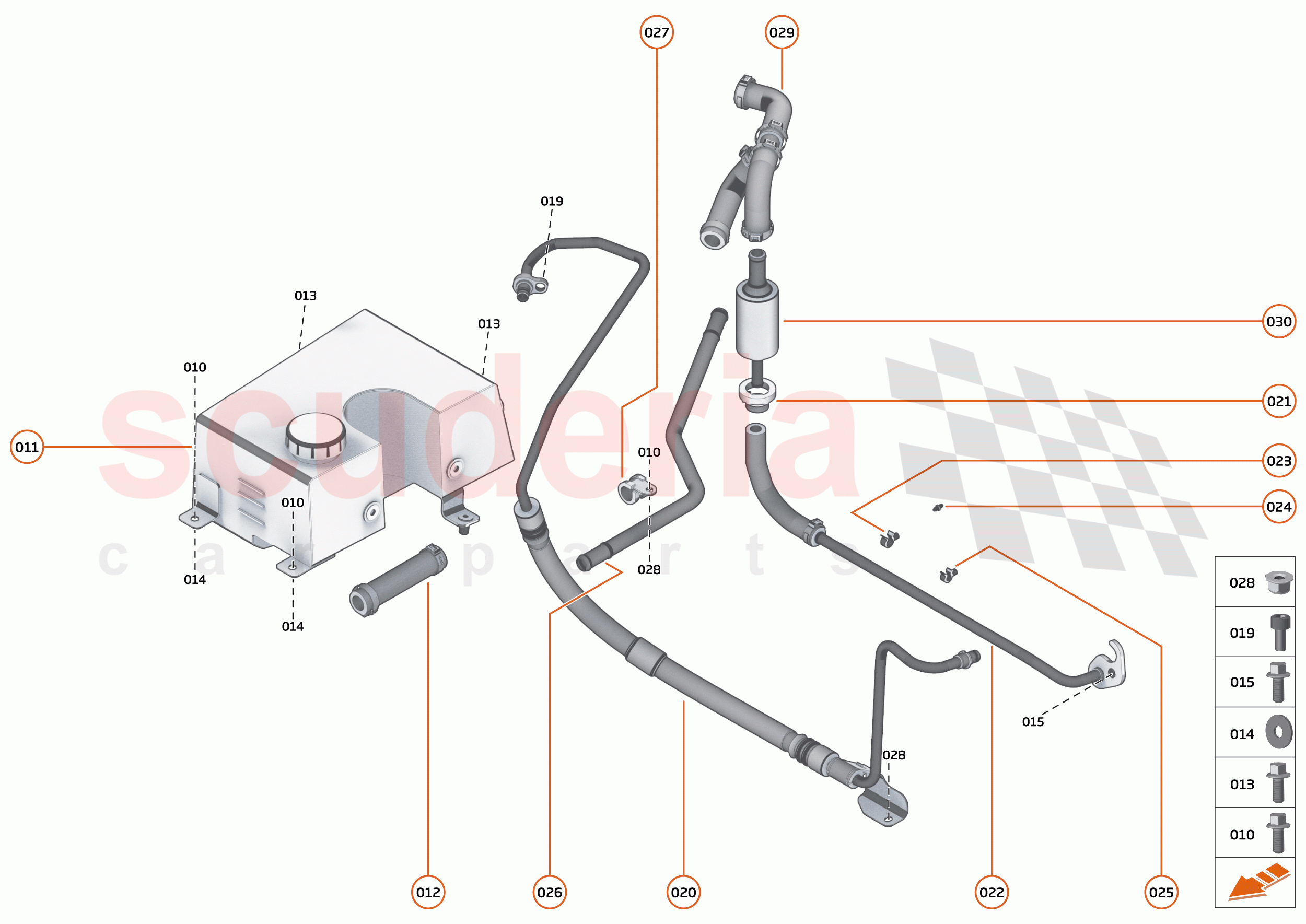

20 - STEERING - 20.1 - STEERING FLUID SYSTEM of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- -
PE
 Enquire
011 15DA053CP
RESERVOIR - PAS FLUID - CENTRE 		$1,198.32 1
TO
012 15DA051CP
HOSE - PAS FLUID RESERVOIR 		$40.26 1
TO
013 00RA515
BOLT - HEX - FLANGE - M6X16 		- 2
PE
 Enquire
014 00RC118
WASHER - M6X14.4X2.4 - BLACK 		- 2
PE
 Enquire
015 00RA002
BOLT - M8X20 - HEX 		- 1
PE
 Enquire
019 00RA540
SCREW - CAP HEAD - M8X1.25X20-10.9-72 		- 1
PE
 Enquire
020 13DA012CP
HOSE - PAS PUMP - STEERING RACK - LHD 		- 1
PE
 Enquire
021 00RB154
Hose Clamp - Oetiker - 27.1 		- 1
PE
 Enquire
021 00RB110
OETIKER CLIP - 19.2 		- 1
PE
 Enquire
022 13DA004CP
HOSE - FILTER TO STEERING RACK - LHD 		- 1
PE
 Enquire
023 00RB007
CLIP - 18-20MM - FEMALE 		- 1
PE
 Enquire
023 00RB046
CLIP - 8-9MM - FEMALE 		- 1
PE
 Enquire
024 00RB023
CLIP SPACER - 1MM - MALE 		- 1
PE
 Enquire
025 00RB024
CLIP - 6.0-6.5MM - FEMALE 		- 1
PE
 Enquire
026 15DA010CP
HOSE - PAS RESERVOIR - LHD 		$446.82 1
TO
027 00RB191
P-CLIP - 14X15 		- 1
PE
 Enquire
028 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 1
PE
 Enquire
028 00RA055
NUT - M6 - LOCKING - HEX 		- 1
PE
 Enquire
029 12D0014CP
HOSE - PAS RESERVOIR - FILTER - EHPAS - LHD 		$241.69 1
TO
029 15DA050CP
HOSE - RESERVOIR TO - FILTER PUMP - LHD 		$507.76 1
TO
030 11D0095CP
FILTER - PAS - STEERING 		$568.69 1
TO
