McLaren Senna GTR - 18 - BRAKES - 18.9 - VACCUM SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15CA211CP BRAKE BOOSTER - VACUUM PIPE TO ENGINE - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB093 OETIKER CLIP - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB110 OETIKER CLIP - 19.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB059 CLIP CONNECTOR - TRW Enquire To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
15CA134CP EVAC PUMP $584.08 To Order
Photo Part No Description Price (each) Stock
15CA016CP BRACKET - EVAC PUMP - LHD $111.69 To Order
Photo Part No Description Price (each) Stock
00RA631 BLT-HX-FL-PPT-M6X1X45-8.8-72 Enquire To Order
00RA568 BOLT - M6X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order

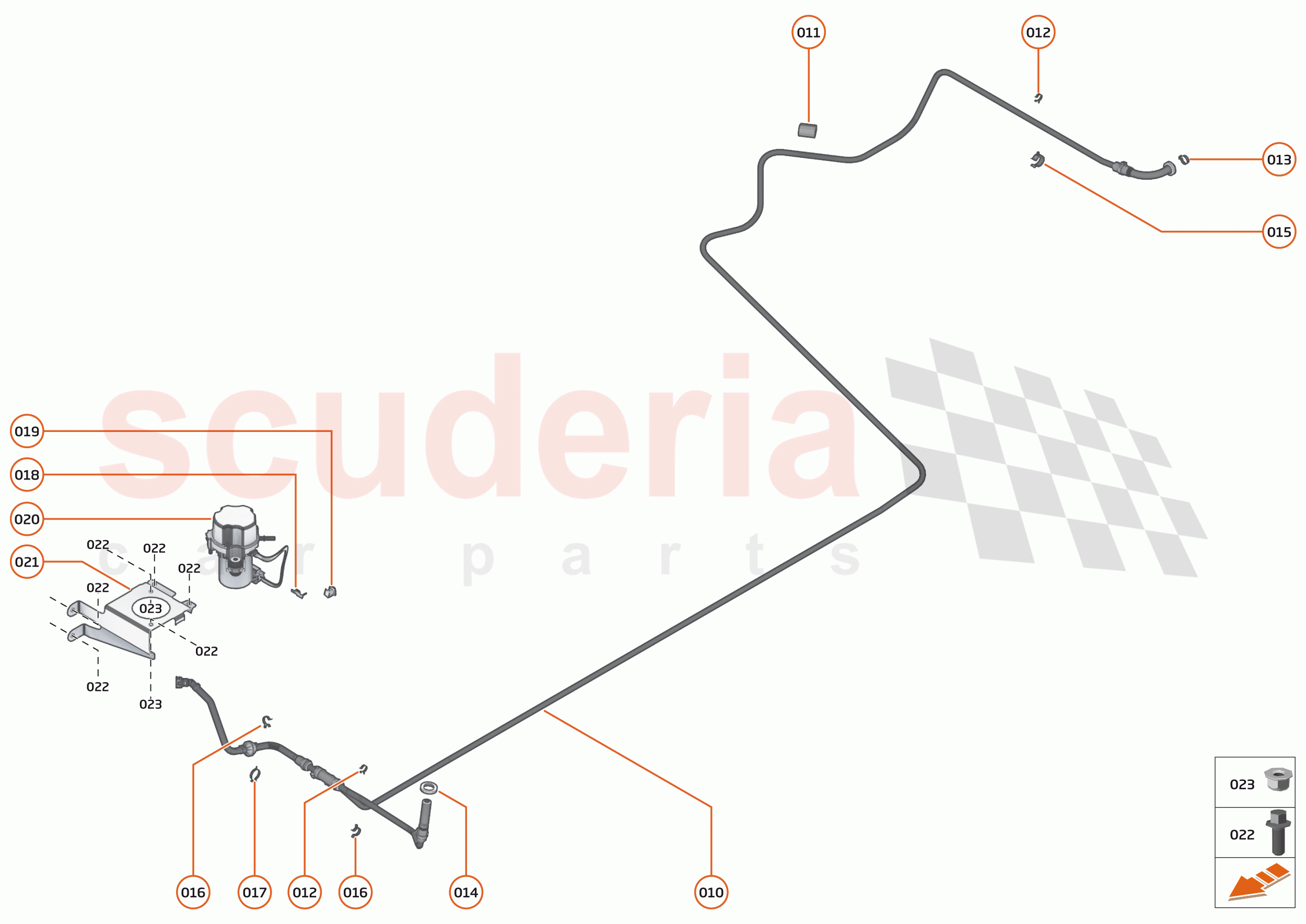

18 - BRAKES - 18.9 - VACCUM SYSTEM of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15CA211CP
BRAKE BOOSTER - VACUUM PIPE TO ENGINE - LHD 		- 1
PE
 Enquire
011 00RA366
PIPE PROTECTOR - 13MM ID 		- 1
PE
 Enquire
012 00RB018
CLIP - 11-13MM - MALE 		- 1
PE
 Enquire
013 00RB093
OETIKER CLIP - 16.6 		- 1
PE
 Enquire
014 00RB110
OETIKER CLIP - 19.2 		- 1
PE
 Enquire
015 00RB120
CLIP - 90 DEGREE - FEMALE - 20-22 		- 1
PE
 Enquire
016 00RB032
CLIP - 13-14MM - FEMALE 		- 2
PE
 Enquire
017 00RB008
CLIP - 18-20MM - MALE 		- 1
PE
 Enquire
018 00RB059
CLIP CONNECTOR - TRW 		- 1
PE
 Enquire
019 00RG025
CABLE TIE - PARALLEL - EDGE PANEL 		- 1
PE
 Enquire
020 15CA134CP
EVAC PUMP
EVAC PUMP; 		$584.08 1
TO
021 15CA016CP
BRACKET - EVAC PUMP - LHD 		$111.69 1
TO
022 00RA631
BLT-HX-FL-PPT-M6X1X45-8.8-72 		- 2
PE
 Enquire
022 00RA568
BOLT - M6X20 - HEX 		- 4
PE
 Enquire
023 00RA055
NUT - M6 - LOCKING - HEX 		- 2
PE
 Enquire
