18 - Brakes - 18.6 - Brake Disc Cooling Rear

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 18 - BRAKES - 18.6 - BRAKE DISC COOLING REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15CA098RP ASSY INLET DUCT RBD RH $15,954.81 To Order
Photo Part No Description Price (each) Stock
15CA087RP ASSY SUPPORT LEG TWIN RBD LH $503.52 To Order
Photo Part No Description Price (each) Stock
15CA096RP ASSY SUPPORT LEG TWIN RBD RH $463.23 To Order
Photo Part No Description Price (each) Stock
15CA151RP PLATE BACKING BRAKE DUCT RR RH $206.19 To Order
Photo Part No Description Price (each) Stock
15BA131RP PLATE BACKING BRAKE DUCT RR LH Enquire To Order
15CA154RP PLATE BACKING BRAKE DUCT RR LH $221.54 To Order
Photo Part No Description Price (each) Stock
15CA120RP DEFLECTOR PLATE RBD LH $4,790.17 To Order
Photo Part No Description Price (each) Stock
15CA121RP DEFLECTOR PLATE RBD RH $4,790.17 To Order
Photo Part No Description Price (each) Stock
15CA123RP TURNING VANE RBD RH $4,282.60 To Order
Photo Part No Description Price (each) Stock
15CA122RP TURNING VANE RBD LH $4,282.60 To Order
Photo Part No Description Price (each) Stock
15CA092RP ASSY SUPPORT LEG SINGLE RBD RH $382.67 To Order
Photo Part No Description Price (each) Stock
15CA088RP ASSY SUPPORT LEG SINGLE RBD LH $342.38 To Order
Photo Part No Description Price (each) Stock
15CA127RP CALIPER BRACKET RBD RH $402.81 To Order
Photo Part No Description Price (each) Stock
15CA126RP CALIPER BRACKET RBD LH $402.81 To Order
Photo Part No Description Price (each) Stock
15CA097RP ASSY INLET DUCT RBD LH $15,954.81 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
15CA136RP K NUT M5 X 0.8 $5.70 To Order
Photo Part No Description Price (each) Stock
00RA521 SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 Enquire To Order
Photo Part No Description Price (each) Stock
00RC103 WASHER - M5X10 Enquire To Order

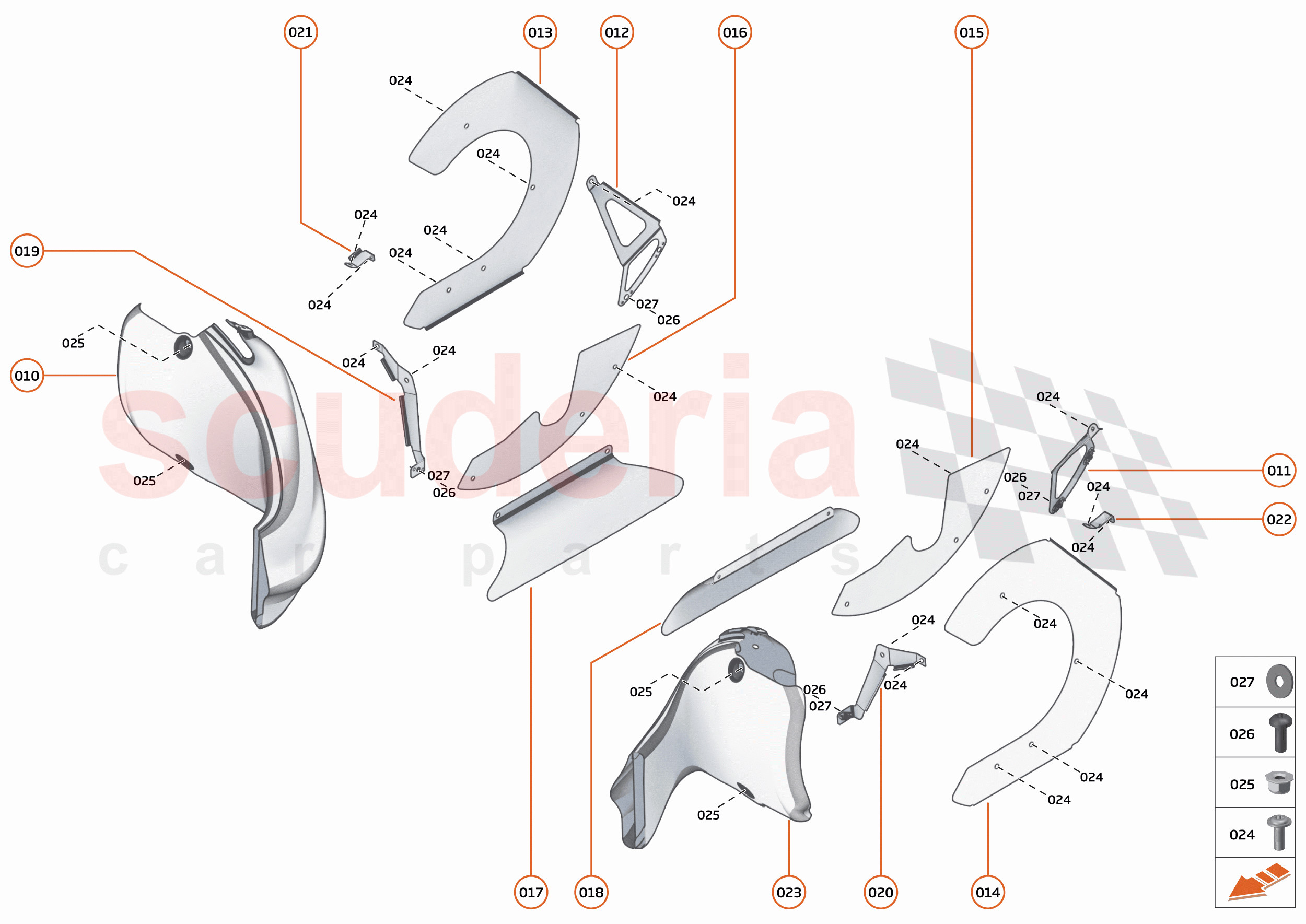

18 - BRAKES - 18.6 - BRAKE DISC COOLING REAR of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15CA098RP
ASSY INLET DUCT RBD RH 		$15,954.81 1
TO
011 15CA087RP
ASSY SUPPORT LEG TWIN RBD LH 		$503.52 1
TO
012 15CA096RP
ASSY SUPPORT LEG TWIN RBD RH 		$463.23 1
TO
013 15CA151RP
PLATE BACKING BRAKE DUCT RR RH 		$206.19 1
TO
014 15BA131RP
PLATE BACKING BRAKE DUCT RR LH 		- 1
PE
 Enquire
014 15CA154RP
PLATE BACKING BRAKE DUCT RR LH 		$221.54 1
TO
015 15CA120RP
DEFLECTOR PLATE RBD LH 		$4,790.17 1
TO
016 15CA121RP
DEFLECTOR PLATE RBD RH 		$4,790.17 1
TO
017 15CA123RP
TURNING VANE RBD RH 		$4,282.60 1
TO
018 15CA122RP
TURNING VANE RBD LH 		$4,282.60 1
TO
019 15CA092RP
ASSY SUPPORT LEG SINGLE RBD RH 		$382.67 1
TO
020 15CA088RP
ASSY SUPPORT LEG SINGLE RBD LH 		$342.38 1
TO
021 15CA127RP
CALIPER BRACKET RBD RH 		$402.81 1
TO
022 15CA126RP
CALIPER BRACKET RBD LH 		$402.81 1
TO
023 15CA097RP
ASSY INLET DUCT RBD LH 		$15,954.81 1
TO
024 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 12
PE
 Enquire
025 15CA136RP
K NUT M5 X 0.8 		$5.70 -
TO
026 00RA521
SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 		- -
PE
 Enquire
027 00RC103
WASHER - M5X10 		- 2
PE
 Enquire
