10 - Closures Ancillaries - 10.2 - Door Hardware

McLaren Senna GTR

Find Your Part

McLaren Senna GTR - 10 - CLOSURES ANCILLARIES - 10.2 - DOOR HARDWARE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15AD251CP DOOR HANDLE LH $59.94 To Order
15AC405CP DOOR HANDLE - LH Enquire To Order
Photo Part No Description Price (each) Stock
13A4087CP SWITCH - DOOR RELEASE - PUSH BUTTON $100.68 To Order
Photo Part No Description Price (each) Stock
00RC053 WASHER - M6X2.0MM Enquire To Order
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
00RL009 TY-FAST PLATFORM-750-0-C Enquire To Order
Photo Part No Description Price (each) Stock
15AD252CP DOOR HANDLE RH $59.94 To Order
15AC406CP DOOR HANDLE - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA641 ROD END - GAS STRUT Enquire To Order
Photo Part No Description Price (each) Stock
15AC864CP LOWER GAS STRUT DOOR Enquire To Order
Photo Part No Description Price (each) Stock
15AC072CP BRACKET - GAS STRUT - FRONT - LH $198.27 To Order
Photo Part No Description Price (each) Stock
15AC073CP BRACKET - GAS STRUT - FRONT - RH $198.27 To Order
Photo Part No Description Price (each) Stock
00RA152 SCREW CAP - M6X25 - HEX SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
15AB224CP MOUNTING PLATE - DOOR BLADE $65.98 To Order
Photo Part No Description Price (each) Stock
00RA311 Screw - M6x16 - Hex Socket Enquire To Order
Photo Part No Description Price (each) Stock
15AD223CP STONE PROTECTION - DOOR - LH $101.53 To Order
Photo Part No Description Price (each) Stock
15AD224CP STONE PROTECTION - DOOR - RH $101.53 To Order
Photo Part No Description Price (each) Stock
15AC918CP ACCESS DOOR PANEL - REAR - LH $214.14 To Order
Photo Part No Description Price (each) Stock
15AC919CP ACCESS DOOR PANEL - REAR - RH $214.14 To Order
Photo Part No Description Price (each) Stock
00RC118 WASHER - M6X14.4X2.4 - BLACK Enquire To Order
15AC336CP WASHER SS M6X12X2 $7.66 To Order
Photo Part No Description Price (each) Stock
15AC841CP MOUNT - GAS STRUT - LH $516.52 To Order
15AC069CP BRACKET - DOOR GAS STRUT - LH Enquire To Order
Photo Part No Description Price (each) Stock
15AC071CP BRACKET - DOOR GAS STRUT - RH $483.77 To Order
15AC842CP MOUNT - GAS STRUT - RH $516.52 To Order
Photo Part No Description Price (each) Stock
00RA640 LOW HD SHOULDER SCREW - M5X0.8X22 SS A2 Enquire To Order
Photo Part No Description Price (each) Stock
00RL008 CABLE TIE-SF100-18X Enquire To Order
Photo Part No Description Price (each) Stock
15AC844CP LOW HD SHOULDER SCREW FEMALE $37.67 To Order

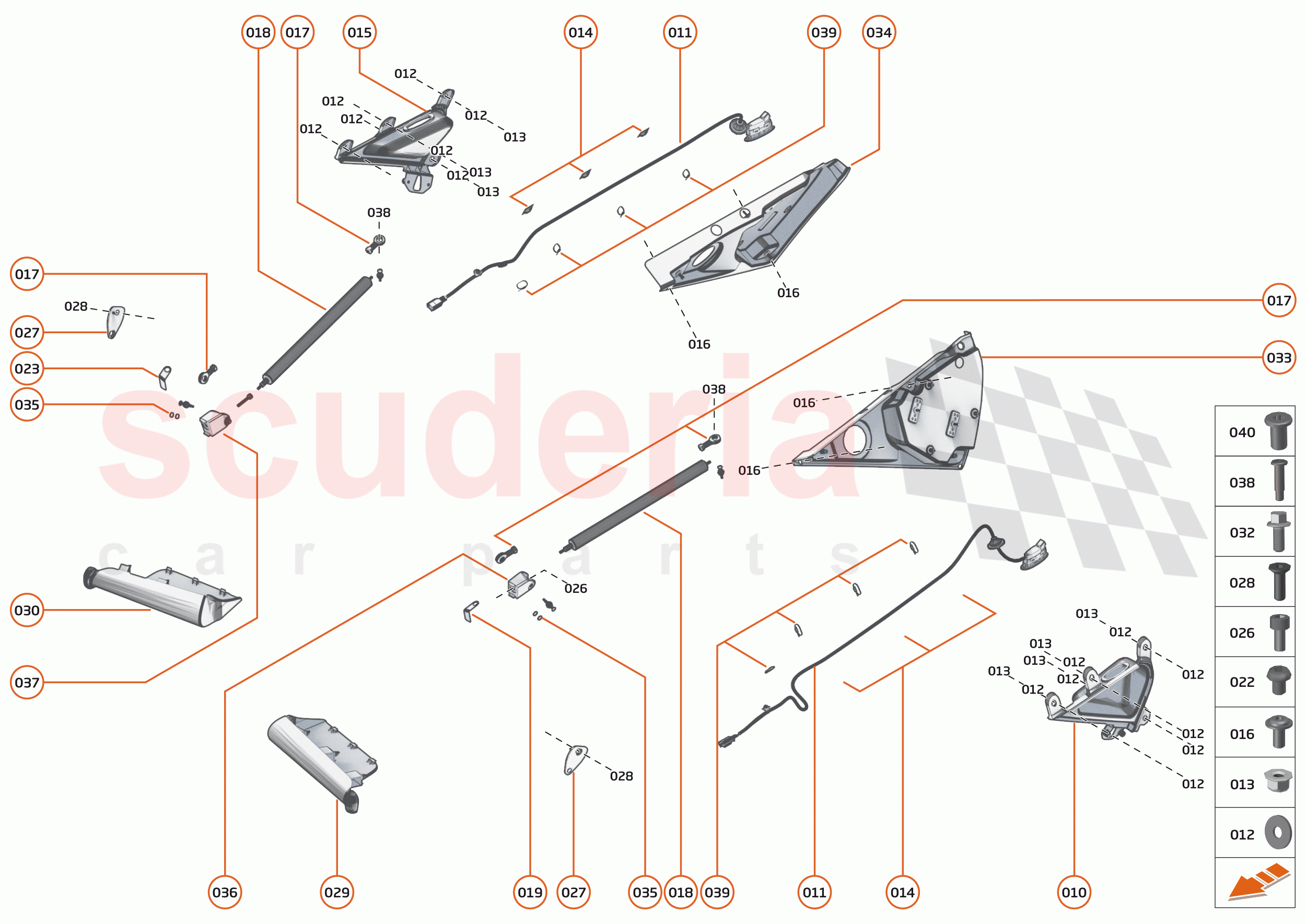

10 - CLOSURES ANCILLARIES - 10.2 - DOOR HARDWARE of McLaren McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15AD251CP
DOOR HANDLE LH 		$59.94 1
TO
010 15AC405CP
DOOR HANDLE - LH 		- 1
PE
 Enquire
011 13A4087CP
SWITCH - DOOR RELEASE - PUSH BUTTON 		$100.68 1
TO
012 00RC053
WASHER - M6X2.0MM 		- 4
PE
 Enquire
012 00RC017
WASHER - M5X15X1.2 		- 8
PE
 Enquire
013 00RA555
NUT - M5X0.8 - HEX LOCKED 		- 4
PE
 Enquire
014 00RL009
TY-FAST PLATFORM-750-0-C 		- 3
PE
 Enquire
015 15AD252CP
DOOR HANDLE RH 		$59.94 1
TO
015 15AC406CP
DOOR HANDLE - RH 		- 1
PE
 Enquire
016 00RA398
SCREW - SOCKET HEAD - FLANGED - M5X10 		- 2
PE
 Enquire
017 00RA641
ROD END - GAS STRUT 		- 2
PE
 Enquire
018 15AC864CP
LOWER GAS STRUT DOOR 		- 1
PE
 Enquire
019 15AC072CP
BRACKET - GAS STRUT - FRONT - LH 		$198.27 1
TO
023 15AC073CP
BRACKET - GAS STRUT - FRONT - RH 		$198.27 1
TO
026 00RA152
SCREW CAP - M6X25 - HEX SOCKET 		- 1
PE
 Enquire
027 15AB224CP
MOUNTING PLATE - DOOR BLADE 		$65.98 2
TO
028 00RA311
Screw - M6x16 - Hex Socket 		- 2
PE
 Enquire
029 15AD223CP
STONE PROTECTION - DOOR - LH 		$101.53 1
TO
030 15AD224CP
STONE PROTECTION - DOOR - RH 		$101.53 1
TO
033 15AC918CP
ACCESS DOOR PANEL - REAR - LH 		$214.14 1
TO
034 15AC919CP
ACCESS DOOR PANEL - REAR - RH 		$214.14 1
TO
035 00RC118
WASHER - M6X14.4X2.4 - BLACK 		- 2
PE
 Enquire
035 15AC336CP
WASHER SS M6X12X2 		$7.66 2
TO
036 15AC841CP
MOUNT - GAS STRUT - LH 		$516.52 1
TO
036 15AC069CP
BRACKET - DOOR GAS STRUT - LH 		- 1
PE
 Enquire
037 15AC071CP
BRACKET - DOOR GAS STRUT - RH 		$483.77 1
TO
037 15AC842CP
MOUNT - GAS STRUT - RH 		$516.52 1
TO
038 00RA640
LOW HD SHOULDER SCREW - M5X0.8X22 SS A2 		- -
PE
 Enquire
039 00RL008
CABLE TIE-SF100-18X 		- -
PE
 Enquire
040 15AC844CP
LOW HD SHOULDER SCREW FEMALE 		$37.67 -
TO
